9. Change the default WAN Port Address group IP Address for the Mounds View LAN by clicking on the IP
Address text box and back spacing thru the default address. Enter WAN IP Address 200.2.9.1 for logical
WAN 1.
10. Change the default Remote Address group IP Address for logical WAN 1 by clicking on the IP Address
text box and back spacing thru the default address. Enter the Remote IP Address of 200.2.9.2.
11. Click on the Save Changes button to save the logical WAN 1 configuration.
12. Click on the OK button to return to the Main menu.

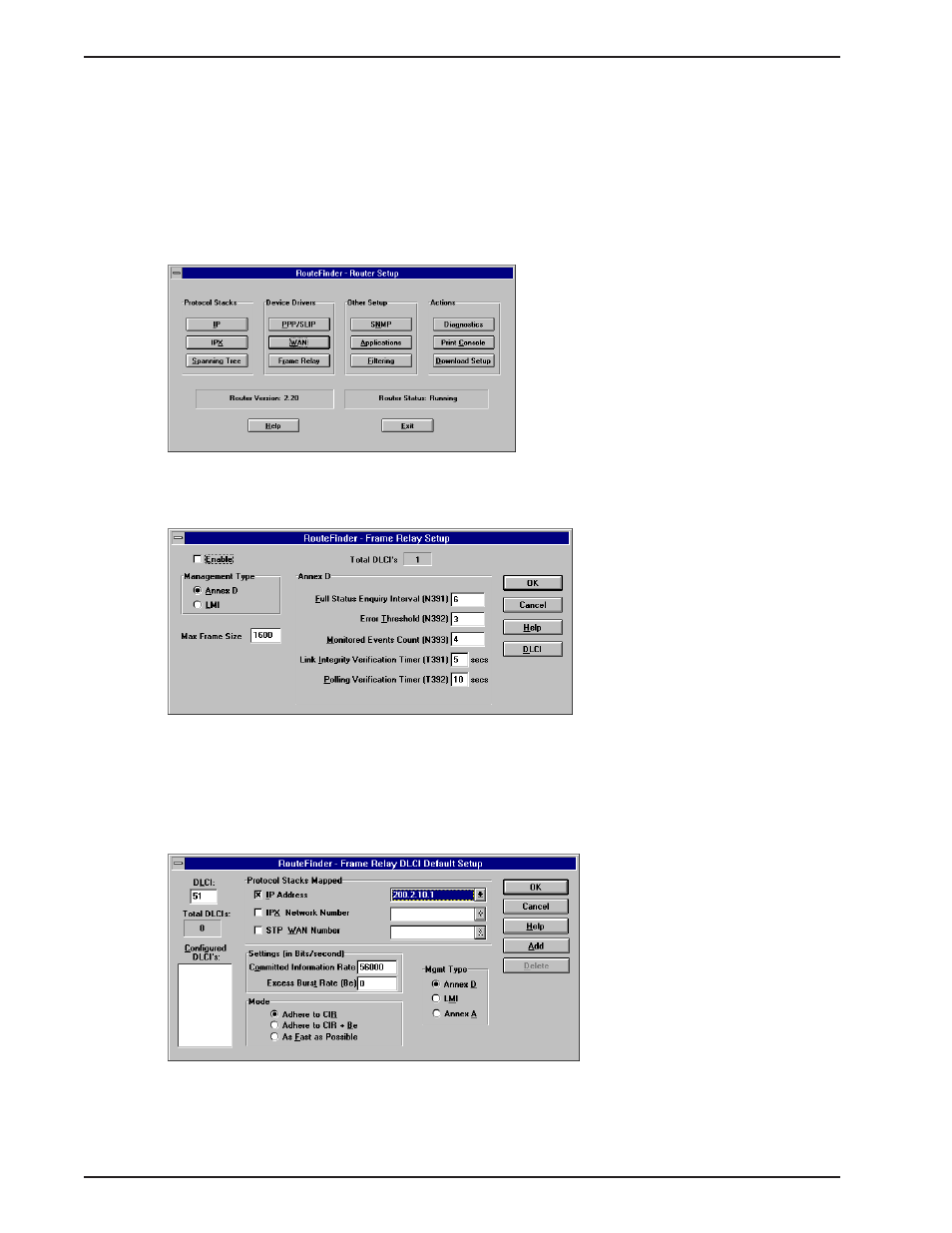

13. Click on the Frame Relay button to display the Frame Relay Setup dialog box.
14. Select the Management Type that corresponds to what was provided by your Frame Relay network
provider at the time of subscription. In this example lets assume that it is Annex D. So nothing has to be
done in this dialog box.
15. Click on the DLCI button to display the Frame Relay DLCI dialog box.
16. To map DLCI 50 to logical WAN 1, click on the DLCI numeric dialog box and enter the number 50. When
the number 50 is entered, all the other groups in the dialog box become active.
