To add a Spanning Tree filter, the Add Spanning Tree Filter dialog box is displayed that lets you add a new
entry to the database.
Ethernet Address
The MAC (Ethernet) address to which we need to apply this filter.
Physical Port
Defines the physical port on which the filtering is to be performed.
Filter Type
Filter on Destination Address - Drop all packets whose destination MAC address matches the Ethernet
address entered in the above field.
Filter on Source Address - Drop all packets whose source MAC address matches the Ethernet address
entered in the above field.
Forward on Destination Address - Forward all packets whose destination MAC address matches the Ethernet
address entered in the above field.
Forward on Source Address - Forward all packets whose source MAC address matches the Ethernet address
entered in the above field.
Note: If a packet is received with both its source address and destination address in the filtering database,
the action specified on the source address will be performed.
5.2.15
Diagnostics

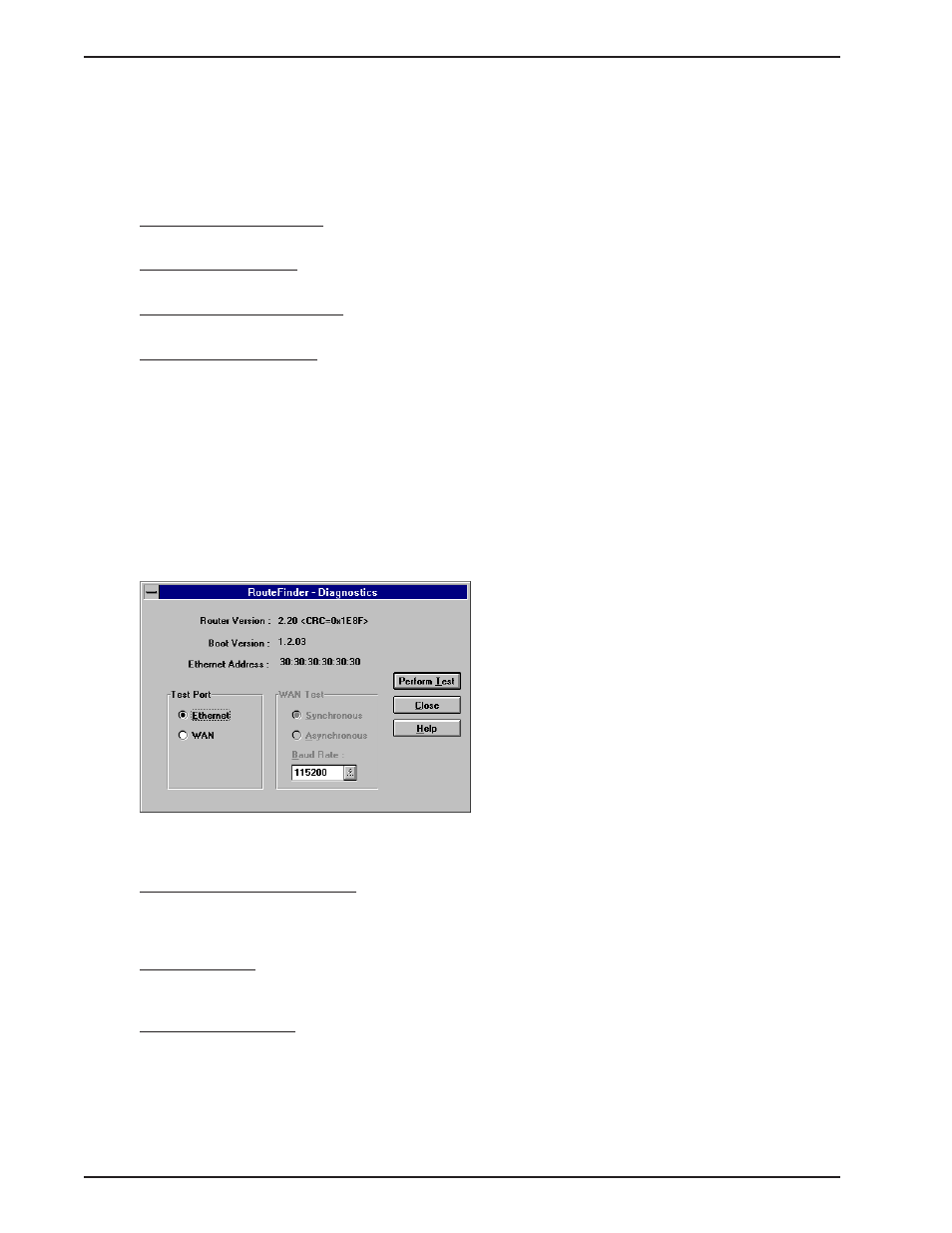

RouteFinder Setup program lets you perform various hardware tests on the LAN and WAN links. The
Diagnostic dialog box is displayed by clicking on the Diagnostic button in the Router Setup dialog box.
Diagnostic tests are performed if the Communication type of the Local Port configuration is set to COM Port.
If the Local Port configuration is set for IP, no diagnostic test are performed by the RouteFinder.
When this dialog box is closed, the router will reboot.
Router Version and CRC
This field displays the version of RouteFinder Firmware that is running. It also displays the Checksum (CRC)
of stored firmware.
Boot Version
This field displays the version of Boot Code that is present in the target.
Ethernet Address
This is the Ethernet Network interface address of RouteFinder’s Ethernet Port. This field can not be modified.
