Multi-Tech Systems MTASR1-100 - Manual (Page 165)

Chapter 8 - Router Management
165

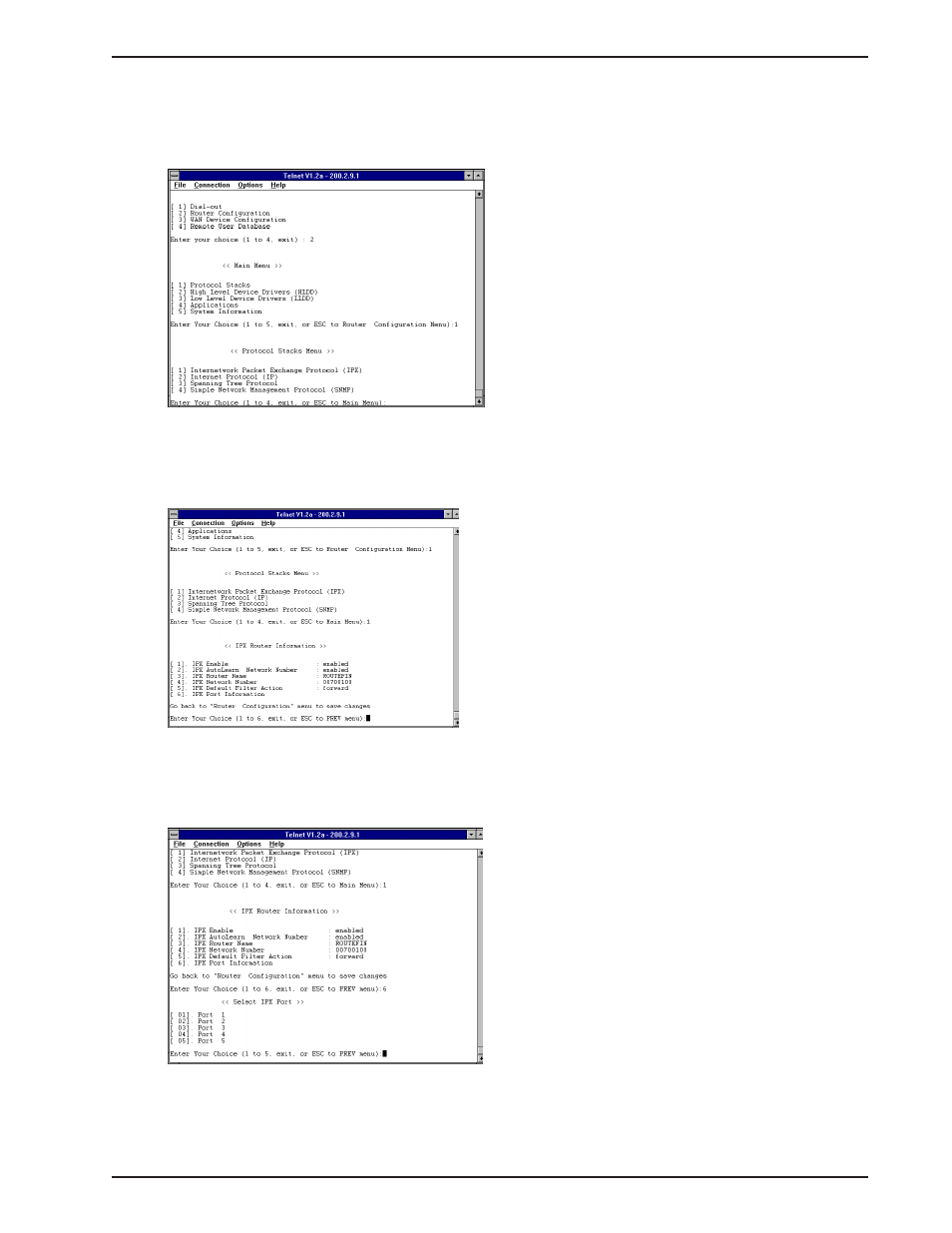

The Protocol Stack Menu is displayed with options for IPX, IP, Spanning Tree, SNMP, and returning to the
Main Menu. To select a option, choose the number of the option and hit the Enter key. For example, if you
wanted to look at IPX routing information, enter number 1 and hit the Enter key.
The IPX Router Information menu is displayed with options to enable or disable IPX, AutoLearn, change the
Router Name, Network Number, etc.
To view or change for example the parameters on a port, choose option 6 (IPX Port Information) and the
Select IPX Port menu is displayed.
Select a port form the menu, for example I selected port 2 and the IPX Port 2 Setup menu is displayed.
