MTASR1-100 Owner’s Manual
82
5.3 Download Default Setup

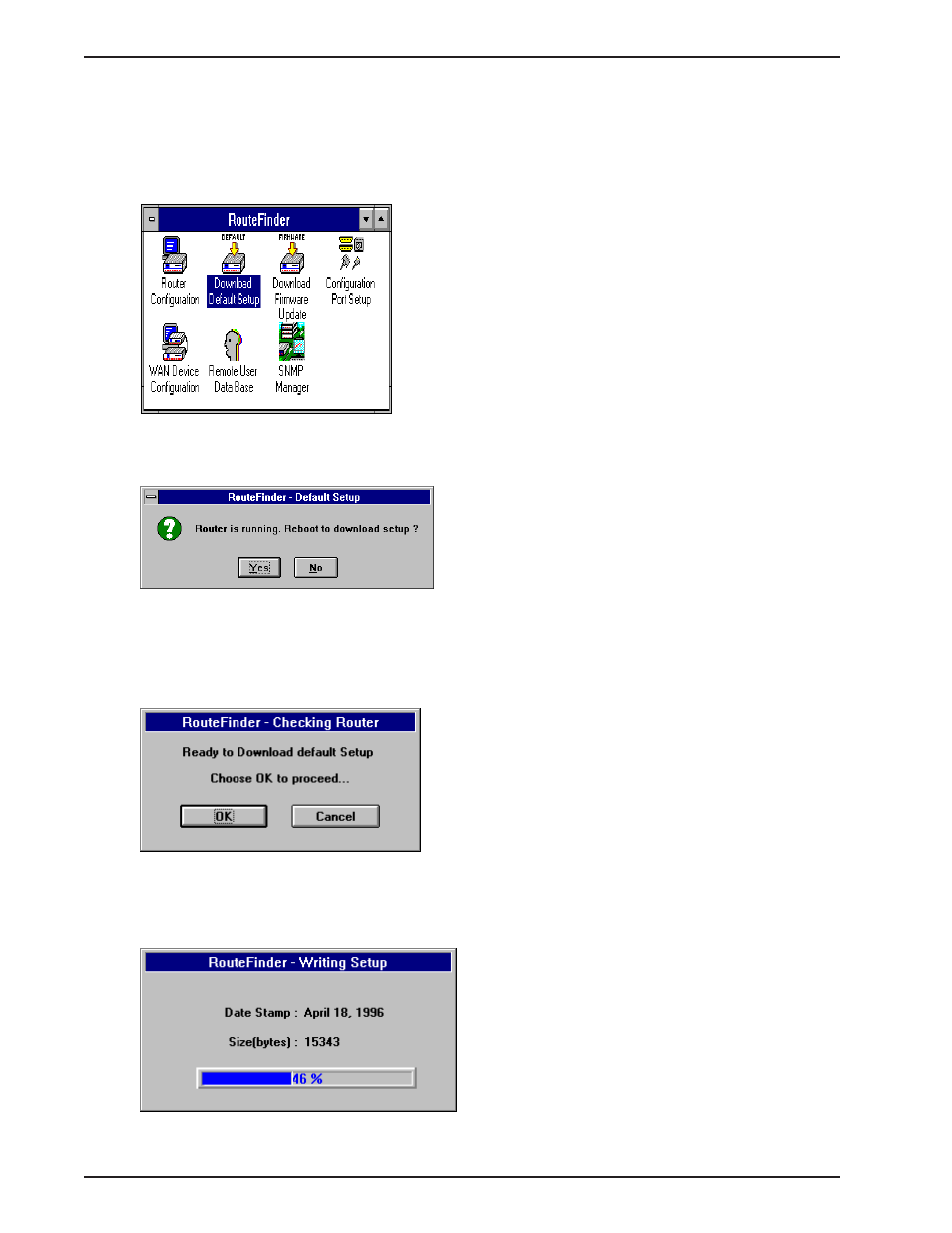

To download a default configuation to the RouteFinder, double click on the Download Default Setup icon. In
case the FAIL LED does not go off after a long time, then you should try to do a Download Default Setup and
Download Firmware Update.
The "Router is running. Reboot to download setup?" dialog box is displayed.
Click on Yes to download setup. Click on No to return to the RouteFinder Program Group.
The "Looking for response from Router" dialog box is displayed only for a brief time.
The Checking Router dialog box is displayed.
The Setup utility is "ready to download the default setup Choose OK to proceed." Click on OK to proceed.
The Writing Setup dialog box is displayed while the setup configuration is written to the RouteFinder.
