Chapter 6 - Configuration Examples
127
With a dial-up line and an async modem, the Mode needs to be Asynchronous (the default) and the
Connection Method needs to be either Answering or Dialing. For the St. Louis site it needs to be Dialing.
With a leased line, the Mode needs to be Synchronous and the Connection Method needs to be Direct
Connect/Leased Line.
For a dial-up connection, perform steps 14,15,and 16 and then skip to step 18.
For a leased line connection, skip to step 17.
14. Change the Connection Method to Dialing by clicking on the Dialing check box.

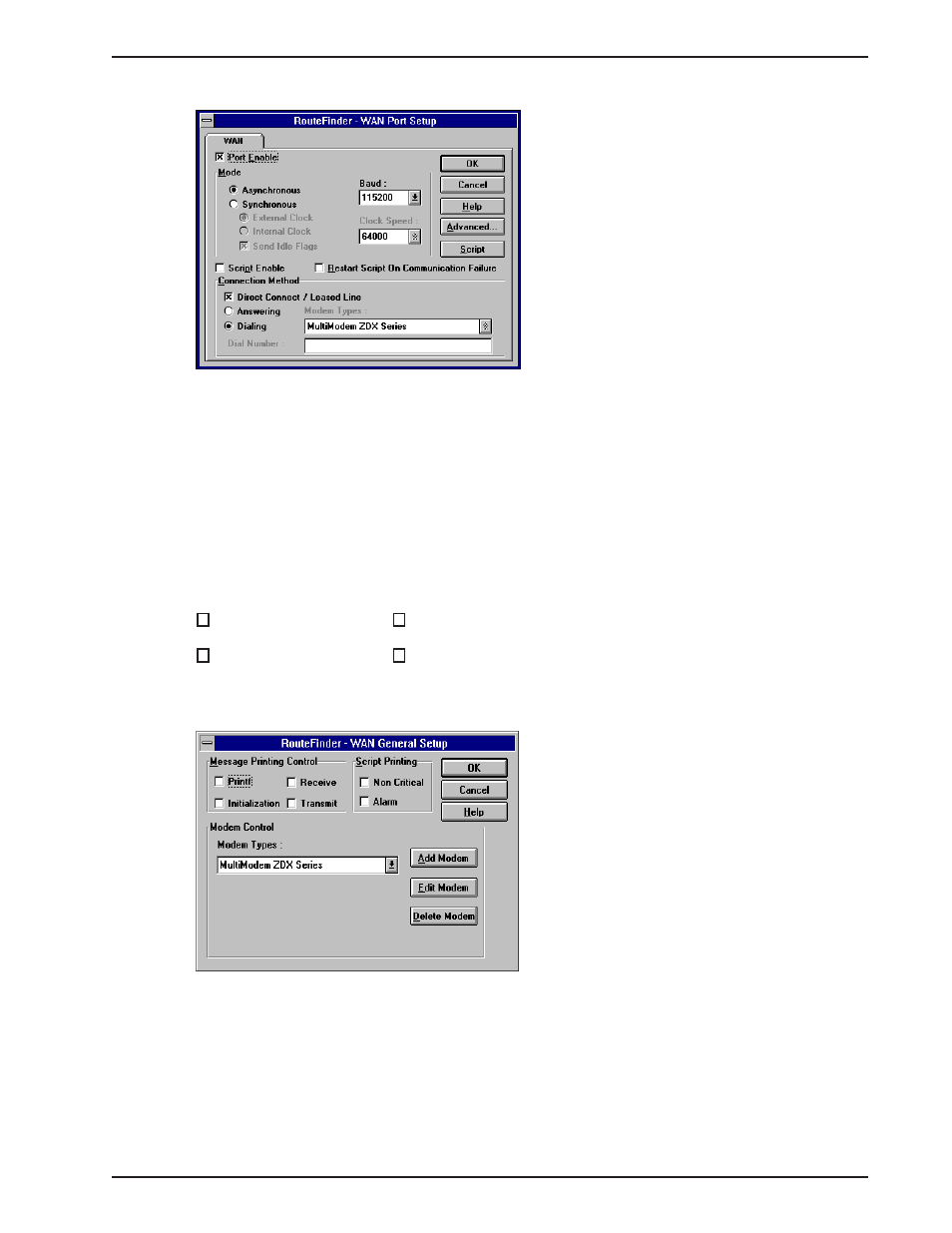

For the St. Louis LAN, the WAN Port Setup dialog box should have the following fields checked:
x Port Enable x Asynchronous
x 115200 x Dialing
15. Click on the Advanced button to display the WAN General Setup dialog box.
16. Click on the Modem Types drop down text box and click on your modem type. If your WAN device is not
listed in this text box, click on the Add Modem button to display the Modem Types dialog box.
