MTASR1-100 Owner’s Manual
58
Add A New Network

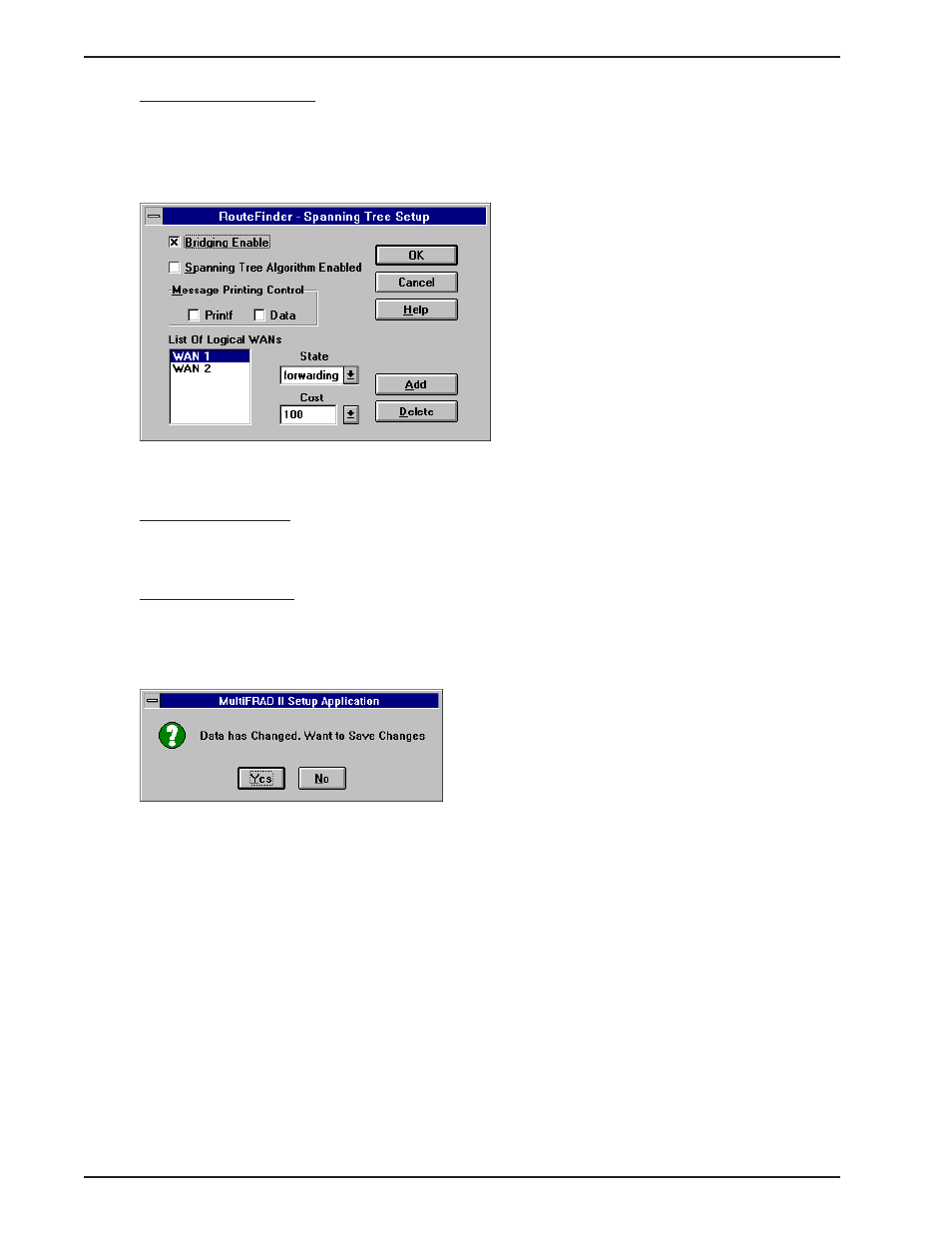

If Frame Relay is enabled, then it is possible to add a new network. To add a new network, click on the Add
button in the Spanning Tree Setup dialog box. The List of Logical WANs adds a new network number to the
list.
Note: 16 networks it the maximum number of networks.
Delete a Network
If Frame Relay is enabled, then it is possiblle to delete a new network. An existing network can be deleted by
selecting it from the List of Logical WANs and clicking on the Delete button.
Modify a Network
To modify a Frame Relay network, click on the WAN number in the List of Logical WANs and modify the
required parameter. Then, select any other WAN number in the List of Logical WANs and a message box
appears "Data has Changed. Want to Save Changes" querying you whether you want to save the changes.
