MTASR1-100 Owner’s Manual
42
Common Procedure

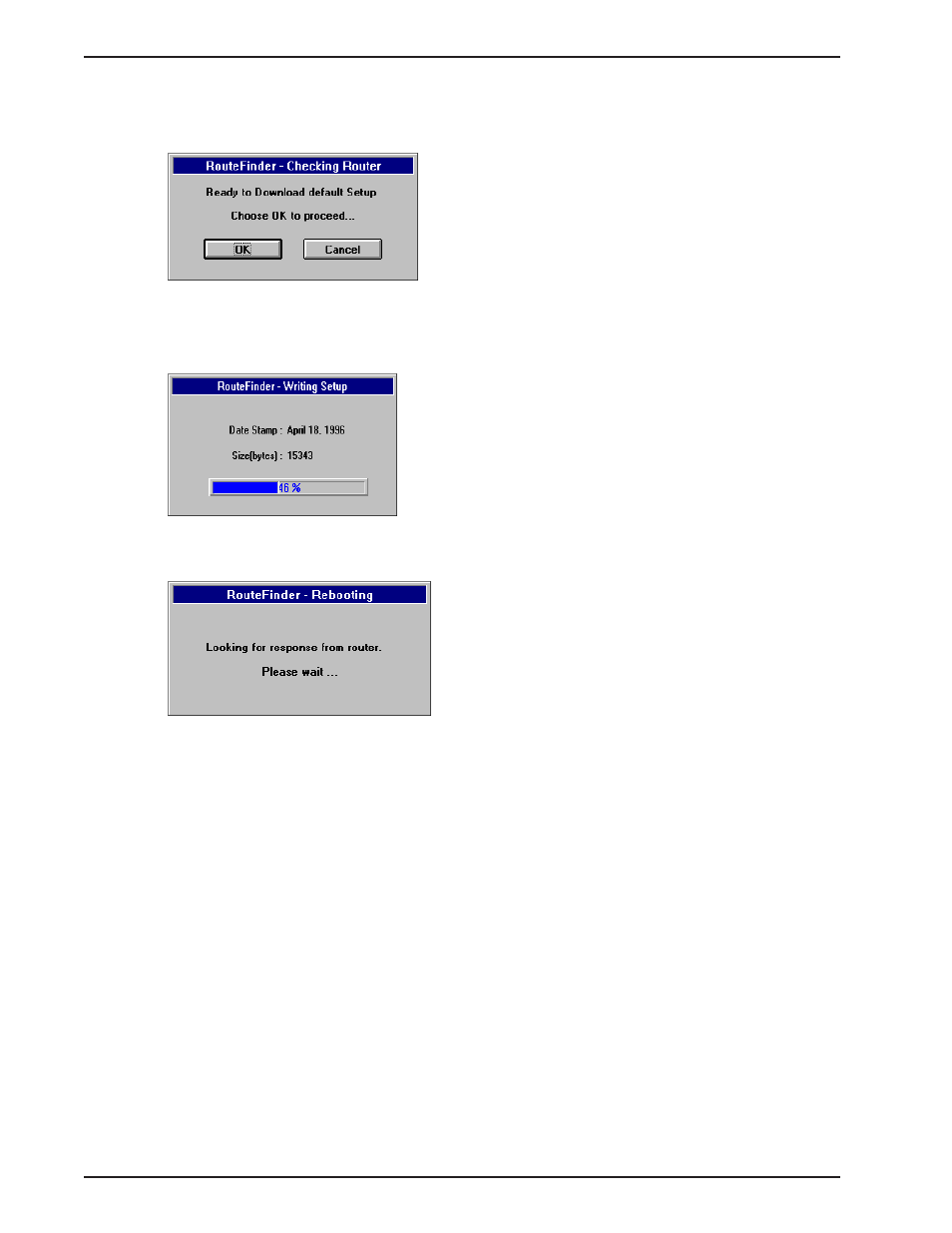

52 The Checking Router dialog box is displayed.
The Setup utility is "Ready to Download default setup Choose OK to proceed." Click on OK to proceed.
53 Writing setup dialog box is displayed as the setup configuration is written to the RouteFinder 100 .
54 After the setup is written to the RouteFinder 100 , the unit is rebooted.
55 Check to ensure that the FAIL LED on the RouteFinder 100 is Off after the download is complete.
56 You are returned to your Progam Manager where the RouteFinder 100 Program Group and Program Item
(the Windows icons) have been created.
Your RouteFinder 100 is fully operational at this time.
