Chapter 4 - Software Loading and Configuration
35

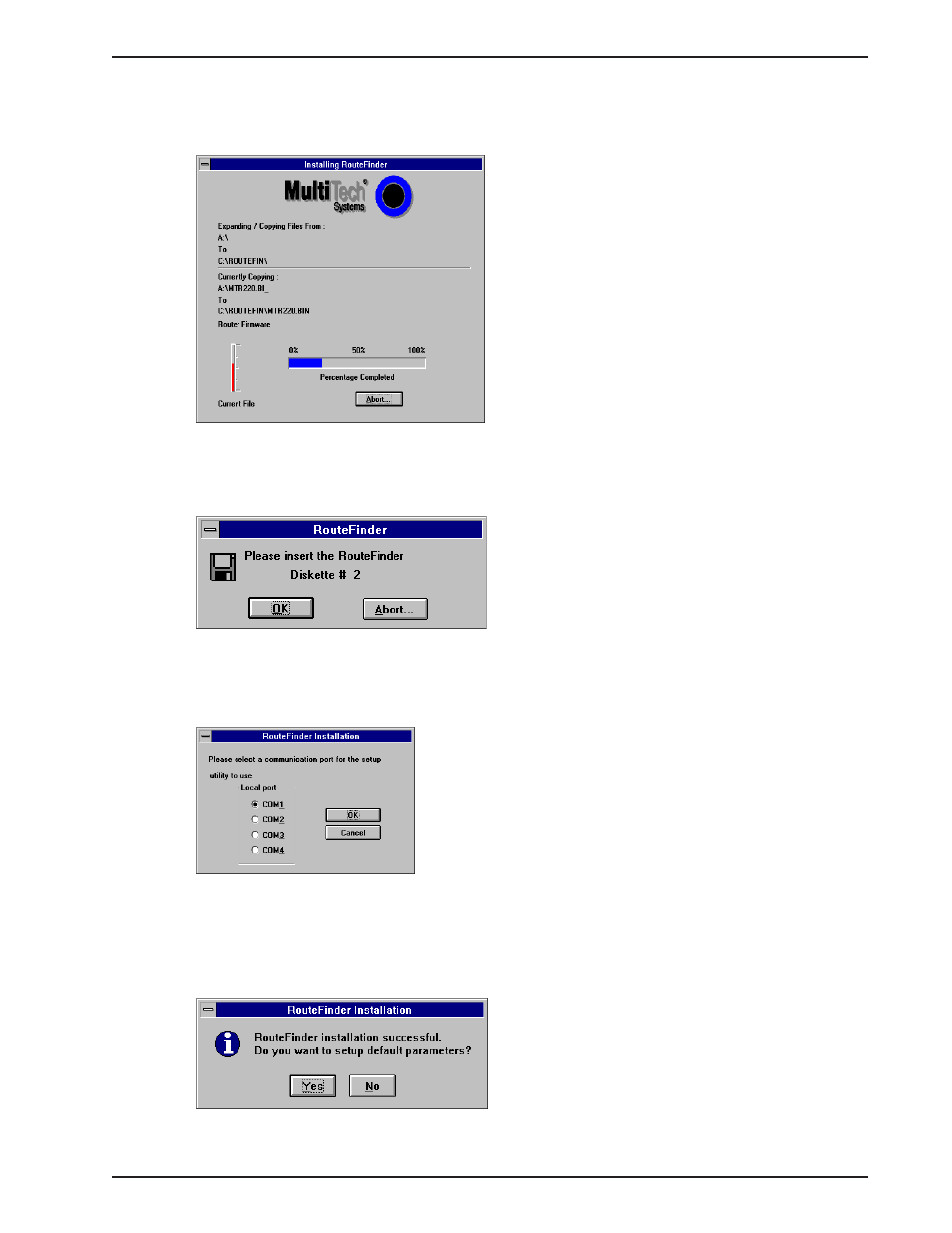

9 The Expanding/Copying Files From: dialog box is displayed. You can view the progress of the installation
from this dialog box. You can click on Abort at any time to cancel the install.
10 When the Percentage Completed reaches approximately 50%, the following display appears. Remove
Disk #1 and insert Disk #2. Click on OK to continue.
11 The RouteFinder 100 Setup Installation dialog box asks "Please select a communication port for the setup
utility to use" dialog box is displayed. In other words, which COM port on your PC is connected to the
Command Port of the RouteFinder
100 .
Select the COM port (COM1,COM2,COM3, or COM4) for the setup utility. The default port is COM1.
Click on OK when you are satisfied with your selection.
12 When the setup installation is successful, a system message is displayed stating "RouteFinder 100 Setup
Installation Successful. Do you want to setup default parameters?"
