GFK-2489 Chapter 3 AP Management 3-5
3
PC Connection and Log-In Procedures

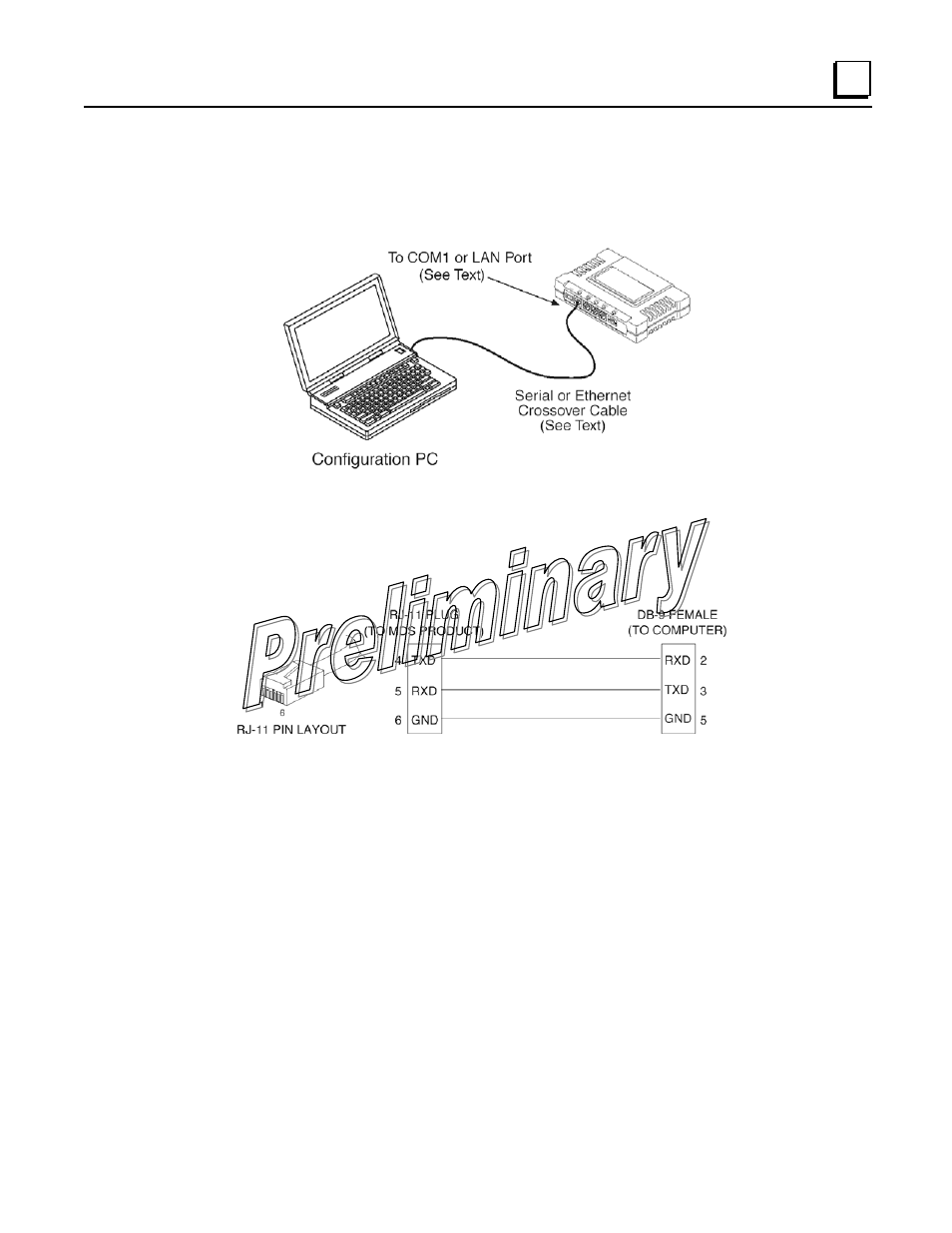

The following steps explain how to access the radio menu. These steps require a PC to be
connected to the COM 1 or LAN port on the radio, as shown below.
Starting a Local Console Session (recommended for first-time users)
1. Connect a serial communications cable between the PC and the COM 1 port on the radio.
If necessary, a cable may be constructed as shown below. Maximum recommended cable
length is 50ft / 15m).
2. Launch a terminal emulation program such as HyperTerminal. The HyperTerminal
program can be accessed on most PCs by selecting Start > Programs > Accessories >
Communications > HyperTerminal.
3. Configure the connection with the following settings:
▪ 19200 bps
▪ 8 bits • no parity
▪ one stop bit (8N1)
▪ hardware flow control disabled
▪ VT100 emulation
The exact parameters given above must be used for console terminal communication.
Improper settings are a common cause of difficulty.
