TeamPoS 3000 XL and XL
2
Installation
D900000145
Issue 3
5-49

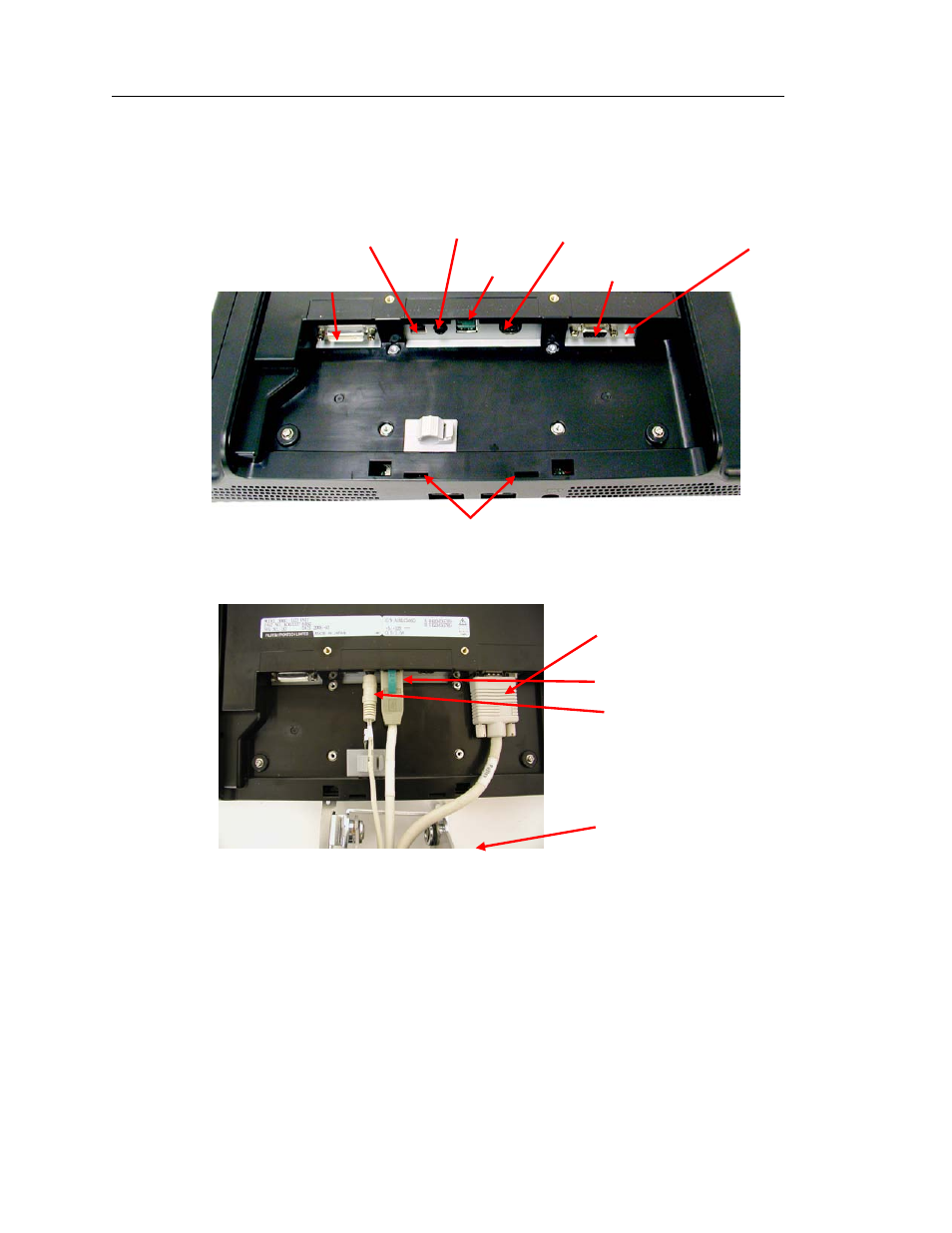

6. Attach the cables to the connectors on the LCD. Connector labels are etched into the
plastic casing of the LCD monitor.
Typical VGA Cabling
VGA (required)
pUSB (required)
Audio (optional)
Mounting Bracket
DVI
VGA
A to B USB for opt.
MSR or Keypad MSR
Audio
pUSB
LCD Power for opt.
power brick
Touch Panel 1-2
Switch
Notches for lower hinge cover
