TeamPoS 3000 XL and XL
2
Maintenance
7-42 Issue 3 D900000145

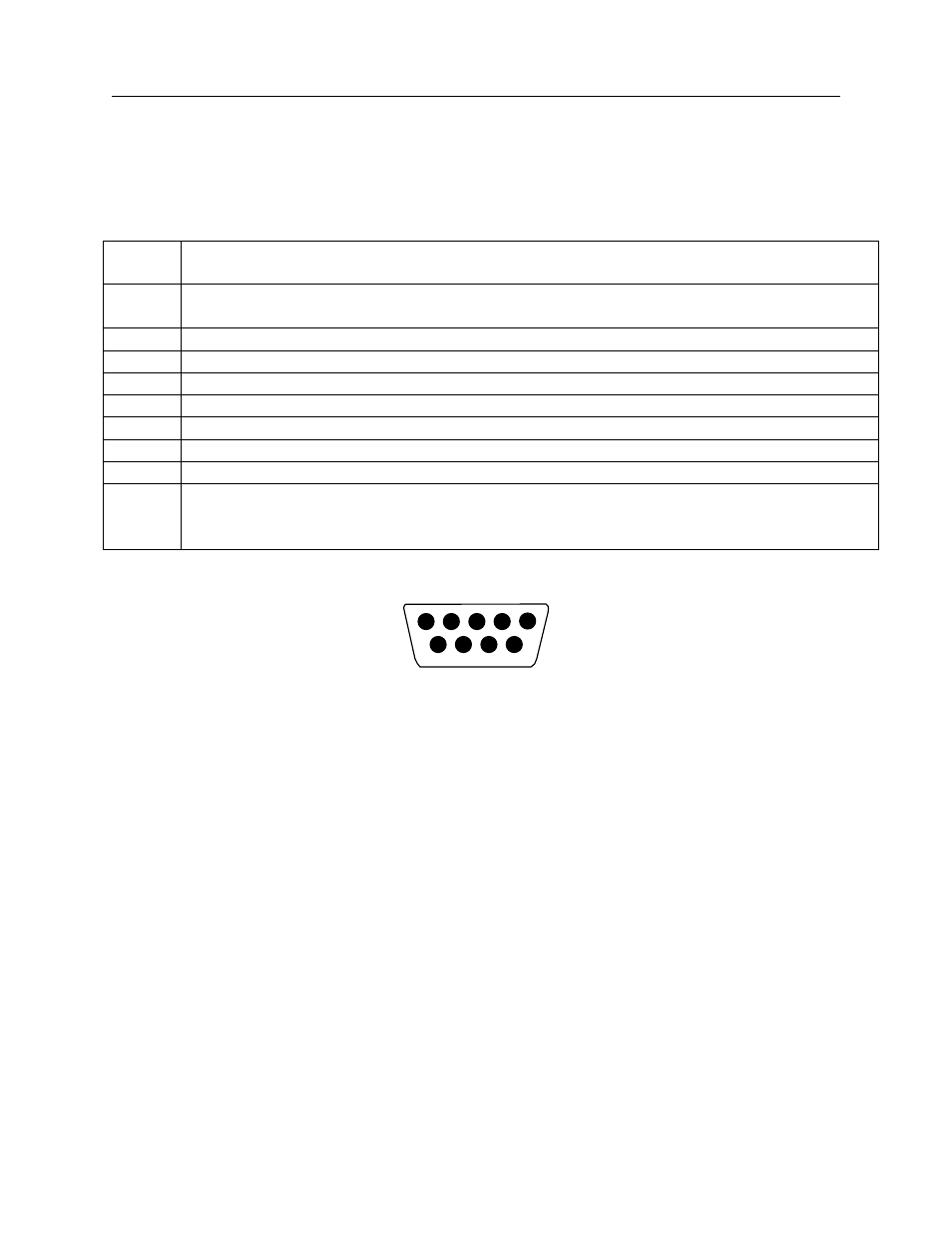

7.9.3.5 Combo Board COM 4 Port Connector Signals
Connector type: Male DB9, (RS-232 port)
Pin
Number COM 4 Pinouts
Default Bold
1 Data Carrier Detect (DCD) = 7-8
NC = 9-10
2 RX
3 TX
4 DTR
5 Ground
6 DSR
7 RTS
8 CTS
9 RI= 1-2
+5V= 3-4 *PIN 9 is determined by the jumpers set on PW4.
+12V= 5-6
1 5
6 9
