I/O boards are connected to the backplane assembly. Refer to the instructions which follow to
identify which connectors support which I/O board.
7.9.1 No I/O Board
Backplane assembly will have two filler plates, a long one and a short one.

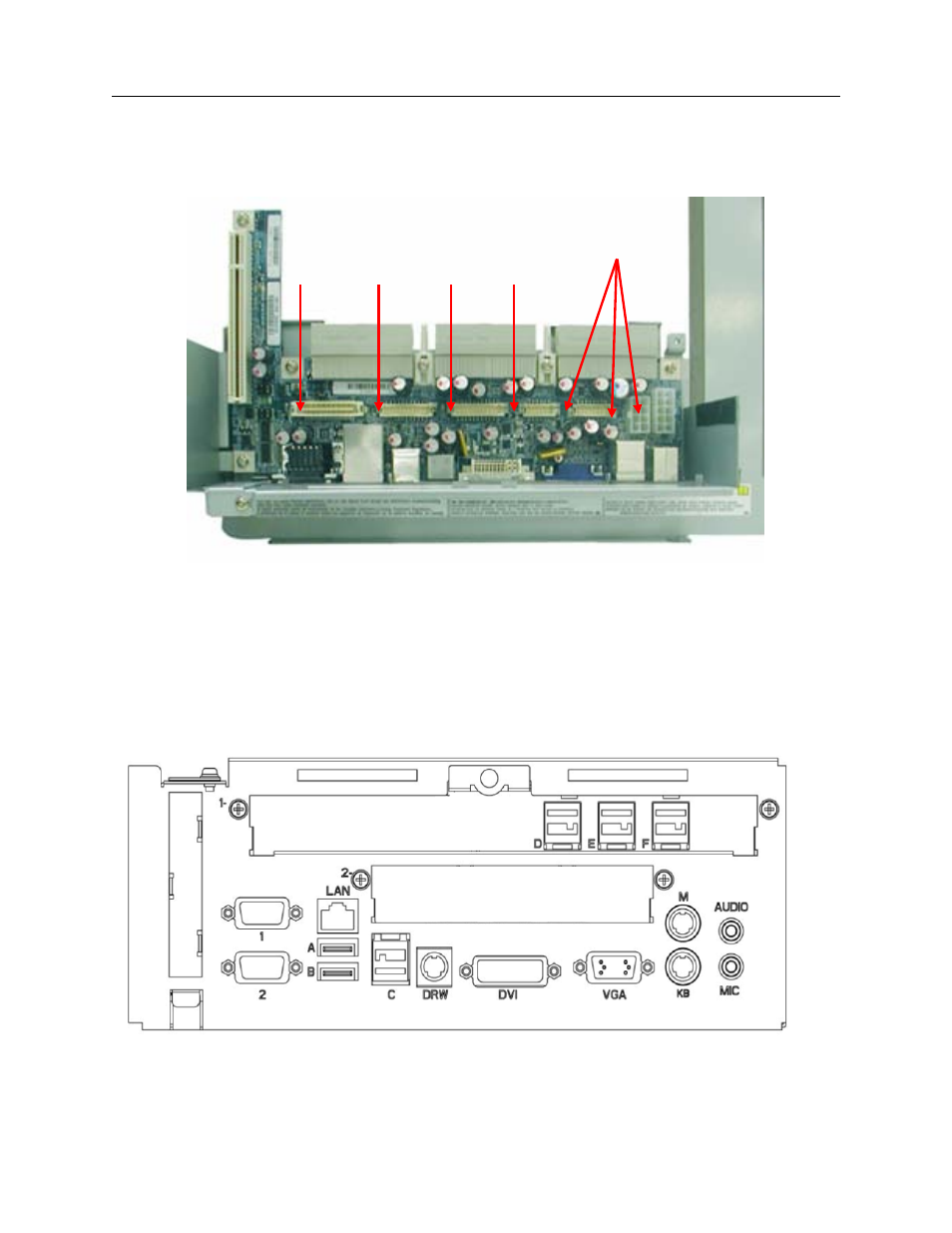

7.9.2 Powered USB I/O Board
PCI Connector
J12
J10
J11
J13
Power Supply
Connectors
