5.19. Installing the Printer I/O Board (DT50 Series only).
The DT 50 Series printer comes without the I/O board installed. The I/O Board is ordered
separately and either installed at the Foothill Ranch facility or in the field.

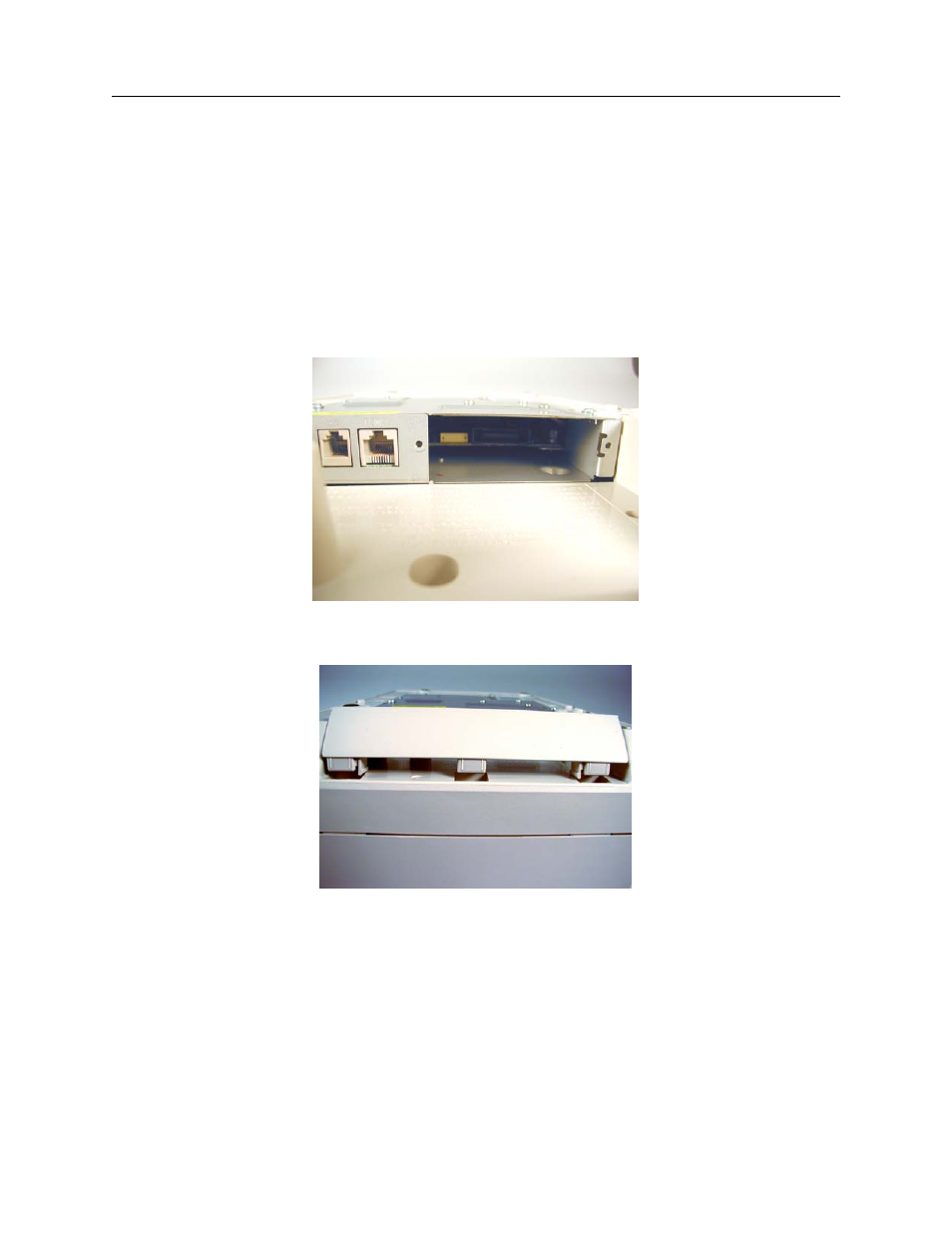

1. Turn printer upside down on a clean dry surface.
2. Remove blanking plate for I/O port if necessary.
3. Remove cosmetic back panel if it interferes with installation.
