1 usb board jumper settings – FUJITSU TeamPoS 3000 XL User Manual
Page 167
TeamPoS 3000 XL and XL
2
Maintenance
7-34
Issue 3
D900000145

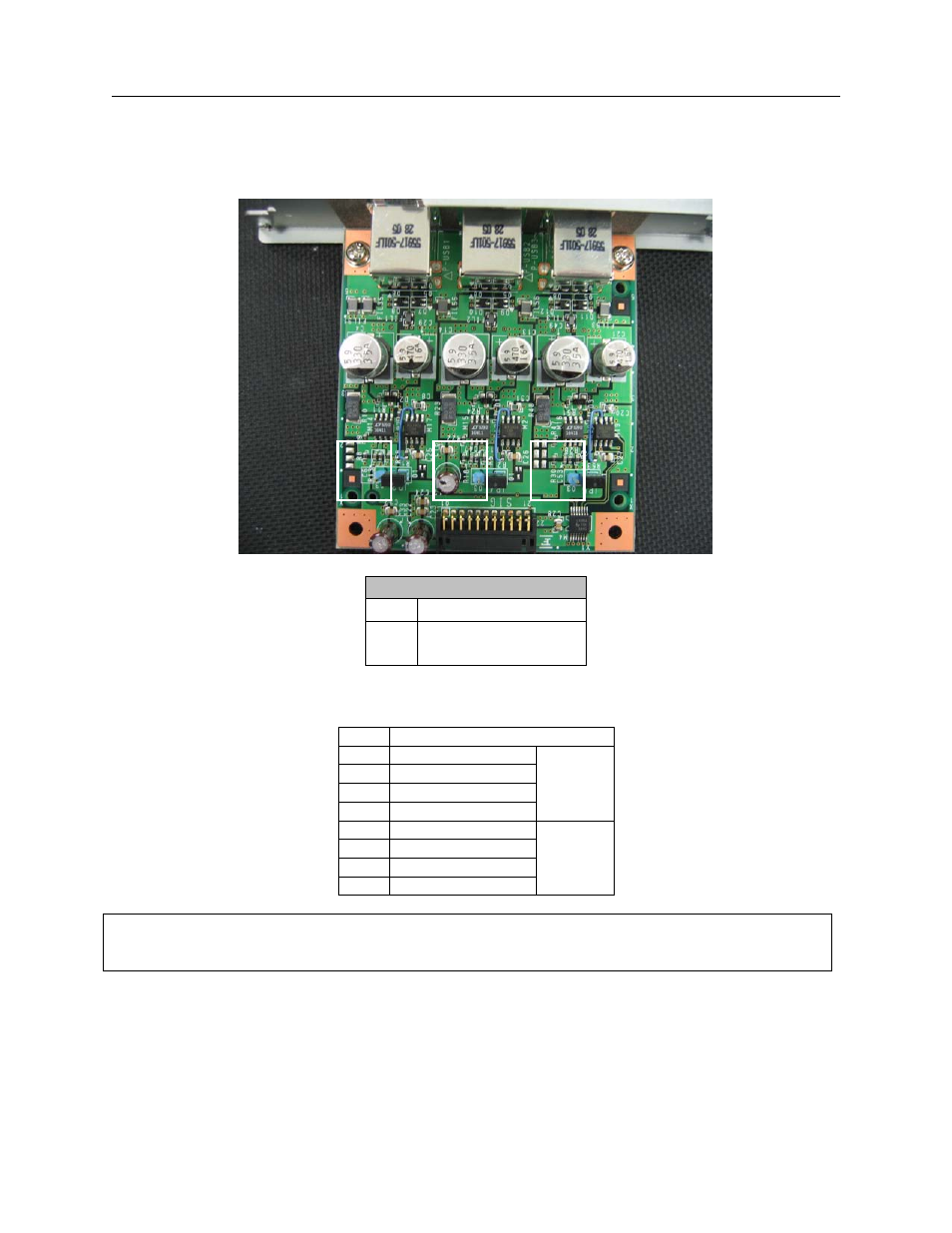

7.9.2.1 USB Board Jumper Settings
JP3, 4 & 5 Power Source
1-2
+5V
2-3
+5VSB (Standby
power always on.
Powered Retail USB connector (12VDC)
Pin #
DC-Out Mode
1
5VDC USB Power
Std. USB
Signals
2
Data -
3
Data +
4
Ground
5
12 VDC PIN Power
12 VDC
Power
6
12 VDC PIN Power
7
12 VDC PIN Power
8
12 VDC PIN Power
Note:The powered USB connector will also accommodate a standard USB connector, which enc
JP3
JP4
JP5
