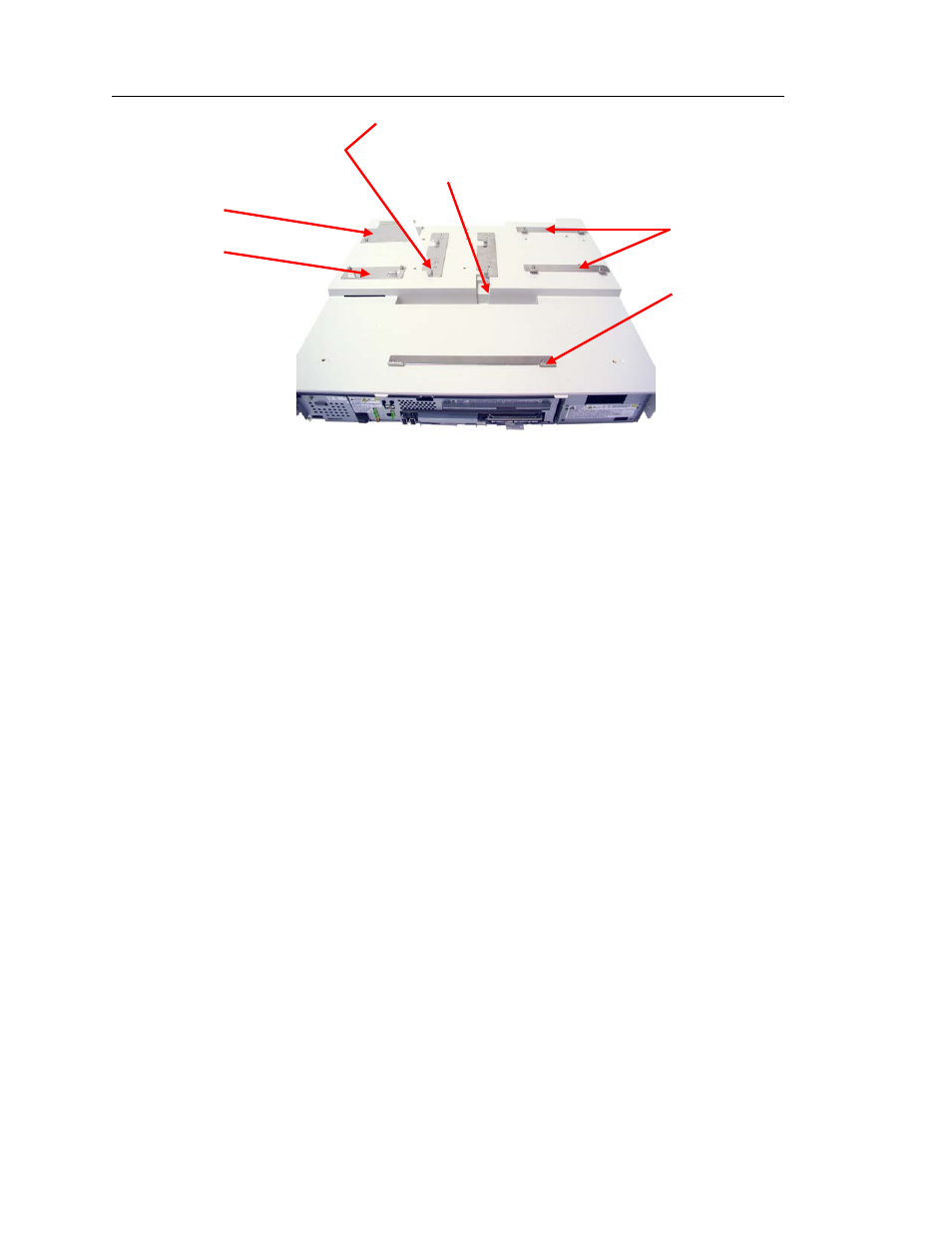

Standard Unit showing
Bracket Configuration for CT10
5.14. Installing the LCD Stands
There are four LCD stands/mounts that can be used with the TeamPoS 3000 XL: single stacked,
dual stacked, single dispersed and VESA.
Stacked LCD Brackets
4 Screws, Pan head phillips,
SEMS, nickel plated M3x0.5 x
8mm
Keyboard Bracket
2 Screws, Flat head, C-sink,
Phillips, nickel plated M3x0.5 x
8mm
CT10 Series Bracket
2 Screws, Pan head, Phillips,
SEMS, nickel plated M3x0.5 x
10mm
Front Filler Bracket
2 Screws, Pan head, Phillips,
SEMS, nickel plated M3x0.5 x
10mm
Narrow Side Filler Bracket
2 Screws, Flat head, C-sink, Phillips, nickel plated M3x0.5 x 8mm
Central Filler Bracket
2 Screws, Flat head, C-sink, Phillips, nickel plated M3x0.5 x 8mm
