TeamPoS 3000 XL and XL

2

Installation

D900000145

Issue 3

5-19

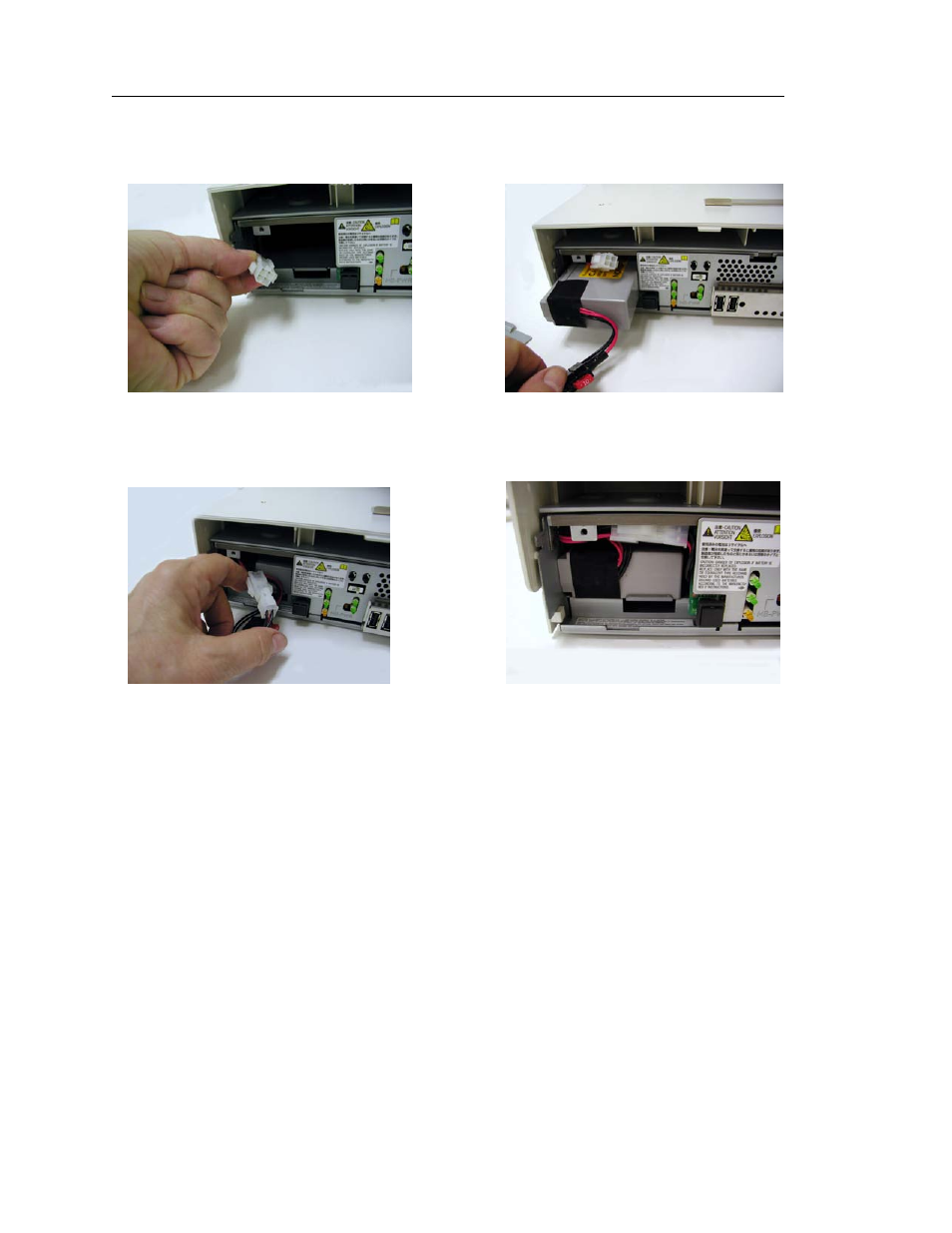

5. Gently pull the white power cable for the battery out of the way and insert the battery.


6. Connect the white connector attached to the battery to the white power cable in the

controller. Tuck the cables out of the way - on top of the battery.

7. Reinstall the front panel and the power cable (See Section 5.1.1).

8. Reinstall the front panel and reconnect power cable (See Section 5.1.1).

9. Reinstall the rear panel (See Section 5.1.2).
