7. Fit the hooks of the tileter mechanism into the openings in the back of the display. Align
so the tilter lock fits into the notch in the back of the display and tighten the screw until it
feels snug.
8. Slip the tilter mechanism into the adjustable pole until it snaps.

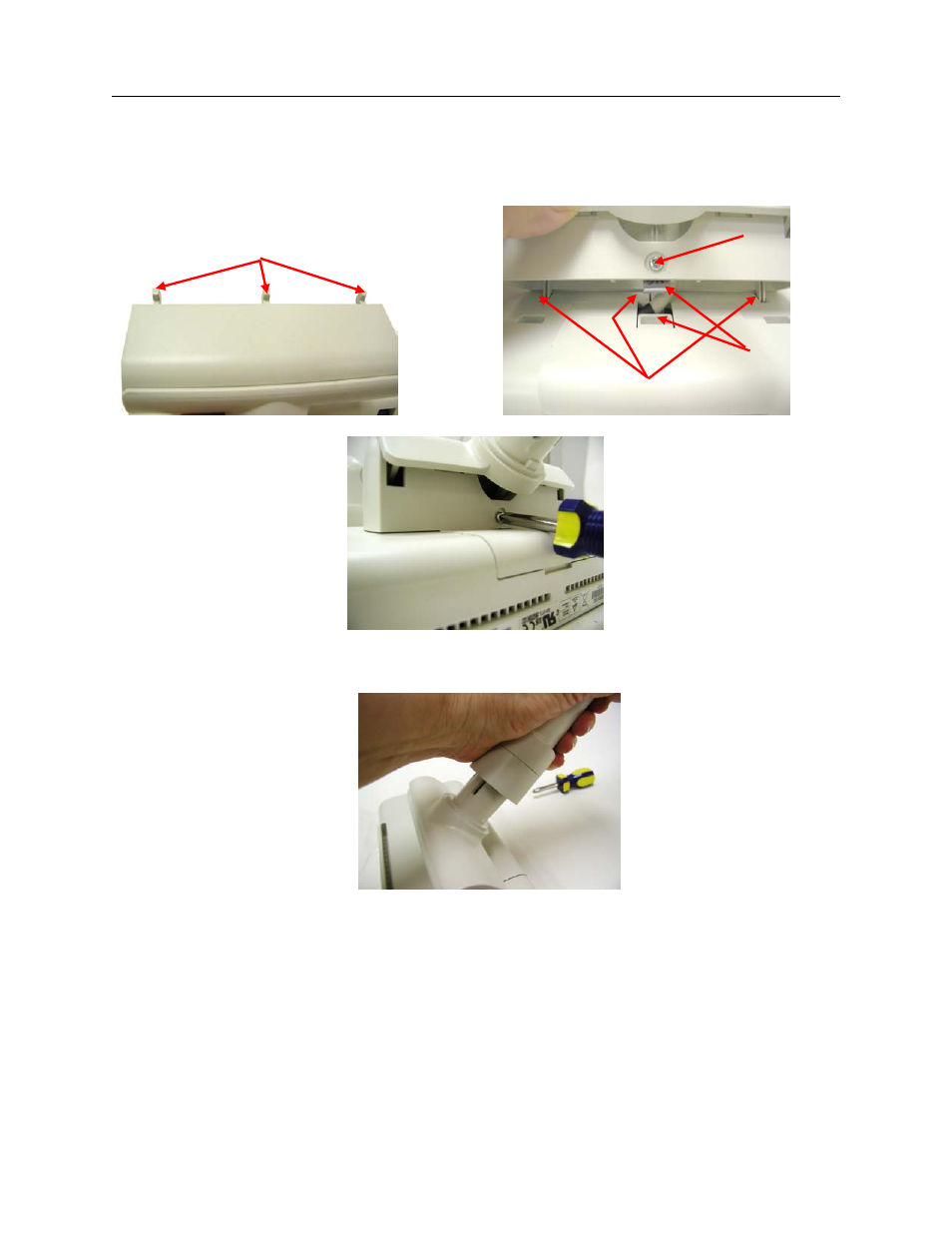

Tilter Unit
Tilter Hooks
Tilter Hooks
go here
Tilter Lock fits
in notch
Use screw to
secure display
