Cable Wiring
User’s Manual C-11
INTERFACE
INFORMATION
For connection to a data communications equipment DCE device
using DSR-enabled control, use a straight-through cable. For
connection to a data terminal equipment DTE device, use a null-
modem cable as shown here.

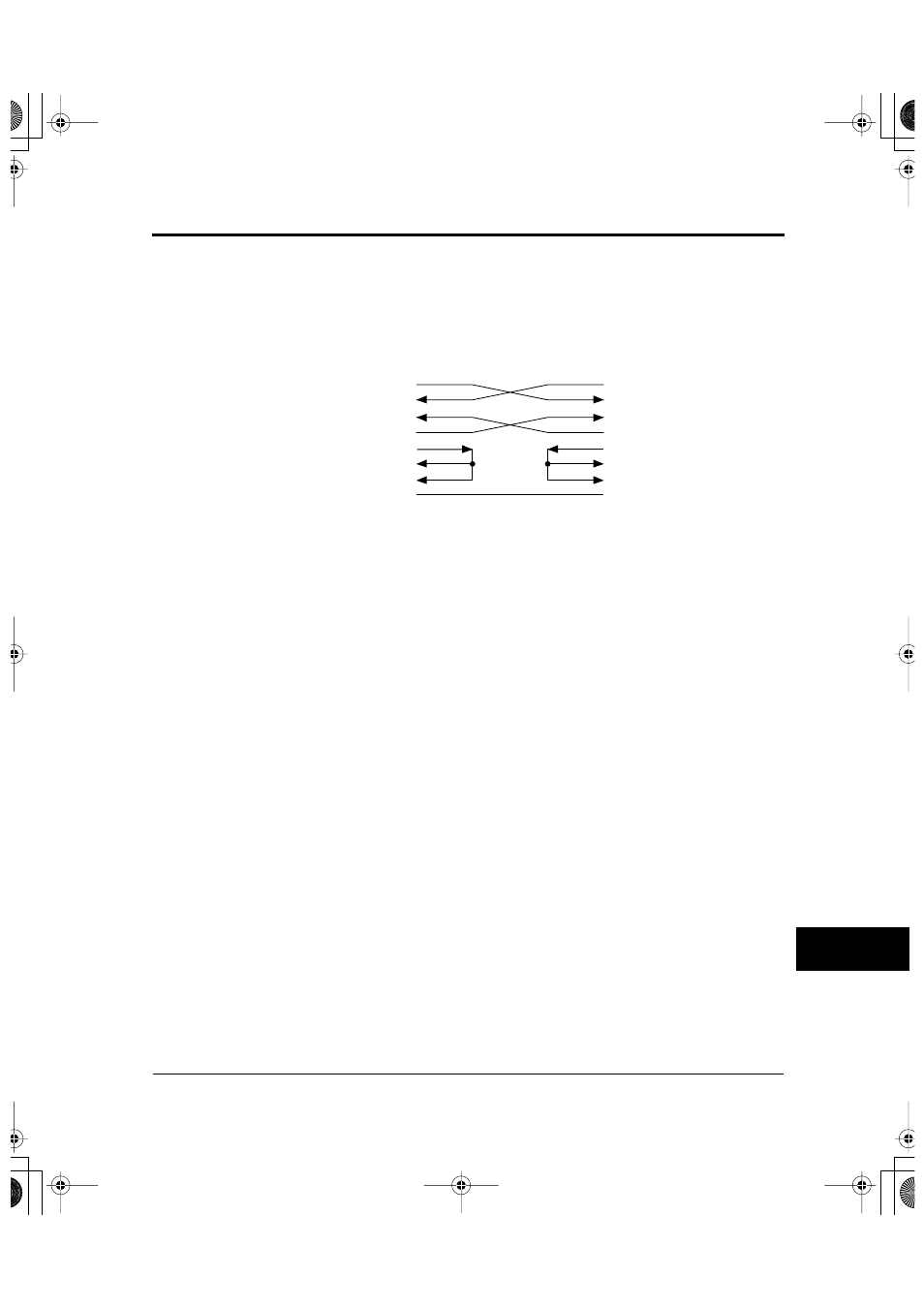

Figure C–1 Cable wiring (DSR-enabled control)
TD
RD
DSR
DTR
RTS
CTS
CD
SG (pin 2)
(pin 3)
(pin 6)
(pin 20)
(pin 4)
(pin 5)
(pin 8)
(pin 7) TD
RD
DSR
DTR
RTS
CTS
CD
SG
Processor (DTE) Printer (DTE)
