correlation will only “smooth” the curve and remove trace noise, but will not further improve
the phase noise value.

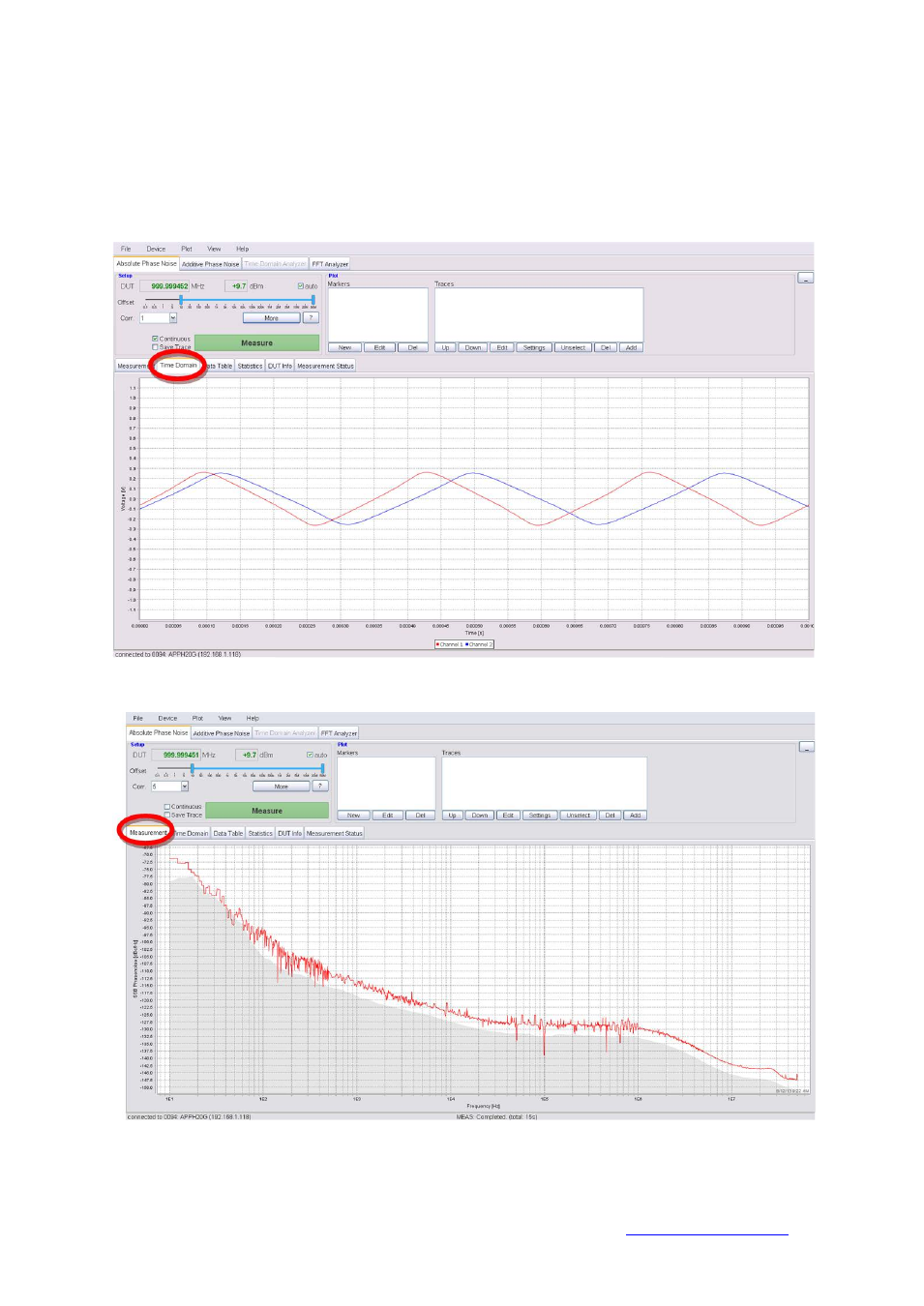

Figure 9 Beat frequency as shown in the time tab within the plot window.
Figure 10 Phase noise measurement completed. Noise floor (grey shade) is clearly below
measured trace (red).
