BNC 7000 Series User Manual User Manual
Page 19
19

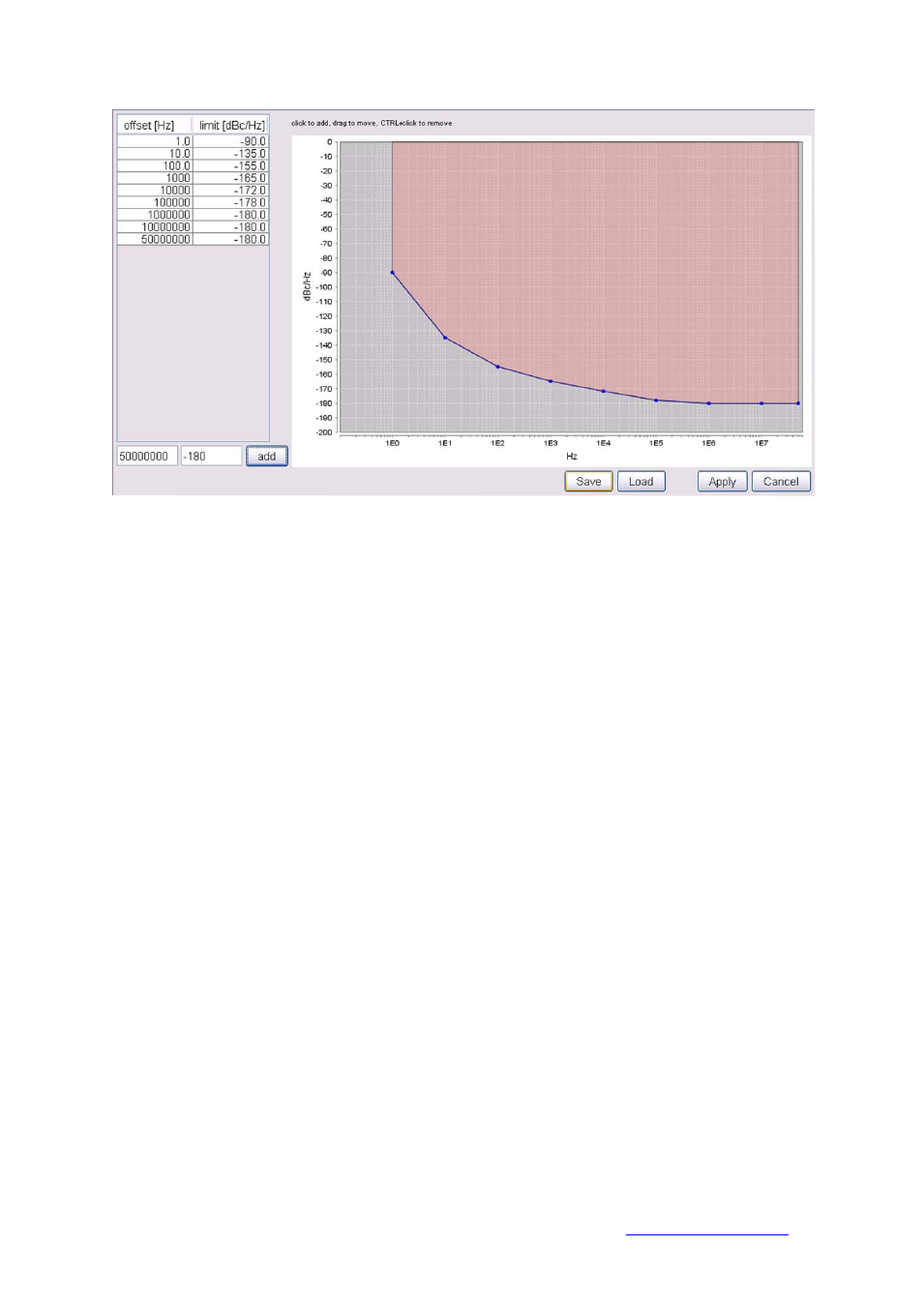

Figure 5
Spec Line Dialog Window
Plot
Settings opens the Plot Configuration Settings window as shown below. The plot configuration
window allows customizing the plot window. Window title, marker lists, or trace data information such
as residual FM or PM or integral Phase Noise can be displayed by checking the corresponding box.
The appearance of the plot can be changed as well. In the middle section, the x and y axes can be
scaled and renamed. The lower section “New Plots” contains the default settings for newly created
plots. To change already existing plots, edit them directly in the plot list. With “Show Spurious” on,
detected spurious can be displayed with a user specified threshold. Only spurious signals above the
user set level will be displayed. The “Smoothing Aperture” setting can be used to video average the
traces over a user set bandwidth.
