15
3.2 Organization of the GUI

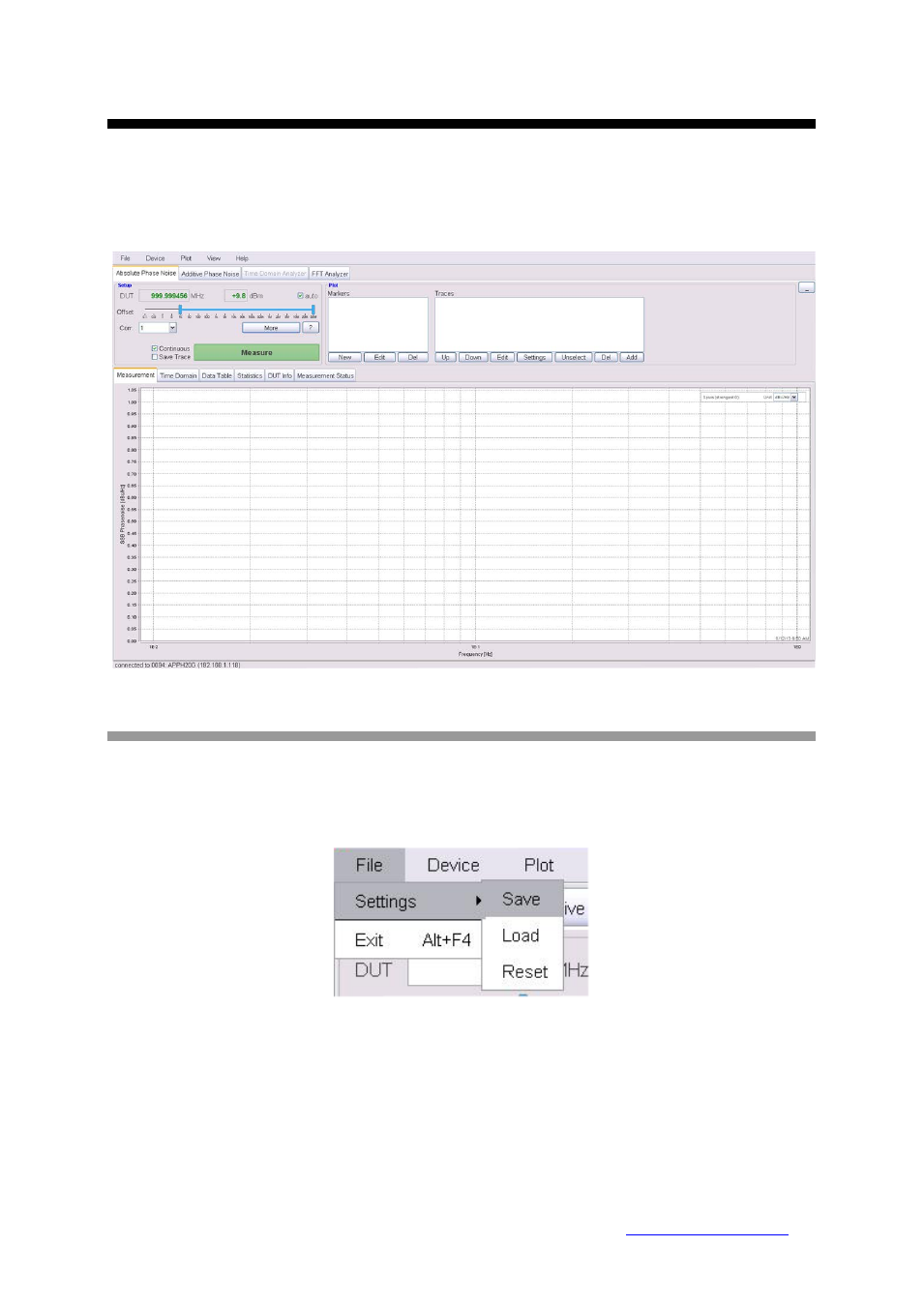

The measurement window is organized as shown in Figure 4. The GUI is divided into three sections:
a setup section on the top left, a plot configuration section on the top right and the actual
measurement window on the bottom.
Figure 4 GUI after start with devices detected (tab set to phase noise measurement)
3.2.1 Menu Section
On the top, the drop-down menus File, Device, Plot, View, and Help are available and are described
below:
3.2.1.1 File
File  Setting  (Save, Load, Reset) allows storage and restoring of user defined parameter and
measurement settings. When the GUI exits, the current configuration is automatically saved and
restored at the next restart.
File  Exit will terminate the SERIES 7000 GUI software.
