3.2.1.3 Plot

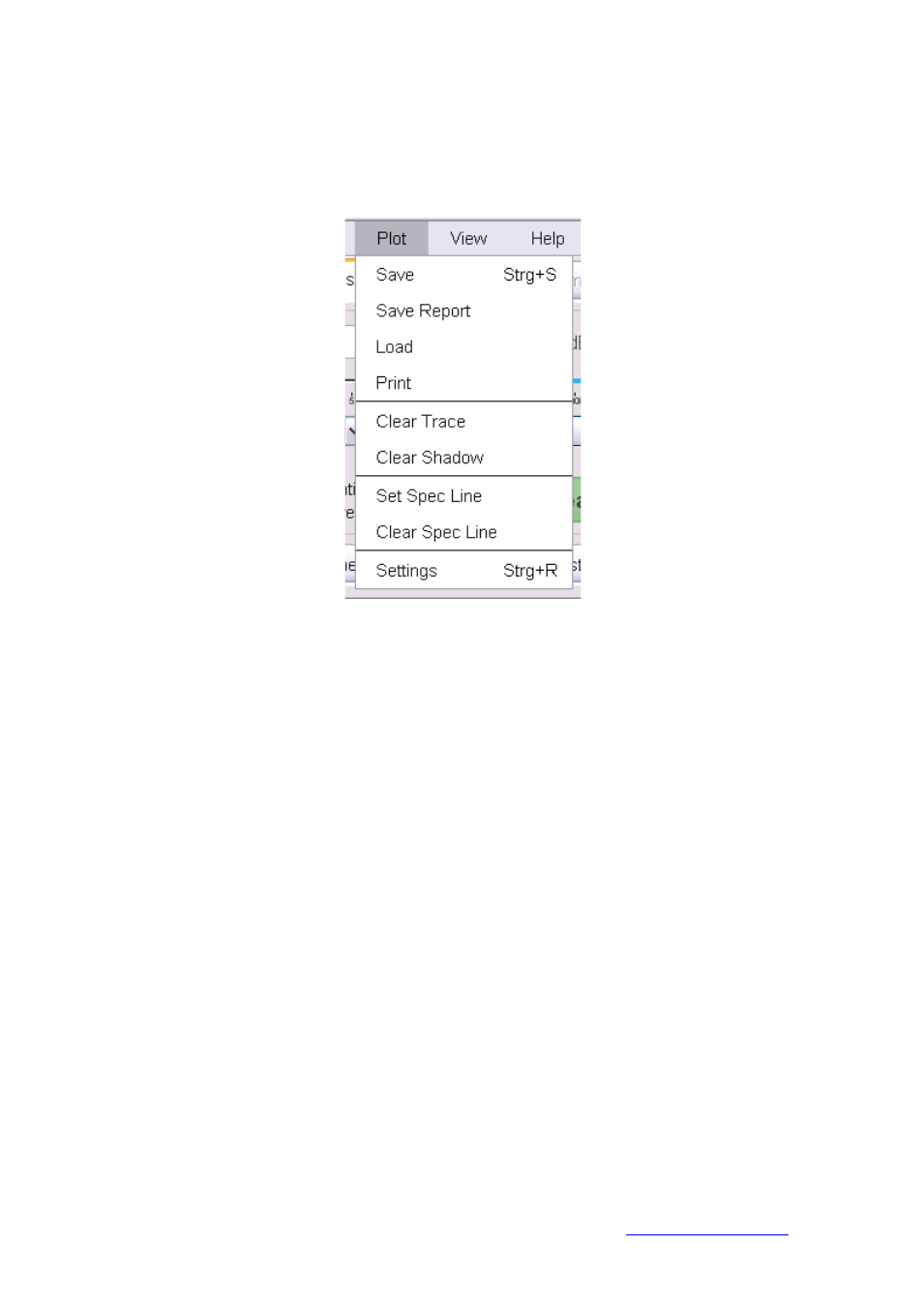

Plot  Save, Load, & Print allows storing, loading, and printing of the plot window. Plots can be
saved as PNG graphs or in SERIES 7000 internal mode (extension .Series 7000). They later can be
loaded into the GUI. Data traces can be exported when saved as MATLAB™, MS EXCEL™ or CSV
files (extension .csv).
Plot  Save Report auto-generates a pdf report including measurement trace, jitter data, Allan Dev
plot and phase noise, spurious and marker data of the current measurement.
Plot  Clear Trace deletes the active measurement trace. Same function
Plot  Clear Shadow
Plot  Set Spec Line opens a window dialog (see Figure 5). The dialog window allows defining and
drawing a spec line into you measurement window. The data can be input manually in table format on
the left or by clicking into the window on the right. Spec lines can be saved into and loaded from an
external file.
Plot  Clear Spec Line deletes the currently loaded spec line
