42 Maintenance & Repair
Changing the Heel Dies
6. Grease the back of the new Die.
7. Insert the new Die into the Die
Holder (DH) with the teeth of
the Die facing out.
8. Replace the Top Die Retainer
(DR).
9. Insert the Heel Die Pin (P).
10. Use the 3/4" wrench to replace
the Heel Die Bolts (B) and Lock
Washers.
Part Numbers
Part Name Part #
Lock Washers 999-810703
Die Roller Bolt (B) 999-806245
Die Roller (R) 061-20210
Die (D) 061-20194
Die Holder (DH) 061-20192-1A
Heel Die Pin (P) 061-92384A092

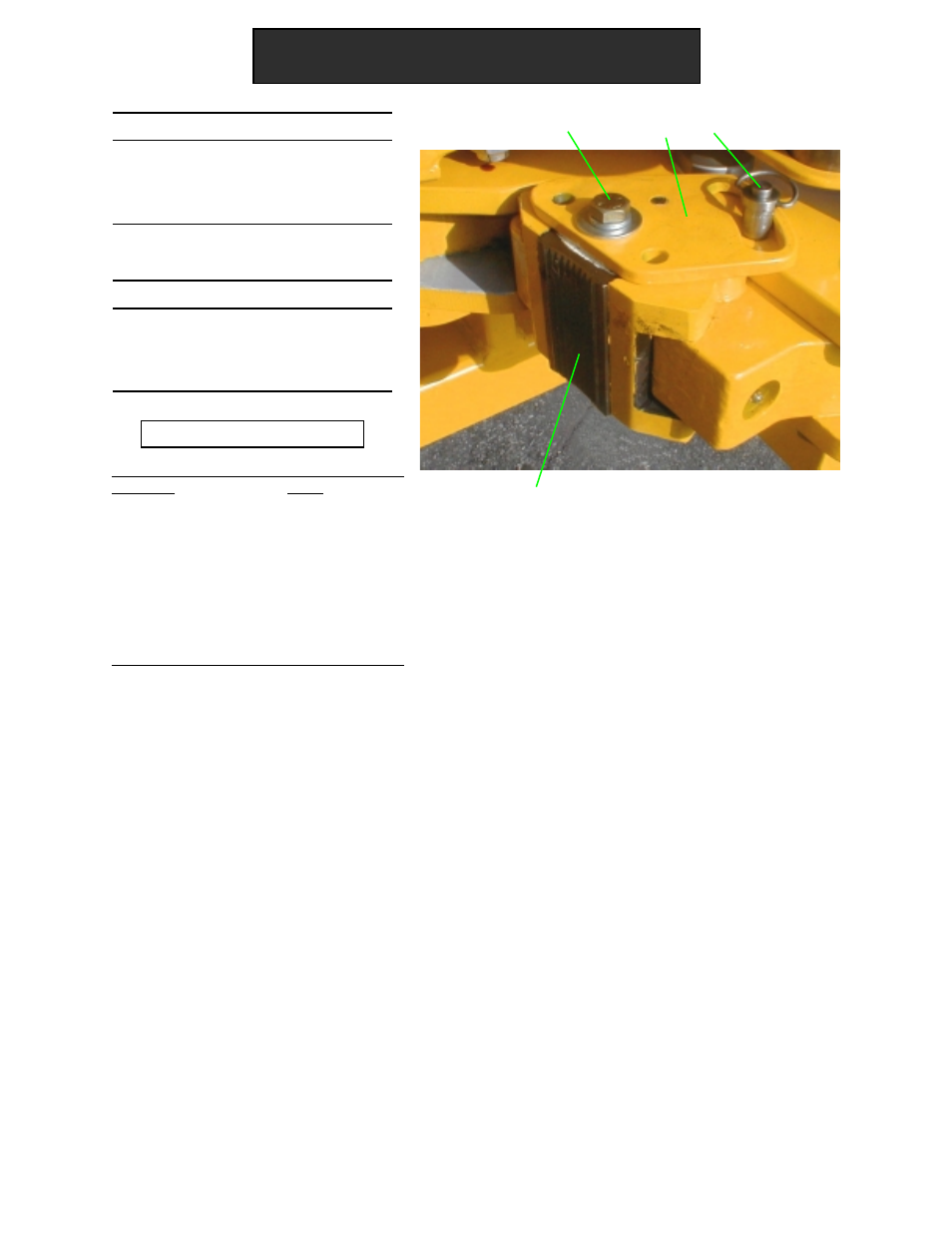

P B DR
D
