38 Maintenance & Repair
Changing the Heel Dies
7. Make sure the back and sides of
the new Die are clean.
8. Grease the back of the new Die.
9. Insert the new Die into the Die
Holder (DH) with the teeth of
the Die facing out.
10. Replace the Top Die Retainer
(DR).
11. Insert the Heel Die Pin (P).
12. Replace the Heel Die Rollers
(R).
13. Replace the Roller Bushings
(RB).
14. Use the 3/4" wrench to replace
the Heel Die Roller Bolts (B)
and Lock Washers.
Part Numbers
Part Name Part #
Spirol Lock Washer 999-810703
Die Roller Bolt (B) 999- 806307
Die Roller (R) 061-20210
Die Roller Bushing (RB) 061- 20208A
Die (D) 061-20194
Die Holder (DH) 061- 20192-1A
Heel Die Pin (P) 061-92384A092

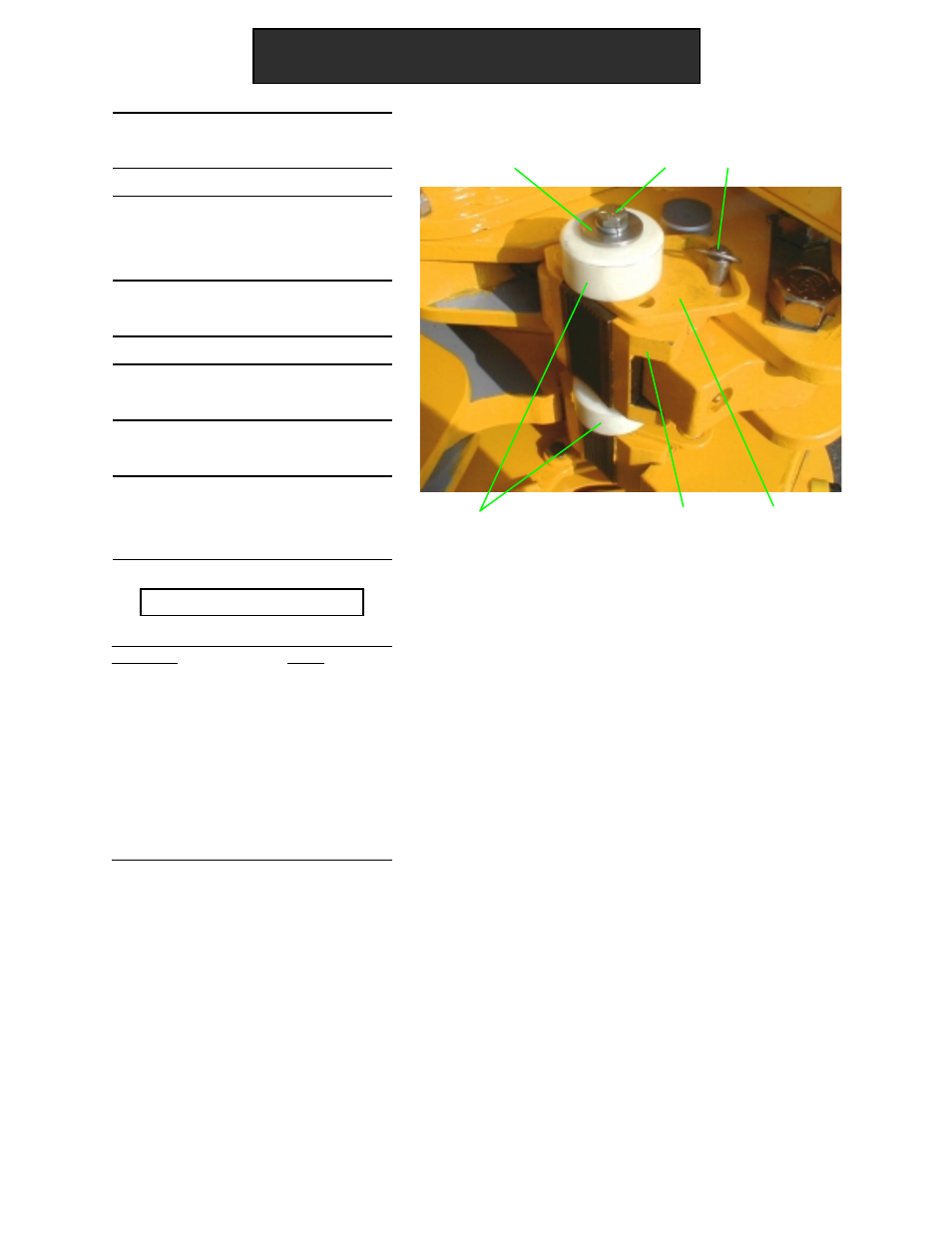

R
B RB P
DR DH
