Position for Make Up

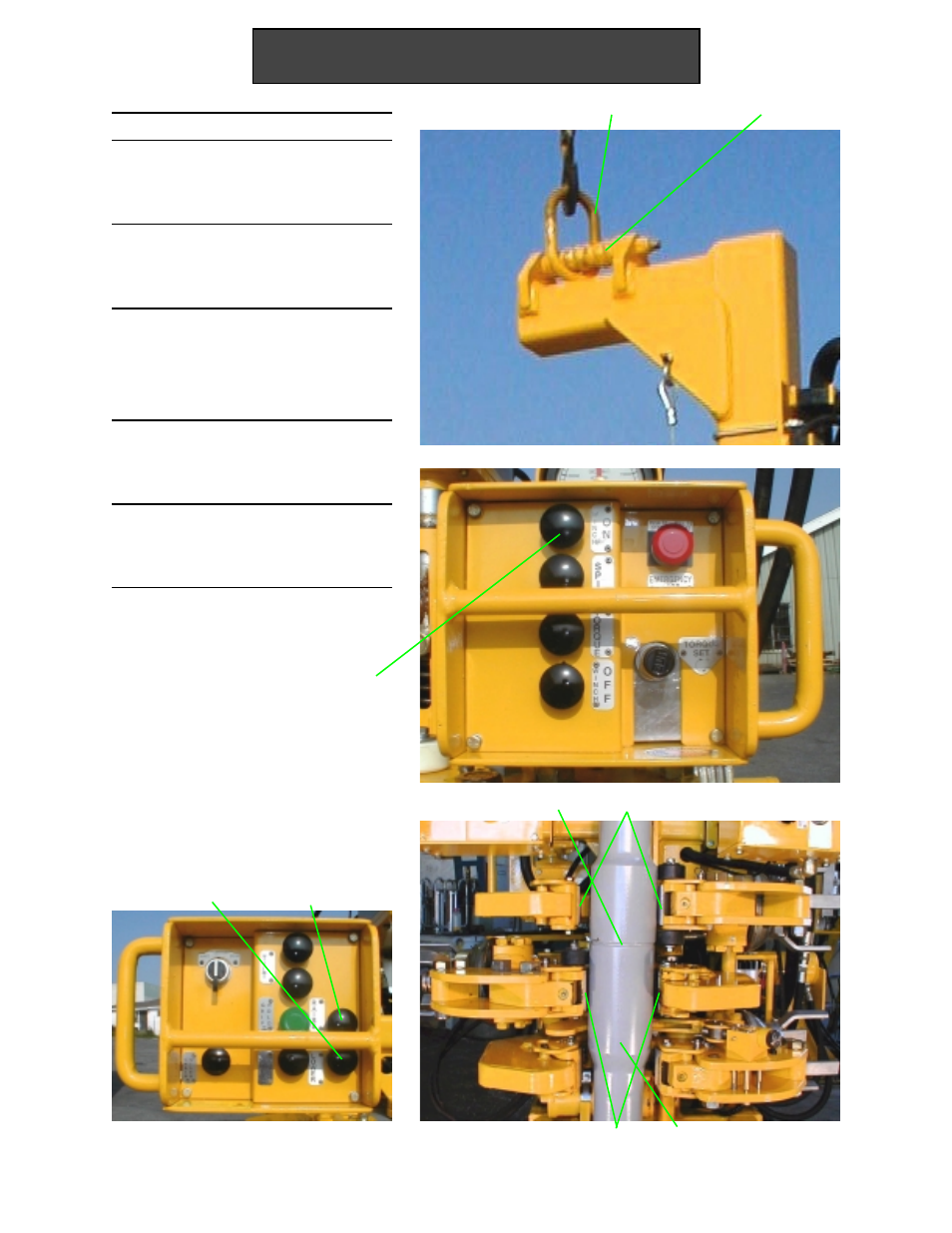

1. Stab the drill stand.
2. Center the Suspension Ring

(SR) on the Lateral tilt screw
(LTS).

3. Push and hold down Winch On

(WOn) to move the HawkJaw
onto the drill pipe connection.

4. Use Raise (R) and Lower (L) to

center the Top wrench dies (TD)
and the Middle wrench dies
(MD) between the shoulder (S).

5. Keep the Middle wrench dies

(MD) away from the Hard
banding (HB).

6. Keep the Top wrench dies (TD)

and Middle wrench dies (MD)
away from the shoulder (S).

Continued on next page.

WOn

Operation

LTS
