Position for Make Up (cont.)

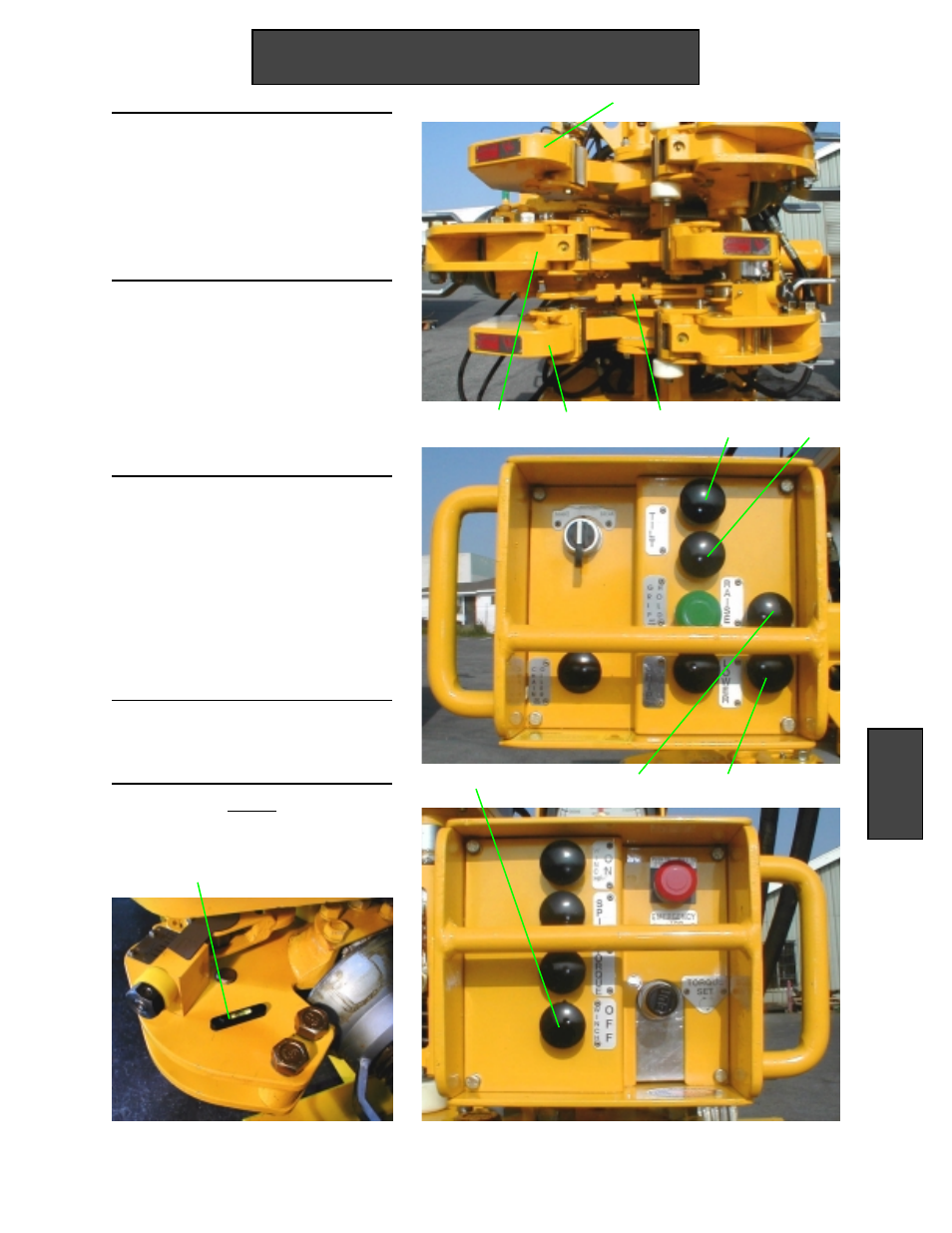

7. Check that the HawkJaw Top
wrench (TW), Middle wrench
(MW) and Bottom wrench
(BW) hang straight and level
when the drill pipe is against the
pipe stop.
8. If the HawkJaw wrenches
(TW, MW, BW) hang tilted
forward or backward, use the
Top Tilt (TT) button or the
Bottom Tilt (BT) button to level
the wrenches. Center the level
bubble (LB).
9. If the HawkJaw wrenches
(TW, MW, BW) hang sloped to
the right or to the left, push and
hold down Winch Off (WOff) to
back the HawkJaw off the pipe.
Use Lower (L) to lower the
HawkJaw to the rig floor.
Repeat Step 2.
10. Make sure the Pipe stop (PS) is
against the drill pipe
connection.
PS
BT TT
R L
WOff
BW MW
TW
Operation
21 Operation
NOTE
The HawkJaw performs best when it
hangs aligned with pipe.
LB
