Introduction
The HP StorageWorks N1200-320 4Gb Network Storage Router provides bi-directional connectivity
between one Fibre Channel Switched Fabric (FC-SW) or Fibre Channel Arbitrated Loop (FC-AL), and two
Narrow/Wide Fast/Ultra320 LVD/SE SCSI buses.
Supported devices include:
•
Initiator Devices – Fibre Channel hosts
•
Target Devices – Tape drives
External features overview

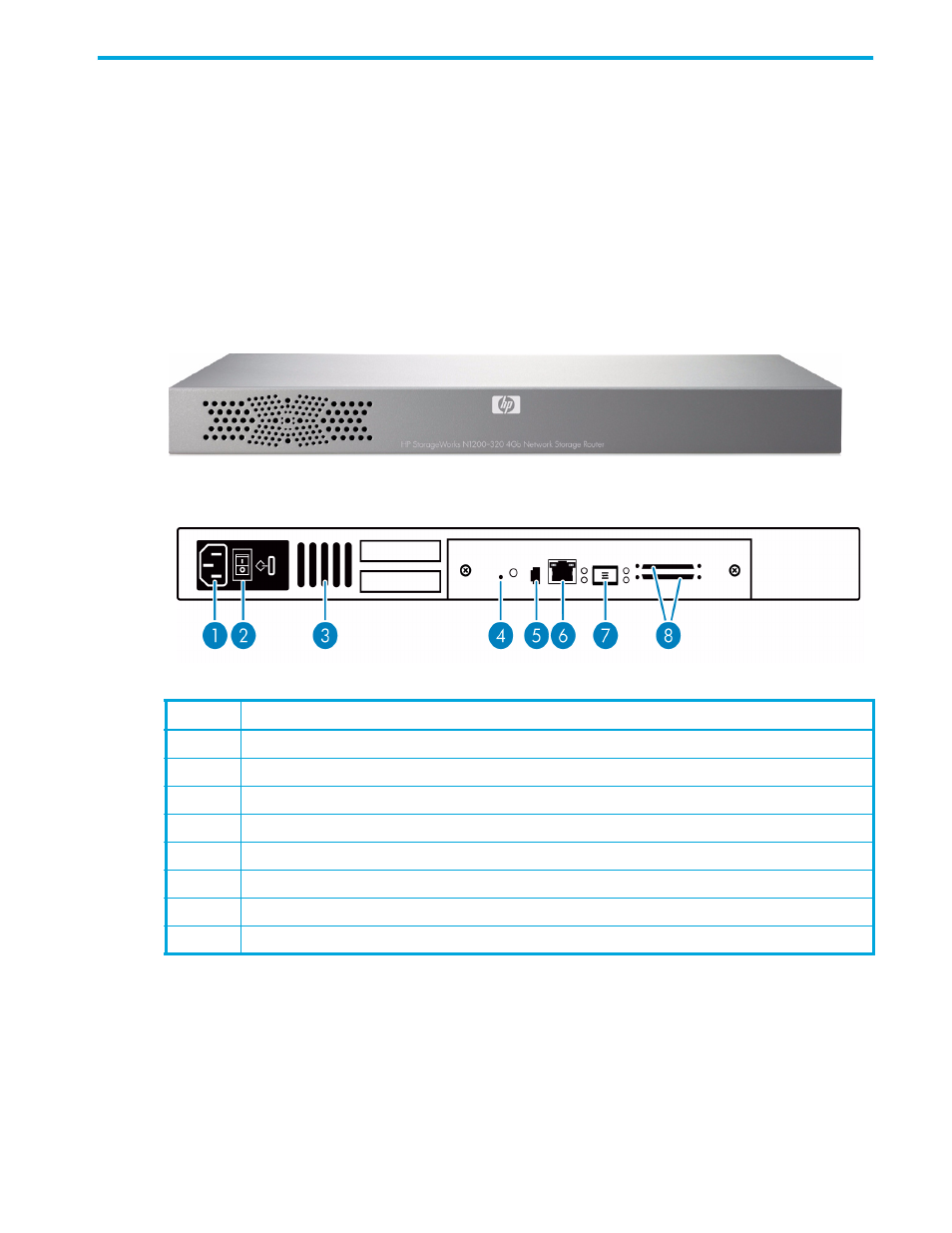

The front of the HP N1200-320 4Gb Network Storage Router is shown in
Figure 1
HP N1200-320 4Gb Network Storage Router front panel
The back of the HP N1200-320 4Gb Network Storage Router is shown in
Figure 2
HP N1200-320 4Gb Network Storage Router back panel
Table 2
HP N1200-320 4Gb Network Storage Router
In addition to Fibre Channel and SCSI interfaces, there are Ethernet and serial ports that provide
connectivity for configuration and management access. The LEDs (operation indicators) provide basic
status information. A reset access hole is also provided for a manually forced reboot of the network storage
router.
Number
Description
1
Power connector
2
On/Off switch
3
Cooling vents
4
Reset access hole
5
Serial port
6
10/100 Ethernet port
7
Fibre Channel port
8
Two SCSI busses
