52 Visual manager user interface
NOTE: If a valid firmware or configuration file is uploaded to the network storage router, an automatic
reboot occurs once the file has been received. The network storage router cannot be accessed from the
Visual Manager UI during the time that the reboot is in process, which is approximately 30 seconds.
Trace settings configuration
This menu allows the configuration of Trace Settings (see Figure 31 ).

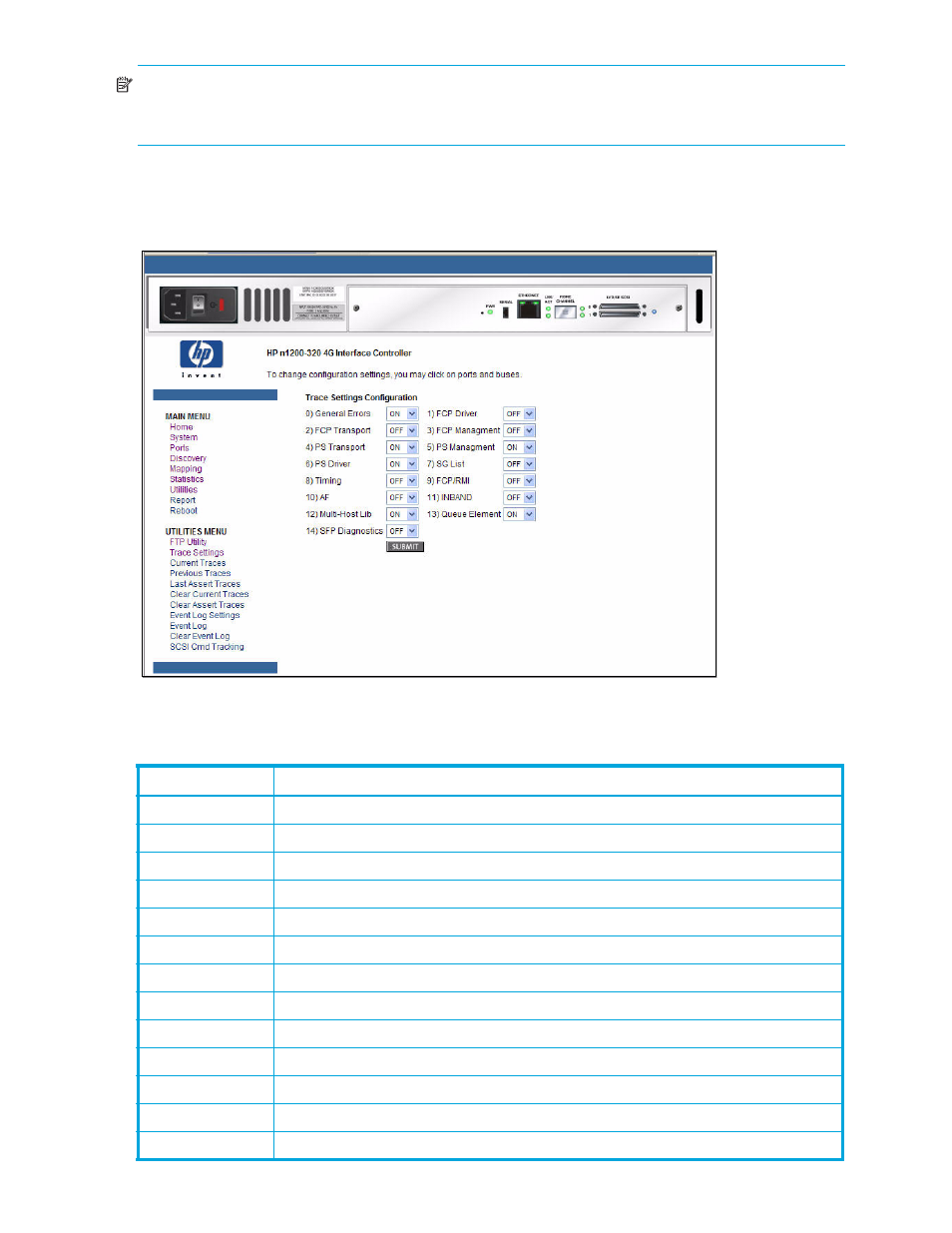

Figure 31 Trace settings configurations screen
To change the settings, use the drop-down boxes and choose the desired setting. After all changes are
completed, select Submit. Table 5 is a brief description list of the trace settings.
Table 5 Trace Settings
Setting Description
General Errors Displays the most serious error and exception conditions
FCP Transport Fibre Channel Protocol transport functionality is monitored and recorded
PS Transport Parallel SCSI transport functionality is monitored and recorded
PS Driver Parallel SCSI driver functionality is monitored and recorded
Timing Timer functions are monitored and recorded
AF Active Fabric firmware is monitored and recorded
Multi-Host Lib Debugging capability for Multi-host library features
SFP Diagnostics Optical transceiver status is monitored and recorded
FCP Driver Fibre Channel Protocol driver functionality is monitored and recorded
FCP Management Fibre Channel Protocol management functionality is monitored and recorded
PS Management Parallel SCSI functionality is monitored and recorded
SG List Scatter/gather list is monitored and recorded
FCP/RMI Fibre Channel Protocol routing layer is monitored and recorded
