N1200-320 4Gb Network Storage Router user and service guide 41
Ports menu
Accessed from the Main menu, the Ports menu is used to view and to modify configuration settings of the
Fibre Channel port and SCSI buses (see Figure 21 ).

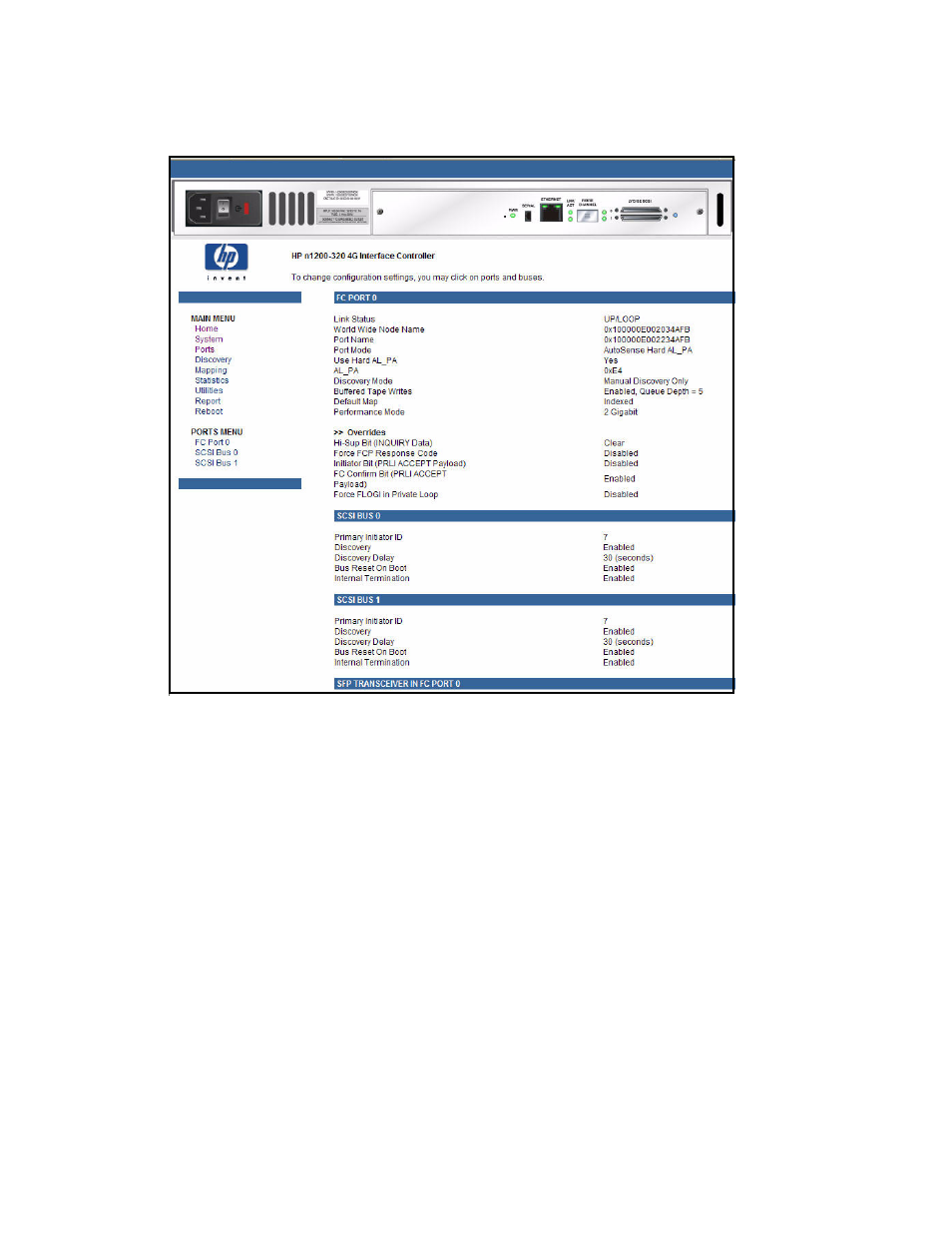

Figure 21 Ports menu
The initial screen display of the Ports menu includes summary information about each Fibre Channel port
and SCSI bus in the network storage router.
Ports menu tasks:
• Fibre Channel Port 0 configuration changes the Fibre Channel port settings.
• SCSI Bus 0, 1 configuration changes SCSI bus settings.
Each Ports menu option is discussed in the following subsections.
To view or make changes to a specific port or bus:
1. Select the port or bus from the menu bar on the left side of the screen or select the port or bus from the
network storage router image at the top of the screen.
2. Modify the setting.
3. Click Submit.
