CHAPTER 3
The DL.2 Menu System
DL.2 Digital Light User Manual 29

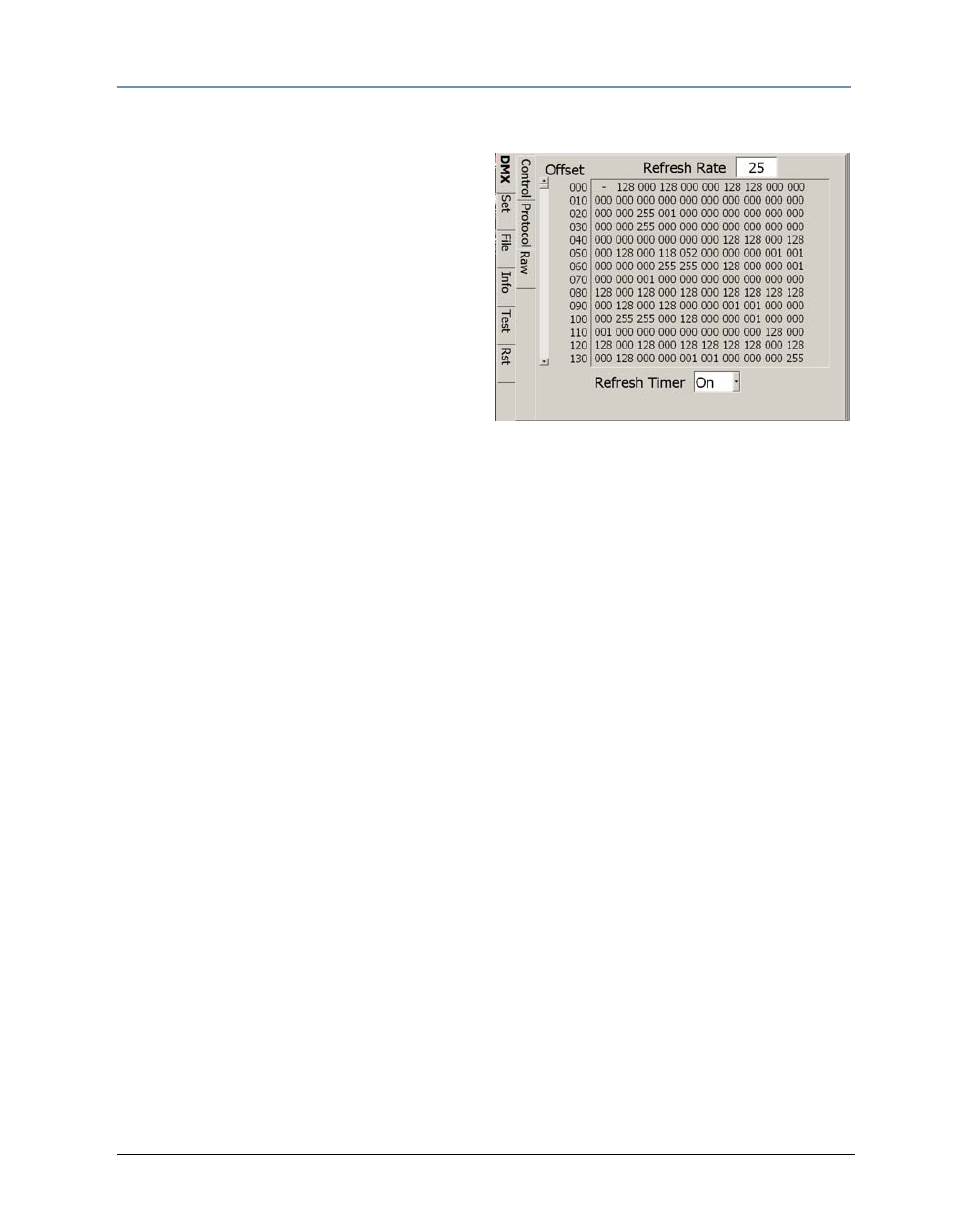

DMX_Raw Screen
You can view the DMX values of all fixtures on
the link. The Raw Tab displays every DMX value
for Channels 001–512 in lines of eight DMX
values each per screen. The Offset number at
the beginning of each line indicates the first
DMX channel with a value displayed on that
line. Use the scroll bar at the left of the offset
number to scroll through all the values.
The Refresh Rate is the rate at which DMX is
being received by the fixture.
With Refresh Timer set to On, you see the raw
DMX values updated instantly.
