CHAPTER 3
The DL.2 Menu System
28 DL.2 Digital Light User Manual
DMX_Protocol Tab
This tab displays the current DMX value being received from a console for each parameter after
any conversion, such as internal self test or protocol conversion. The DMX parameters are
grouped into general categories, each with a separate tab. For more information on individual
parameters and their DMX value ranges, see Appendix A: DL.2 and Axon DMX Protocol on page
229.

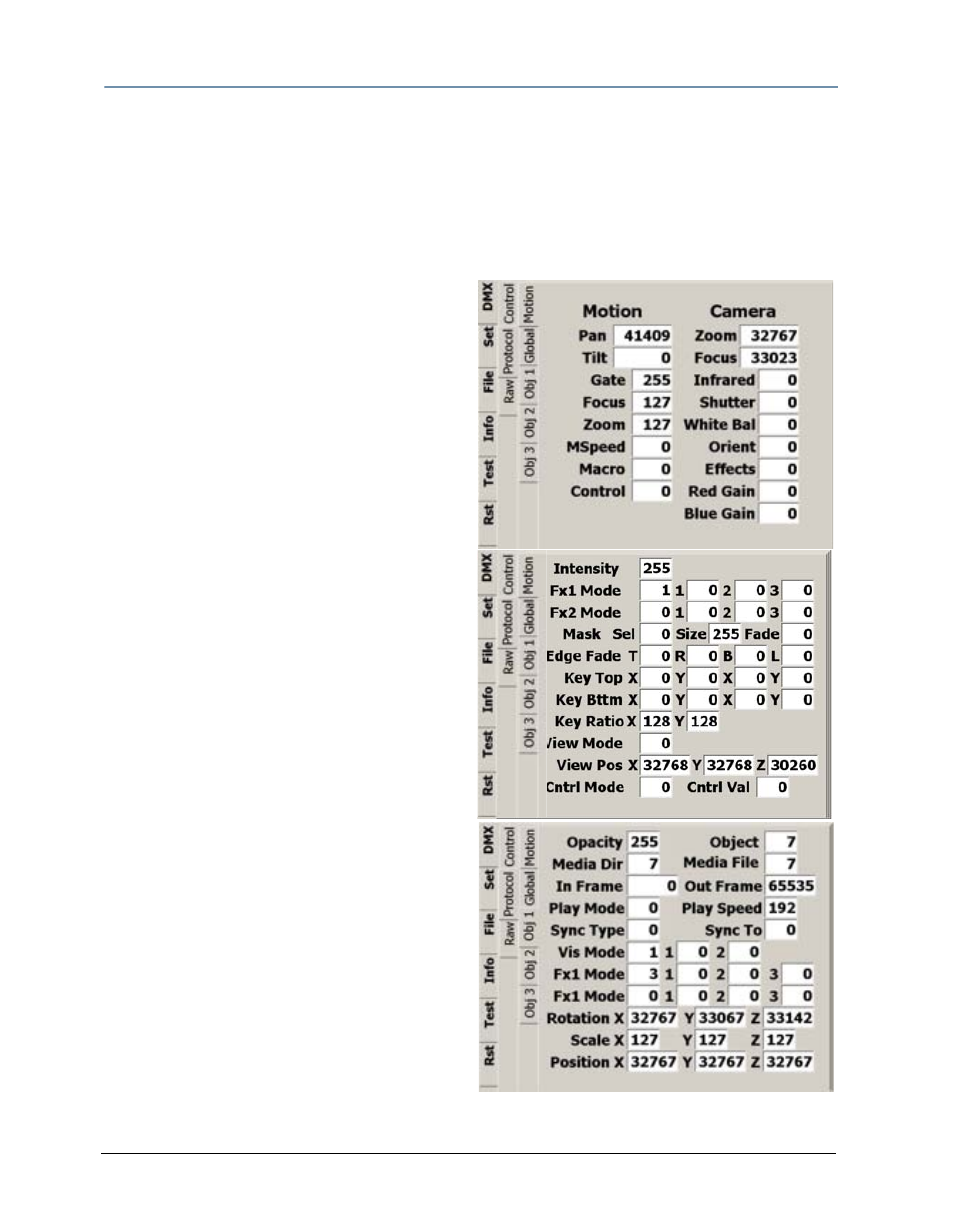

DMX_Protocol_Motion Screen
The Motion tab displays parameters associated
with fixture movement, projector control and
integrated camera functionality.
For more information on specific Motion and
Camera parameters, see:
• Chapter 14: Fixture Motion Functions
• Chapter 15: Live Video Input and Control.
DMX_Protocol _Global Screen
The Global tab display the current values for
parameters that affect the composite image.
For more information on specific Global
parameters, see Chapter 11: Global Functions.
DMX_Protocol _Obj Screens
Obj 1, Obj 2, and Obj 3 tabs display
parameters values affecting a single object’s
content. For more information on specific
Graphic Function parameters, see:
• Chapter 7: Graphic Functions: Defining
Content;
• Chapter 8: Graphic Functions: Rotation,
Position, Scale;
• Chapter 8: Graphic Functions: Opacity and
Effects; and
• Chapter 10: Graphic Functions: Synchronizing Content.
