CHAPTER 17
Maintenance and Troubleshooting
216 DL.2 Digital Light User Manual
Replacing the Fuse
WARNINGS!
Disconnect power before servicing.
Replace fuses with the specified type and rating only.
Equipment surfaces may reach temperatures up to
130° C (266° F). Allow the fixture to cool before
handling.

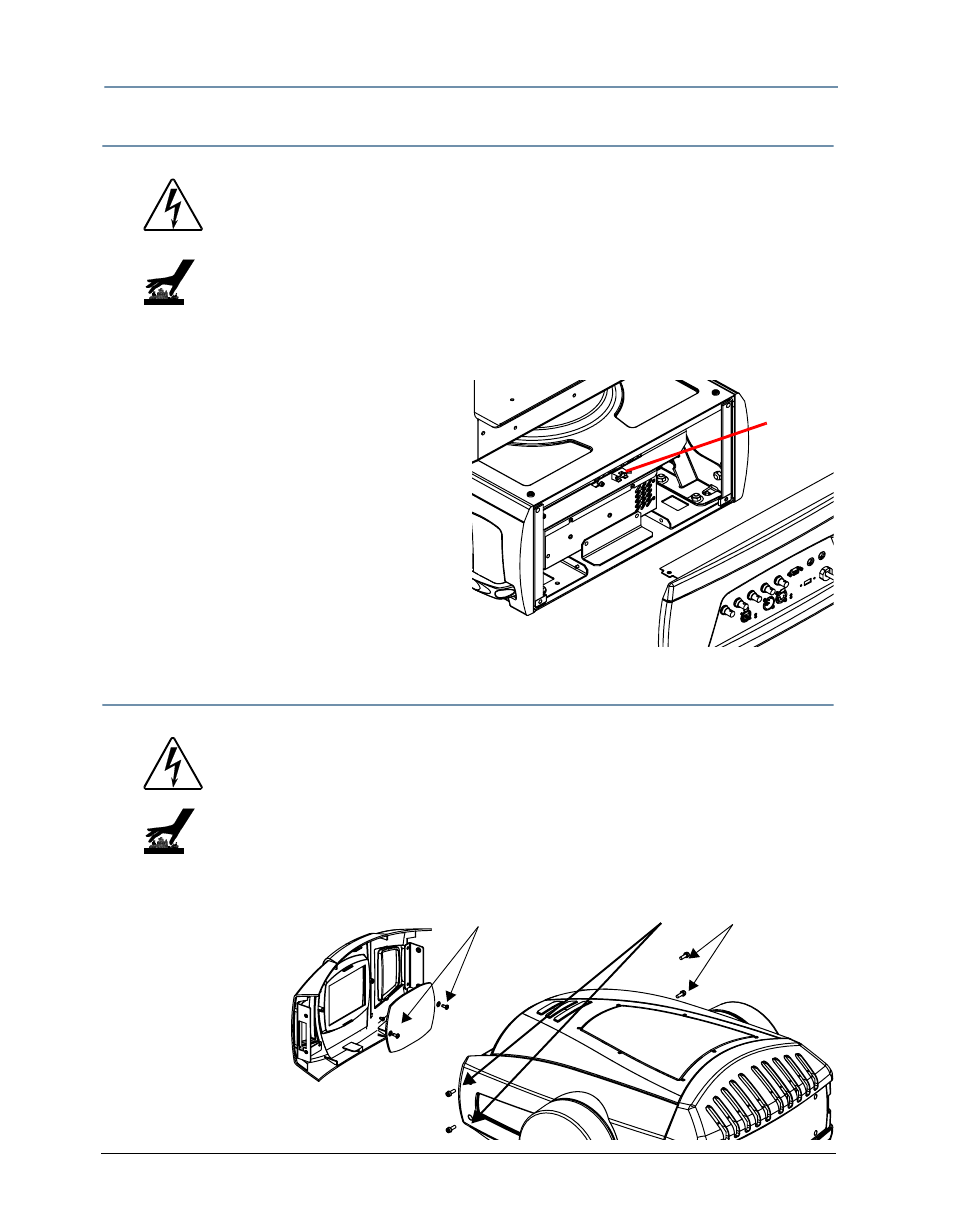

The DL.2 has one user-serviceable fuse which controls mains voltage to the fixture.
To replace a fuse:
Fuse 1. Disconnect power to the fixture. If the
fixture has been operating, allow the fixture
to cool before handling.
2. Loosen the 2 Phillips head screws on the top
cover of the connector side of the box.
3. Tilt the connector panel away from the box
4. Remove the fuse from the fuse holder.
5. Replace the fuse with a 5A, slow-blow fuse
only.
6. Replace the side and top panels.
Cleaning or Replacing the Front Window
WARNINGS!
Disconnect power before servicing.
Equipment surfaces may reach temperatures up to
130° C (266° F). Allow the fixture to cool before
handling.
To access the front
window:
Phillips head screws Phillips screws
and washer
s
1. Remove the four
phillips head
screws (two on
each side of the
front bezel)
2. Slide the bezel
from the front of
the fixture.
