APPENDIX D
DL.2 Specifications
DL.2 Digital Light User Manual 293
Cable and Connector Specifications
Video Connectors:
• RGBHV—BNC x 5
• VGA—DB15
• S-Video—mini-DIN
Peripheral/Network Connectors:
• 2 USB ports
DMX and RS-485 Projector Link
Cables: Belden 9841 or equivalent (meets specifications for EIA RS-485 applications) with the
following characteristics:
• Two 4-conductor twisted pairs plus a shield
• Maximum capacitance between conductors: 30 pF/ft
• Maximum capacitance between conductor and shield: 55 pF/ft
• Maximum resistance: 20 Ohm/100 ft
• Nominal impedance: 100–140 Ohm
positive
(data true)*
negative
(data
complement)*
Common
(cable shield)

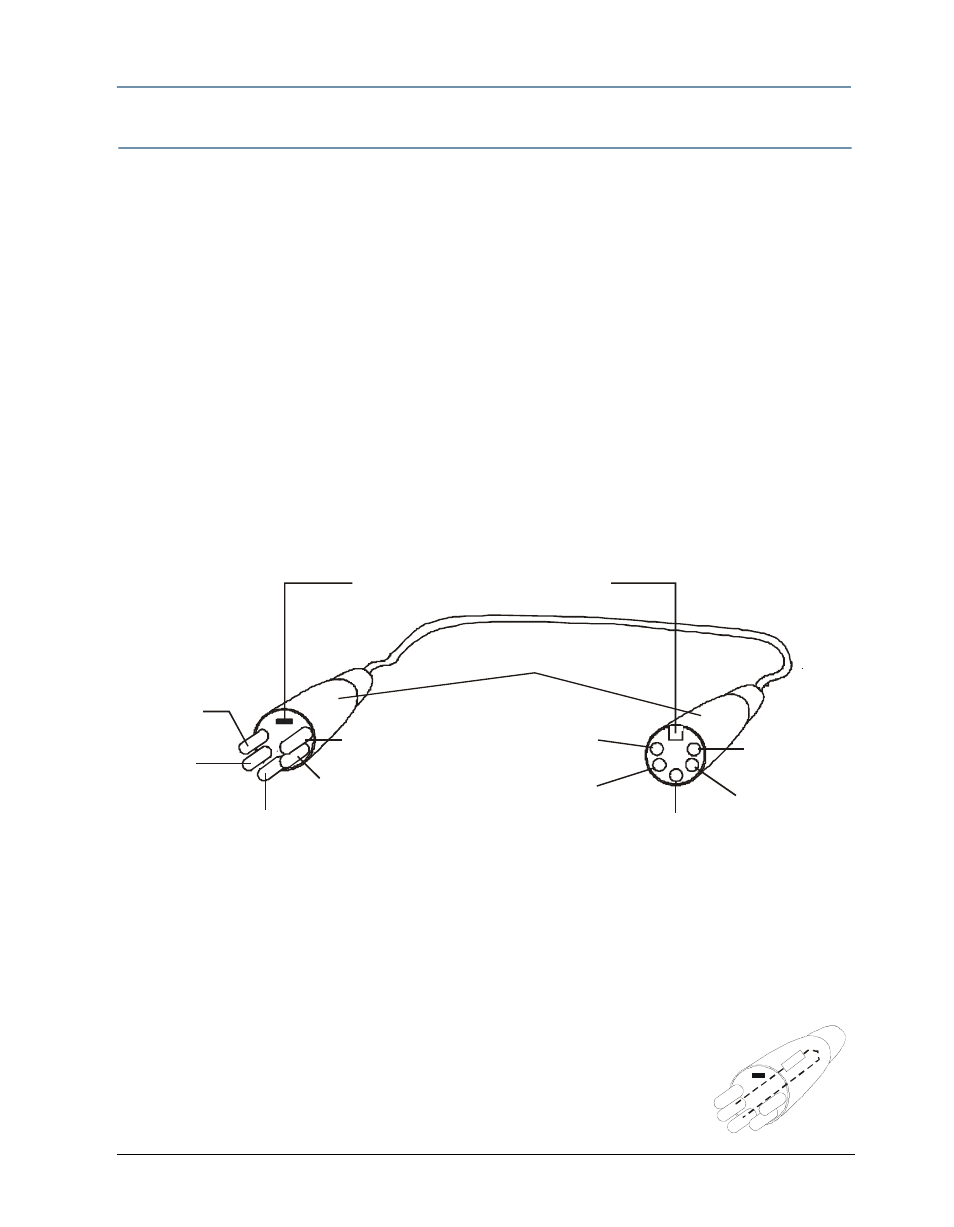

Male XLR Connector Female XLR Connector
positive
(data true)
negative
(data
complement)
XLR shell
Common
(cable shield)
positive
(data true)*
negative
(data complement)*
negative
(data
complement)
positive
(data true)
*This data line is not used by the fixture, but allows data to pass through the fixture.
Grounding lug (inside XLR shell)
2
1
3
1
2
3
4
5
5
4
Connectors: Two 5-pin male and female XLR connectors:
• Pin 1 Ground
• Pin 2 Data–
• Pin 3 Data+
1 2 0
Ω
1
2
3 4
5
• Pin 4 Secondary data–
• Pin 5 Secondary data+
Terminator: 5-pin male XLR connector with a 120 Ohm terminating
resistor fitted between pins 2 and 3.
