Button Action
When in the large format display, pressing any
button reverts to the normal menu display.
showing the Detailed Message Display pane in
the Info_Status tab of the menu. At that point,
you can view the detailed information for the
error/warning messages or navigate elsewhere.
Inactivity Timer
After 30 seconds of inactivity from the display
navigation/editing buttons has passed, the
display returns to the large format error display
should there be any new messages to be displayed or if there is a persistent error. A persistent
error is a case where the error condition continues to occur.

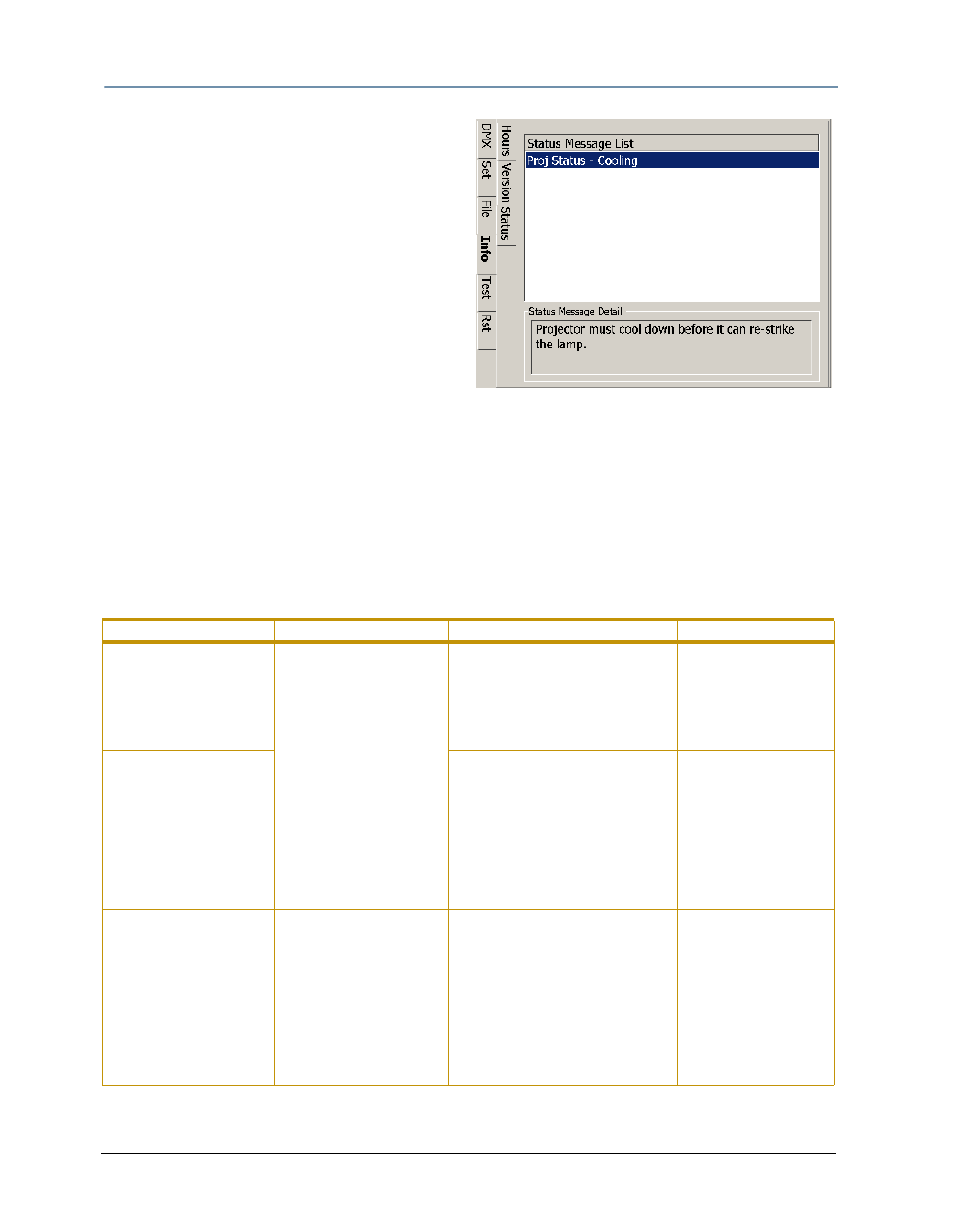

The second way to view Status messages is by navigating to the Info_Status screen. This
screen displays current error or status messages. If there are multiple
error/warning messages displayed, use the up/down arrows to scroll through the list in the top
pane. When an item is highlighted in the top pane, the bottom pane details information
associated with that error.
Supported Error/Warning Messages
Issue Large Format Message Message Detail Notes
Projector Temperature
Status
Info_Status tab only
This message does not
appear in large format
PROJ STATUS-COOLING
The projector must cool down
before it can re-strike the lamp
This message will
end when the fixture
has reached the
recom-mended
operational
temperature
Motion Shut Down
Status
Motion Shut Down
The Motion Systems is in shut
down mode. To return to normal
operation, power cycle or
perform a HOME ALL
Home the fixture
through the menu
system “Test_Home_
Motion All_Home”
screen, the CMA,
(see
page 205) or
from the DMX
console (see
page
180).
Camera
Communication Error
CAMERA COMM ERROR
The system is unable to
communicate with the Camera.
Check the Ribbon
cable connections at
the camera and the
head card. (the Blue
side should be facing
out).
Use the camera’s
zoom buttons to
check that the
camera has power.
