CHAPTER 16
Content Management Application (CMA)
DL.2 Digital Light User Manual 207

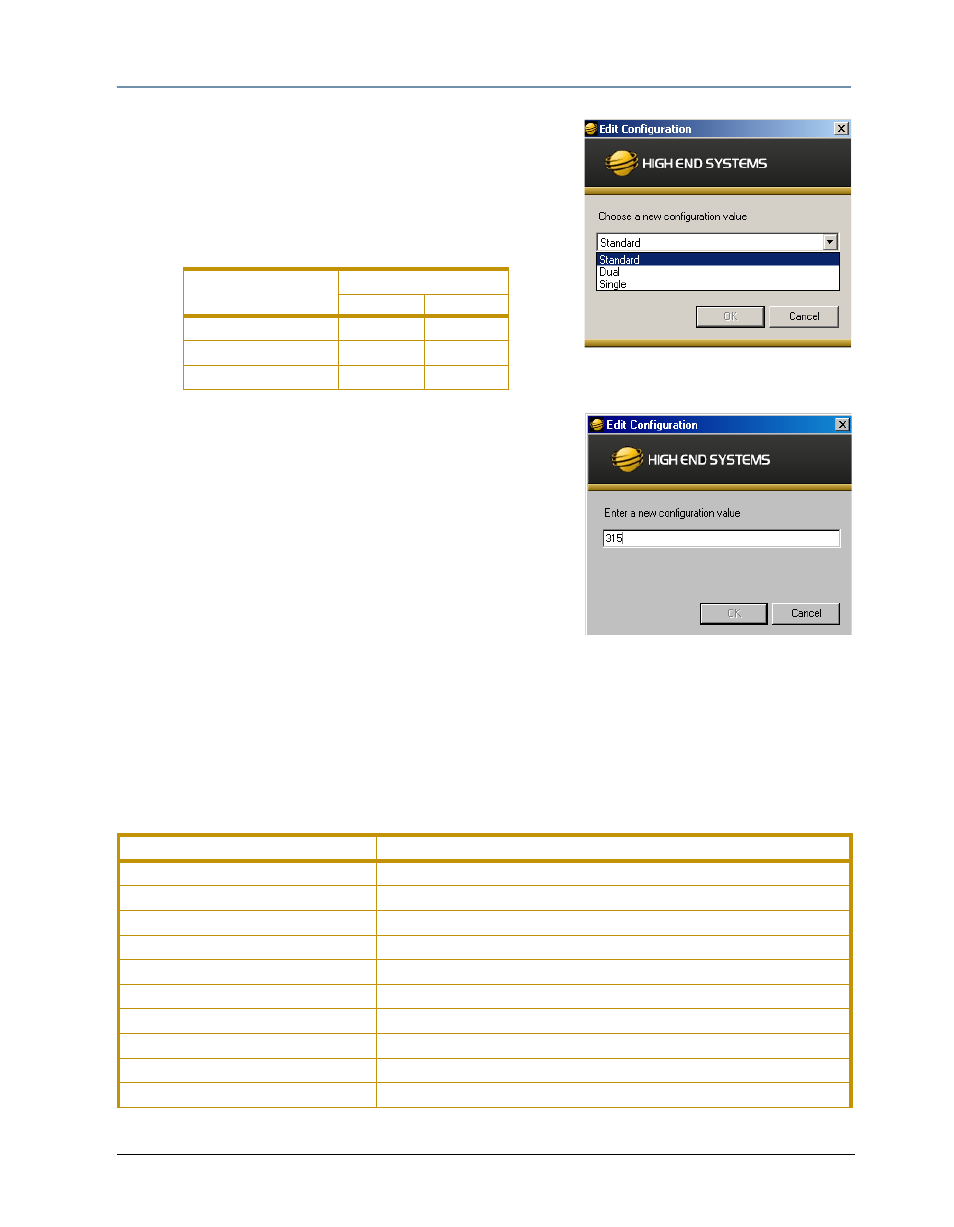

To select a DMX Protocol type:
1. Scroll down the Configuration list in the right pane and
double click on the line with DMX Protocol in the Name
column to bring up the edit dialog box.
2. Choose Standard, Dual, or Single from the drop
down list in the option field.
Protocol Selection
DMX Channel Range
Axon DL.2
Standard Protocol 149 170
Dual Protocol 111 132
Single Protocol 73 94
To edit the DMX Start Channel:
1. Scroll down the Configuration list in the right pane and
double click on the line with Start Channel in the Name
column to bring up the edit dialog box.
2. Enter a valid Start Channel for the protocol type you
have chosen. For more information on selecting a valid
start channel, see Determining a DMX Start Channel on
page 38.
Configuration Options
Available configuration values will depend on whether
you’re viewing an Axon or a DL.2 media server. The following table shows the configuration
values available for viewing and/or editing.
NOTE: Read Only options are for information display only and cannot be
edited. If you select or type in an option that is invalid, the OK button
will be grayed out and not selectable.
DL.2 Configuration Options
Configuration Item Configuration Value Options
Art-Net Subnet 0-16
Art-Net Universe 0-16
Box Current Temperature Read only
Box Maximum Temperature Read only
Box Minimum Temperature Read only
Box Temperature Reset Pressing Reset restores value to Current Temperature
CPU Current Temperature Read only
CPU Maximum Temperature Read only
CPU Minimum Temperature Read only
CPU Temperature Reset Pressing Reset restores value to Current Temperature
