CHAPTER 12
Global Functions: Collage Generator™ Effect
132 DL.2 Digital Light User Manual

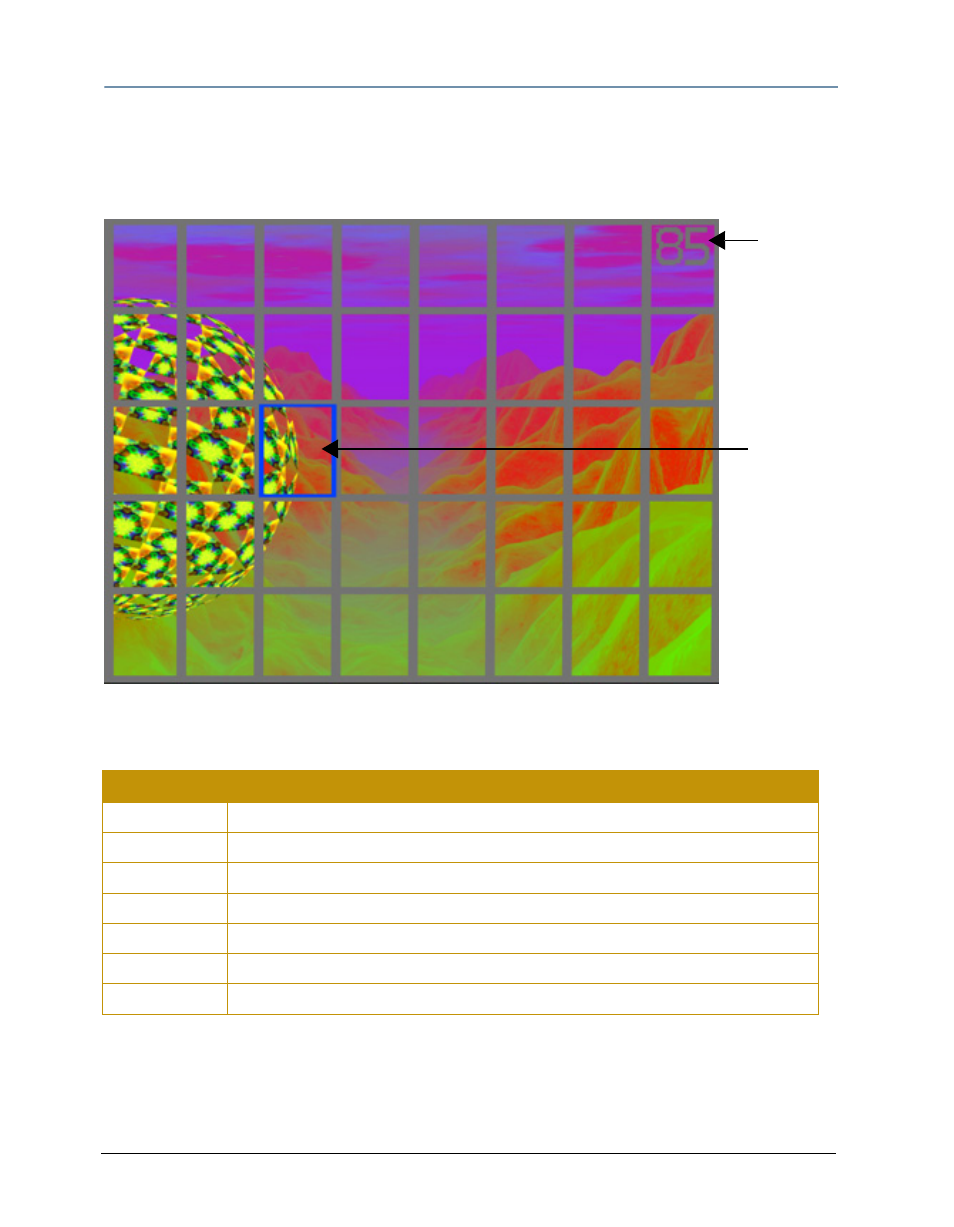

The Modifier 2 channel selects which cell of the grid a particular DL2 will display. DMX values 0
up to 63 are used to step through grid pattern you selected with the Modifier 1 channel. As you
dial through Modifier 2 you will see each cell in the grid highlight in a as it is selected. DMX
values of 64-255 default to the upper left corner of the grid.
Selected
cell
Array
Size
(8 x 5)
The Modifier 3 channel lets you manually or automatically control the blended edges of the
adjacent projections. You can also display grid overlays that show your Modifier 1 and Modifier 2
channel selections.
DMX Value Action
0-127 Adjusts blending
128-160 Displays rectangular area with no blending
161-191 Displays rectangular area with no blending covering full projector output
192-199 Displays default alignment pattern in rectangular area without blend area
200-207 Displays default alignment pattern with blending
208-215 Displays default alignment pattern and blend area with no blending
216-255 Displays collage selection grid over selected image/movie.
