For the connection to the video switcher, refer to the
operating instructions of the switcher.
* LINE OUT menu display is not output.
* You can switch the MONITOR OUT menu display by
turning the OSD switch on/off.
Depending on the application, you can choose the one
you want.
* The BRC-H800 does not have MONITOR OUT SDI
2 LINE OUT SDI 2 terminal.
* Use straight network cables.
For HD output
When you want to switch cameras, connect a
commercially available video switcher.
For the connection to the video switcher, refer to the
operating instructions of the switcher.
* The BRC-H800 does not have MONITOR OUT SDI
2 LINE OUT SDI 2 terminal.
* Use straight network cables.
* Equivalent signals are delivered to both SDI 1 and SDI
2.
MODE VISCA
1 9 1 9
RS-422 TALLY/CONTACT RS-232C !
DC 12V
LAN
EXT SYNC IN TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT SDI 1
OSD
LAN
SDI 2
2 3 4 5 6 7 8 1
MONITOR OUT HDMI OUT SDI 1 SDI 2
IN SYSTEM
SELECT
IR SELECT CAMERA SETUP
1 2 3
VISCA RS - 422 OUT 12V
EXT SYNC IN TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT SDI 1
OSD
LAN
SDI 2
2 3 4 5 6 7 8 1
MONITOR OUT HDMI OUT SDI 1 SDI 2
IN SYSTEM
SELECT
IR SELECT CAMERA SETUP
1 2 3
VISCA RS - 422 OUT 12V
EXT SYNC IN TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT SDI 1
OSD
LAN
SDI 2
2 3 4 5 6 7 8 1
MONITOR OUT HDMI OUT SDI 1 SDI 2
IN SYSTEM
SELECT
IR SELECT CAMERA SETUP
1 2 3
VISCA RS - 422 OUT 12V

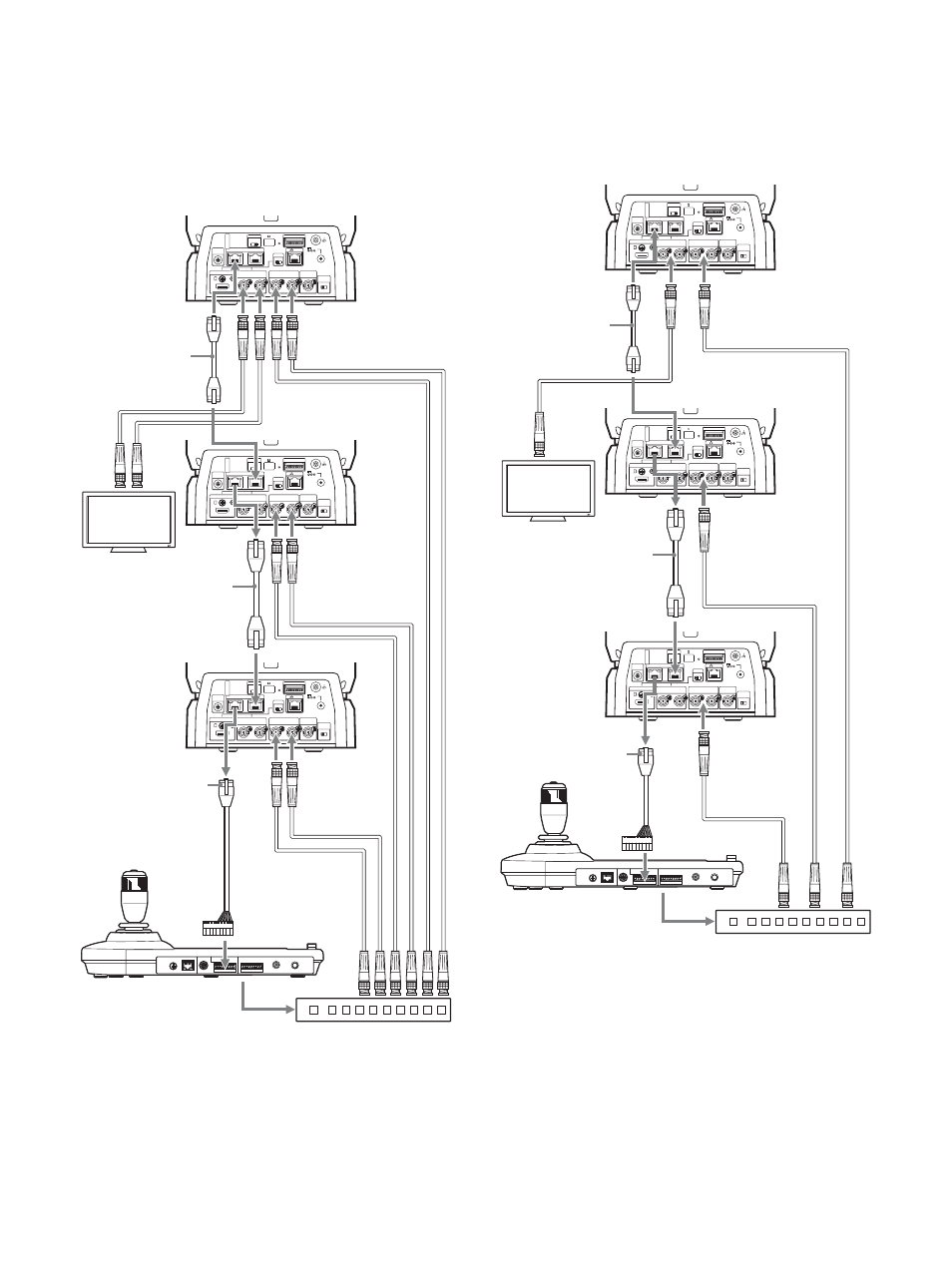

Network cable
(commercially
available)
Connecting cable with
BNC connector
(commercially available)
Video monitor
Network cable
(commercially
available)
Connecting cable
with BNC connector
(commercially
available)
Connecting cable
with BNC connector
(commercially
available)
Connecting control
signals
Video switcher
RS-422 conversion
cable
MODE VISCA
1 9 1 9
RS-422 TALLY/CONTACT RS-232C !
DC 12V
LAN
EXT SYNC IN TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT SDI 1
OSD
LAN
SDI 2
2 3 4 5 6 7 8 1
MONITOR OUT HDMI OUT SDI 1 SDI 2
IN SYSTEM
SELECT
IR SELECT CAMERA SETUP
1 2 3
VISCA RS - 422 OUT 12V
EXT SYNC IN TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT SDI 1
OSD
LAN
SDI 2
2 3 4 5 6 7 8 1
MONITOR OUT HDMI OUT SDI 1 SDI 2
IN SYSTEM
SELECT
IR SELECT CAMERA SETUP
1 2 3
VISCA RS - 422 OUT 12V
EXT SYNC IN TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT SDI 1
OSD
LAN
SDI 2
2 3 4 5 6 7 8 1
MONITOR OUT HDMI OUT SDI 1 SDI 2
IN SYSTEM
SELECT
IR SELECT CAMERA SETUP
1 2 3
VISCA RS - 422 OUT 12V
Network cable
(commercially
available)
Video monitor
Network cable
(commercially
available)
Connecting control
signals
RS-422 conversion
cable
Connecting cable with BNC
connector (commercially
available)
Connecting cable with
BNC connector
(commercially
available)
Connecting cable
with BNC
connector
(commercially
available)
Video switcher
