Attach the ceiling bracket (B) to the
attachment materials (not supplied) to
mount the camera on the ceiling.
Be sure to attach it so that the f hole of the ceiling
bracket (B) is placed where the front of the camera
will face.
5
Attach the wire rope for fall prevention to
the ceiling.
Using an M5 (3/16 inches) socket cap screw (not
supplied), attach it to the attachment materials
different from the one to which the ceiling bracket
(B) is attached.
6
Attach the wire rope for fall prevention to
the ceiling bracket (A).
Put the wire rope through the fitting for wire rope of
the ceiling bracket (A) and securely attach it to the
bracket using the supplied stainless steel screw (
3
M4×8).
Caution
Use the supplied screws. Otherwise, you may
break the internal parts of the camera.

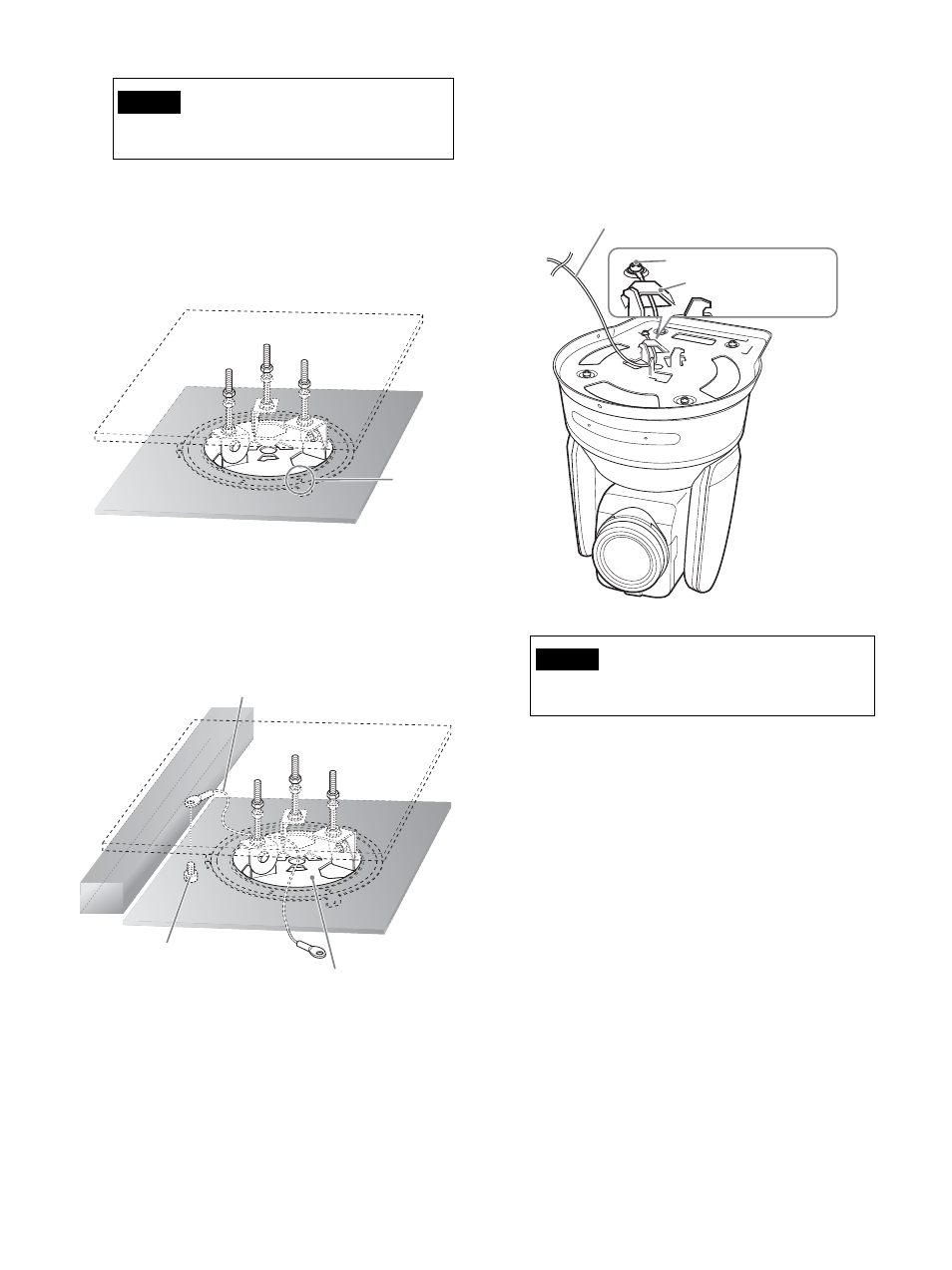

f hole
Ceiling
Ceiling bracket (B)
Attachment materials
Ceiling
Ceiling bracket (B)
Attachment
materials
M5 ( 3 /16 inch) socket
cap bolt
Wire rope (supplied)
Caution
Use the supplied screw. Otherwise, the wire rope
may not function properly.
Ceiling bracket (A)
Wire rope (supplied)
3 M4× 8 (supplied)
Fitting for wire rope
