Page 26
26

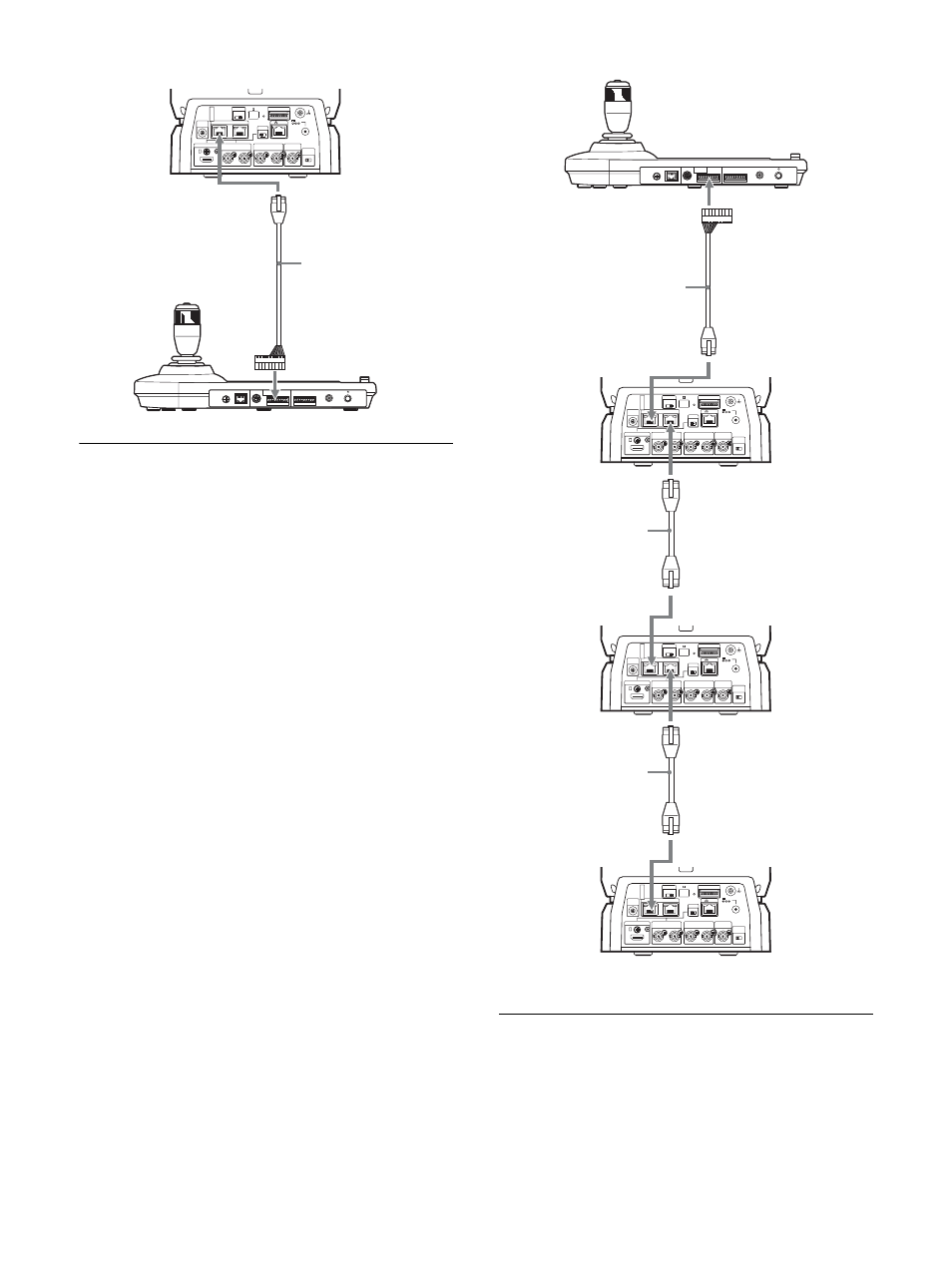

Connecting multiple cameras to a
single remote controller (not
supplied)
Using the VISCA RS-422 terminal
Multiple cameras can be connected via the VISCA RS-
422 terminal. The VISCA RS-422 allows connections of
up to 1.2 km in length.
Using supplied RS-422 terminal board connectors and
the remote controller, make a connecting cable.
When you make the connecting cable, refer to the pin
layout of the VISCA RS-422 terminal (page 63) and the
VISCA RS-422 connection diagram (page 63).
Check the setting of each switch of the remote
controller. For details, refer to the operating instructions
of the remote controller.
Use straight network cables.
Connecting a commercially
available video switcher
For 4K output
When you want to switch cameras, connect a
commercially available video switcher.
MODE
VISCA
1
9
1
9
RS-422
TALLY/CONTACT
RS-232C
!
DC 12V
LAN
EXT SYNC IN
TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT
SDI 1
OSD
LAN
SDI 2
2
3
4 5 6 7
8
1
MONITOR OUT
HDMI OUT
SDI 1
SDI 2
IN
SYSTEM
SELECT
IR SELECT
CAMERA SETUP
1 2
3
VISCA RS - 422 OUT
12V
RS-422 conversion cable
MODE
VISCA
1
9
1
9
RS-422
TALLY/CONTACT
RS-232C
!
DC 12V
LAN
EXT SYNC IN
TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT
SDI 1
OSD
LAN
SDI 2
2
3
4 5 6 7
8
1
MONITOR OUT
HDMI OUT
SDI 1
SDI 2
IN
SYSTEM
SELECT
IR SELECT
CAMERA SETUP
1 2
3
VISCA RS - 422 OUT
12V
EXT SYNC IN
TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT
SDI 1
OSD
LAN
SDI 2
2
3
4 5 6 7
8
1
MONITOR OUT
HDMI OUT
SDI 1
SDI 2
IN
SYSTEM
SELECT
IR SELECT
CAMERA SETUP
1 2
3
VISCA RS - 422 OUT
12V
EXT SYNC IN
TERMI-
NATION
ON OFF
ON
ON
OFF
LINE OUT
SDI 1
OSD
LAN
SDI 2
2
3
4 5 6 7
8
1
MONITOR OUT
HDMI OUT
SDI 1
SDI 2
IN
SYSTEM
SELECT
IR SELECT
CAMERA SETUP
1 2
3
VISCA RS - 422 OUT
12V
RS-422 conversion cable
Network cable
(commercially available)
Network cable
(commercially available)
