19
9-2

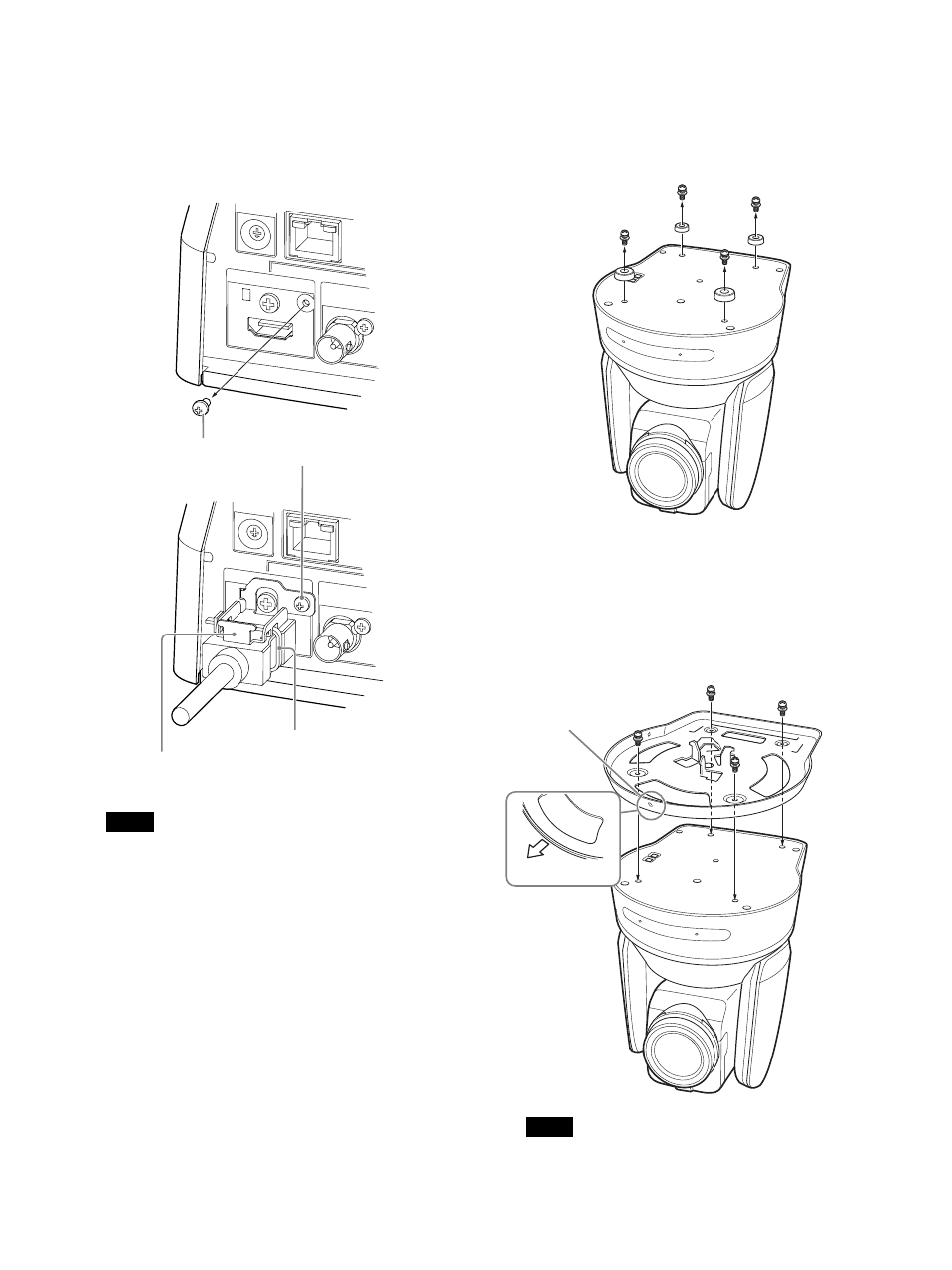

To help prevent the HDMI cable from being
pulled out, remove the HDMI cable locking
screw (M2.6×6, black), and use it to attach
the supplied HDMI cable fixing plate to the
back of the camera. Secure the HDMI cable
with a commercially available tie-wrap.
Do not leave the HDMI cable attached to the camera
if you do not use it.
10
Flip the SONY nameplate and 4K or HD
nameplate around as necessary.
How to remove the camera
1
Remove the three screws which secured the
camera in Step 8 of “Installing the camera
on the ceiling (example)”.
2
Turn the camera unit counter-clockwise to
remove it.
Installing the camera on a shelf located
at a high spot (example)
1
Loosen the four screws at the bottom of the
camera to remove the four feet.
2
Attach the ceiling bracket (A) to the bottom
of the camera by using supplied four
screws (
3 M3×8).
Align the a mark of the bracket (A) with the front
of the camera as illustrated, with the screw holes of
the bracket aligned to the screw holes of the camera.
Use the supplied screws. Otherwise, you may break
the internal parts of the camera.
Note
HDMI cable locking screw (M2.6×6, black)
HDMI cable fixing plate
(supplied)
Tie-wrap (commercially
available)
Note
Front of the
camera
Ceiling
bracket (A)
3 M 3 × 8 (supplied)
a mark
