User’s Manual of SGSW-24040 / 24240 Series
131
Buttons
: Click to add new VLAN.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
: Refreshes the displayed table starting from the "VLAN ID" input fields.
: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.
: Updates the table, starting with the entry after the last entry currently displayed.
4.6.6 VLAN Membership Status for User Static
This page provides an overview of membership status for VLAN users. The VLAN Membership Status for User Static screen in
Figure 4-6-4 appears.

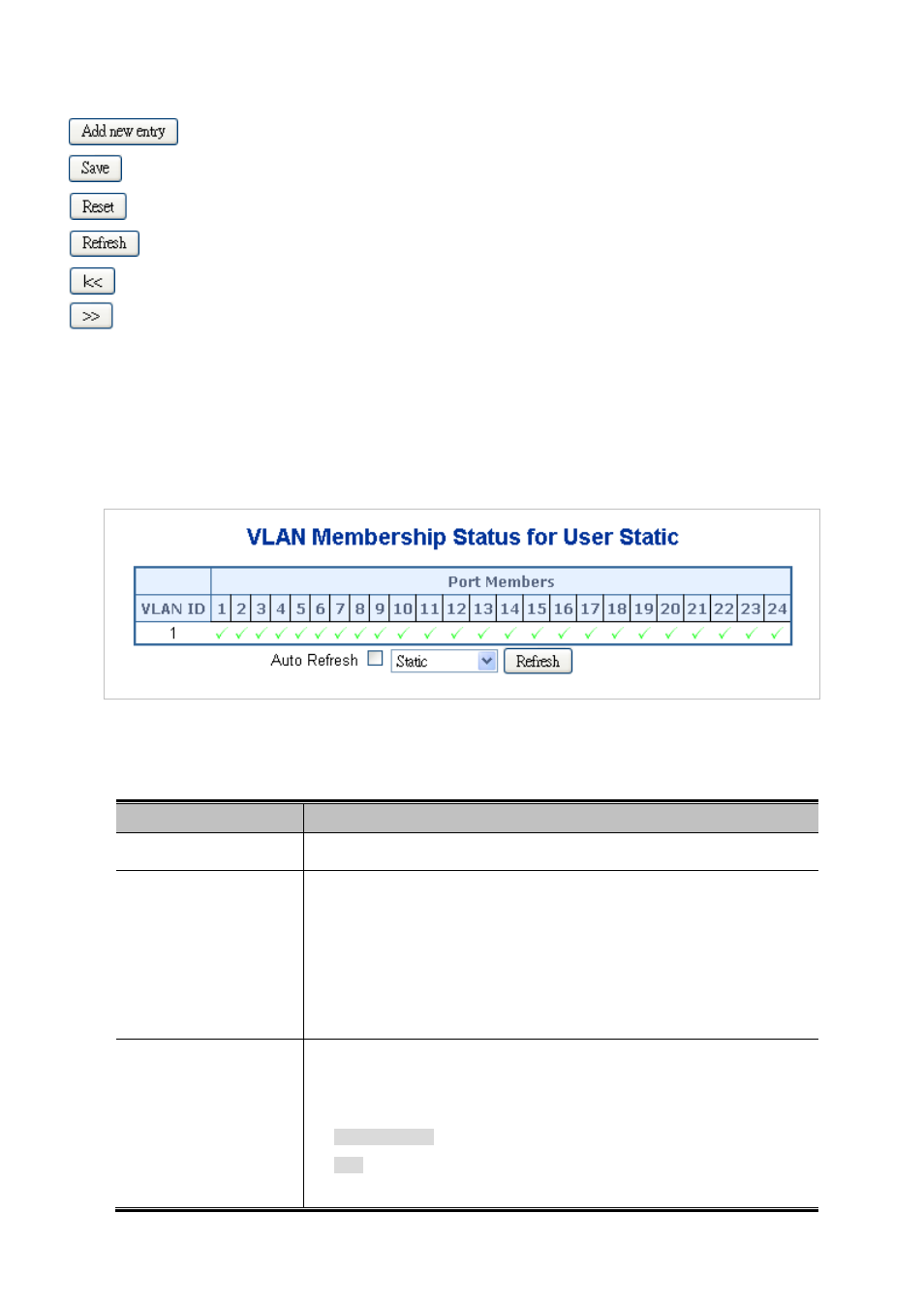

Figure 4-6-4 VLAN Membership Status for User Static page screenshot
The page includes the following fields:
Object Description
•
VLAN ID Indicates the ID of this particular VLAN.
•
Port Members The VLAN Membership Status Page shall show the current VLAN port members
for all VLANs configured by a selected VLAN User (selection shall be allowed by
a Combo Box). When ALL VLAN Users is selected, it shall show this information
for all the VLAN Users, and this is the default. VLAN membership allows the
frames Classified to the VLAN ID to be forwarded to the respective VLAN
member ports.
•
VLAN User A VLAN User is a module that uses services of the VLAN management
functionality to configure VLAN memberships and VLAN port configuration such
as PVID, UVID. Currently we support following VLAN :
- CLI/Web/SNMP : This are reffered as static.
- NAS : NAS provides port-based authentication, which involves
communications between a Supplicant, Authenticator, and an Authentication
