Emerson Liebert Xtreme Density - Manual (Page 66)

Liebert XD Cooling Modules—Liebert XDO, Liebert XDV, Liebert XDH and Liebert XDCF
60

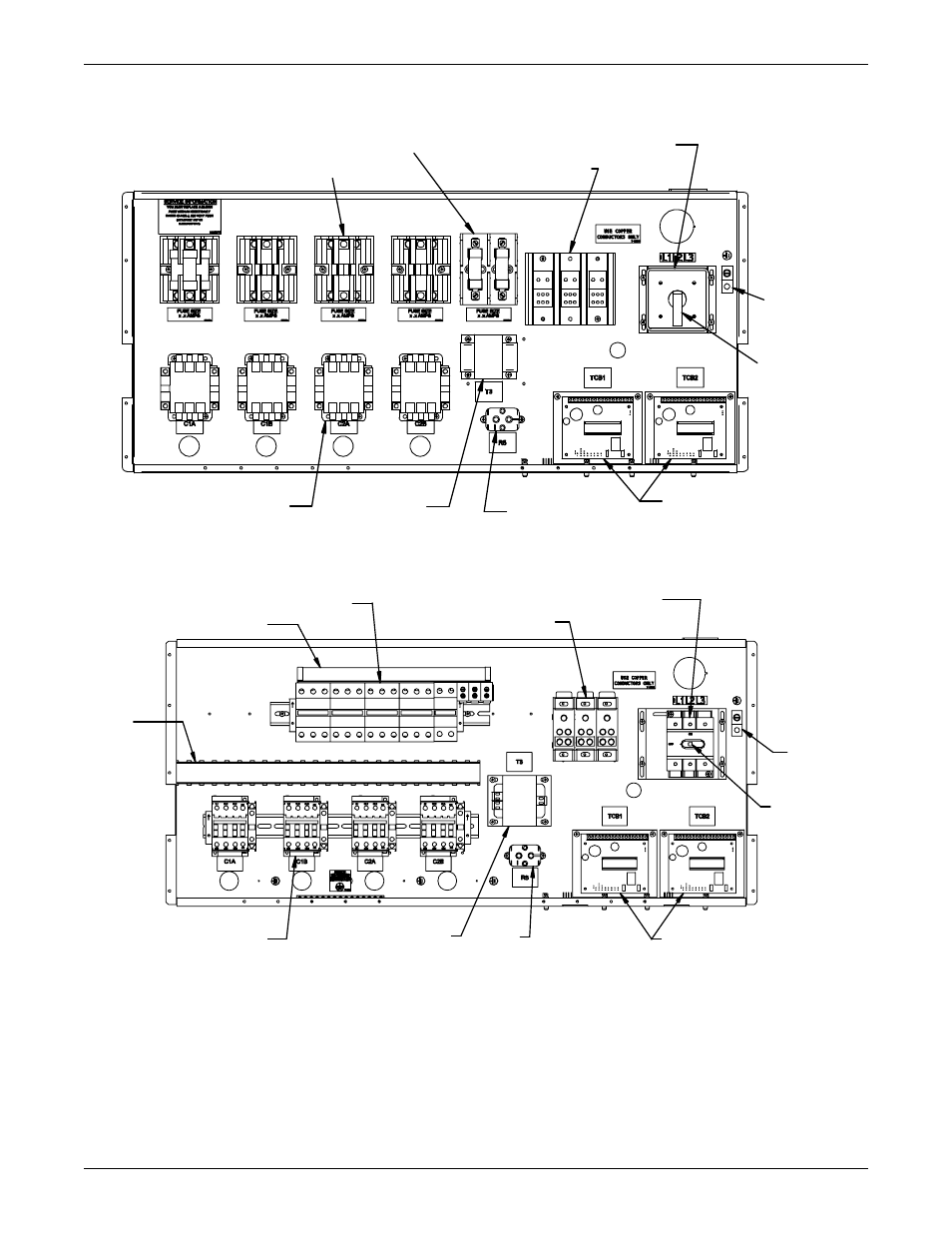

Figure 62 Liebert XDC high voltage connections—primary disconnect switch, 60Hz models
Figure 63 Liebert XDC high voltage connections—primary disconnect switch, 50Hz models
Transformer Fuse Block
Compressor Fuse Blocks
Customer Power Connection
Ground
Lug
Primary
Disconnect
Switch
Primary Power Block
Electronic Hot Gas
Bypass Controllers
Relay
Compressor Contactors Transformer 3
Compressor
Circuit Breakers
Compressor
Contactors Transformer 3
Wire
Raceway
Relay
Ground
Lug
Customer
Power
Connection
Primary Power Block
Primary
Disconnect
Switch
Electronic Hot Gas
Bypass Controllers
Busbar
