Liebert XD Cooling Modules—Liebert XDO, Liebert XDV, Liebert XDH and Liebert XDCF
38

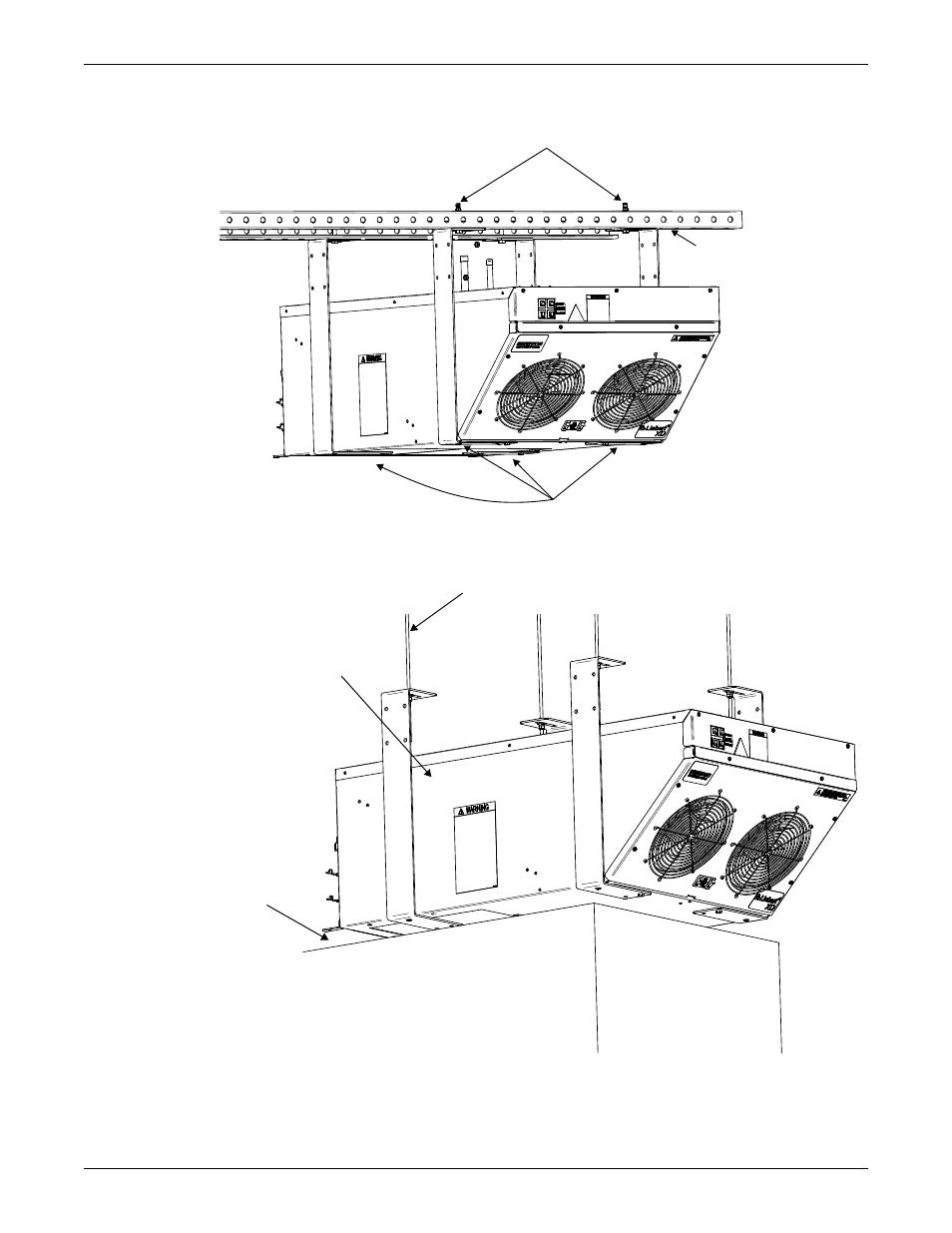

Figure 36 Suspending single Liebert XDV from Unistruts
Figure 37 Suspending single Liebert XDV from the roof structure
Unistrut
(field-supplied)
Bolt 3/8 " -16; nut and
washer provided in kit
Bolt a bracket to each
corner of the XDV
3/8 " -16 all-thread bolts,
field-supplied, typical
To prevent bypass air
from recirculating
through the XDV without
it passing through the
cabinet, this space
between the hanging
XDV and the cabinet
must be blocked.
Hanging XDV unit
