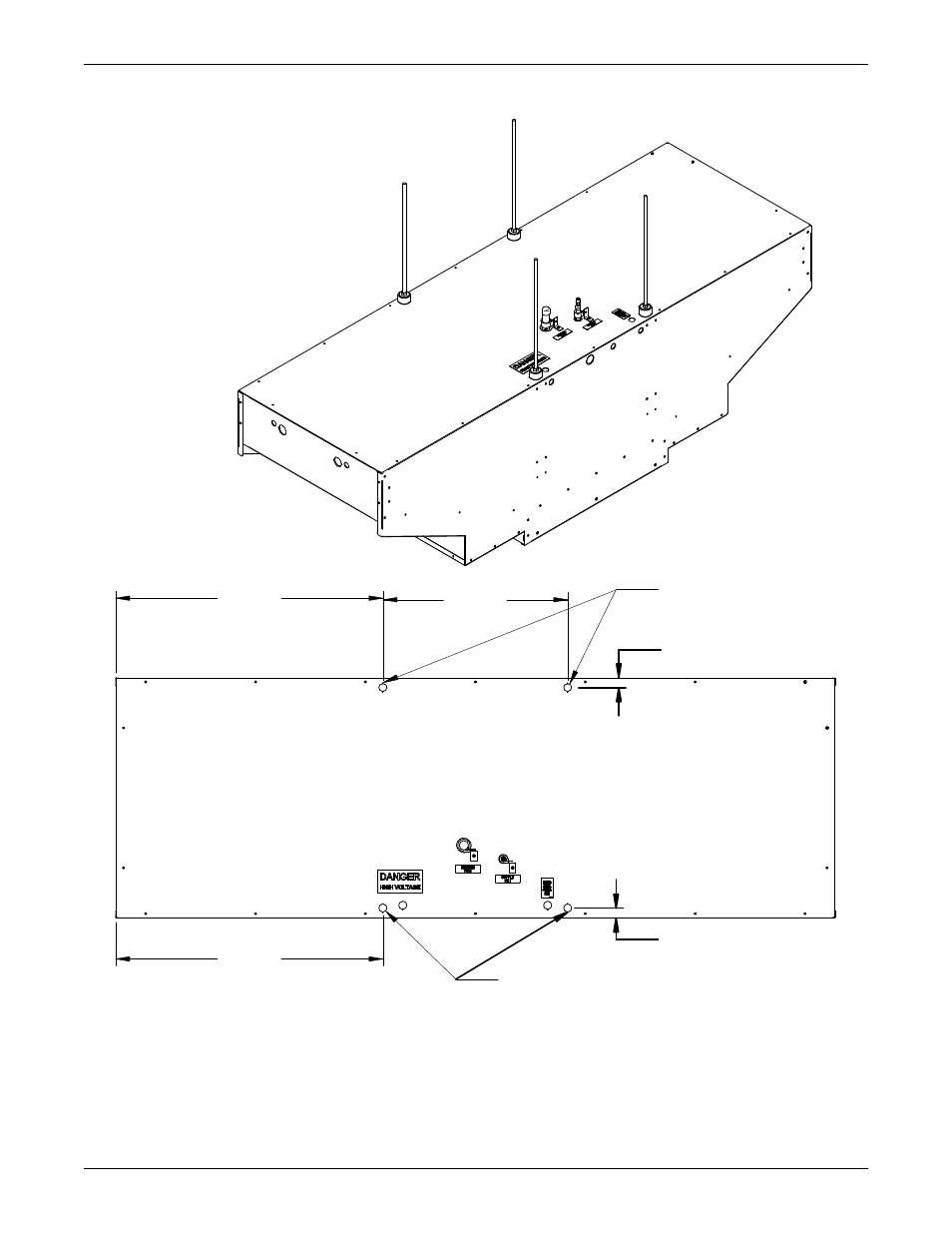

Figure 30 Liebert XDO internal mounting location
DPN000771
Pg. 5 Rev. 3
7/8" (22mm)
diameter mounting
holes
7/8" (22mm)
diameter mounting
holes
1"
(25mm)
26-3/4"
(679mm)
26-3/4"
(679mm)
18-1/2"
(470mm)
FRONT OF XDO
TOP VIEW
REAR OF XDO
1"
(25mm)
