Liebert XD Cooling Modules—Liebert XDO, Liebert XDV, Liebert XDH and Liebert XDCF
50

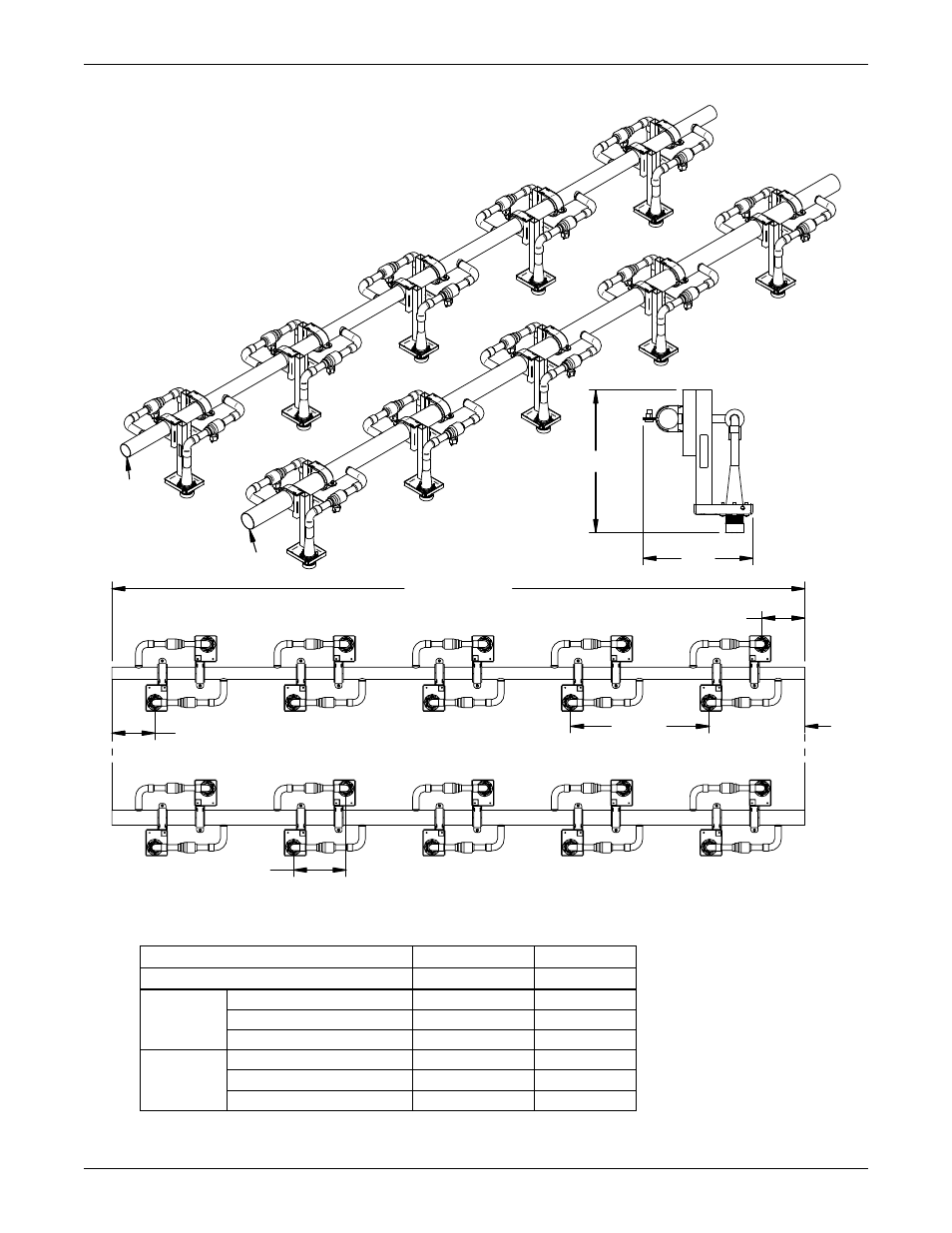

Figure 49 Ten-port prefabricated piping for Liebert XD cooling modules
Table 21 Ten-port prefabricated piping legend
Branch Piping Standard Run Long Run *
Ten Port 186650G51 186553G51
Supply
inch (mm)
Outside Diameter (ODS) 1-1/8 1-3/8
Height (H) 8-3/4 (222) 8-3/4 (222)
Length (L) 6-3/4 (171) 6-7/8 (175)
Return
inch (mm)
Outside Diameter (ODR) 2-1/8 2-5/8
Height (H) 10-1/2 (267) 10-1/2 (267)
Length (L) 8-3/4 (222) 9-1/8 (232)
* Pipe runs greater than 60 equivalent feet
DPN000773
Page 4, Rev. 3 Return
Supply
H
L
ODS
ODR
Ref.
120"
(3048mm)
Ref. Typ.
Ref. Typ.
Ref. Typ.
Ref. Typ.
7-7/16"
(189mm)
7-7/16"
(189mm)
9-1/16"
(230mm)
16-9/16"
(421mm)
24"
(610mm)
