Liebert XD Cooling Modules—Liebert XDO, Liebert XDV, Liebert XDH and Liebert XDCF
53

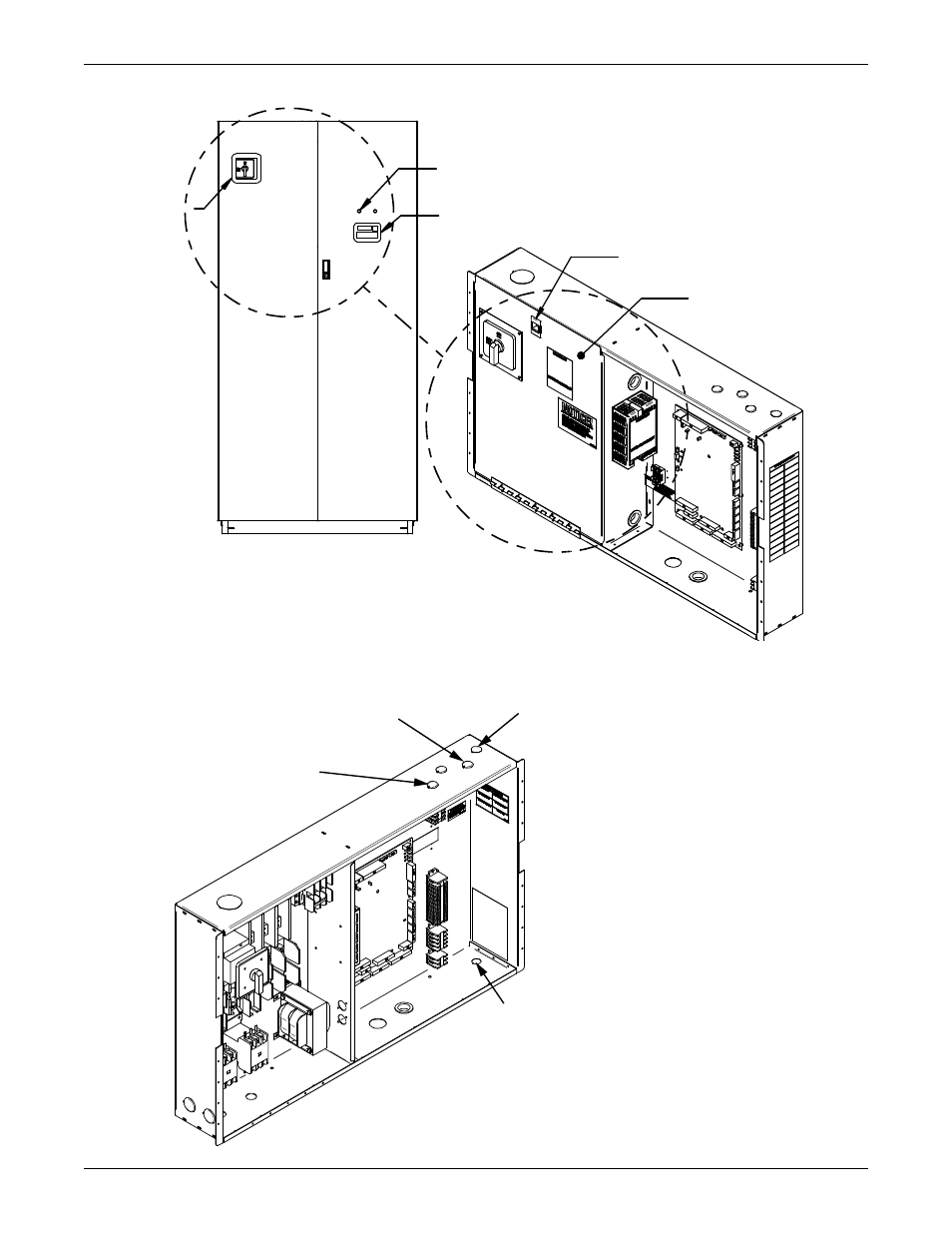

Figure 52 Front view of Liebert XDP and electrical enclosure
Figure 53 Liebert XDP electrical enclosure knockout locations for field wiring
Disconnect
Switch
Status Lamps
User Interface
Front of Liebert XDP
Enclosure Cover
Latch
Hazardous Voltage
Enclosure Cover
Liebert XD Module Condensate
Connections (optional;
depends on features
supplied with Liebert XD Module)
User Interface
(Wall Box) Wiring
Temperature/Humidity
Sensor Wiring
Alternate Knockout
for Temperature/Humidity
Sensor Wiring
Enclosure Cover Not Shown for Clarity
