7-14 SVC08-1111
JQE 150-1.5MVPY-26956 ASSEMBLY A4 (Figure 7-6) CODE: 2362737
REFERENCE
DESIGNATOR
QTY. DESCRIPTION
MFRS. NAME & PART NO.
(SEE BOTTOM NOTE)
KEPCO
PART NO.
REC. SPARE
PART QTY.
NOTE: REPLACEMENT PARTS MAY BE ORDERED FROM KEPCO, INC. ORDERS SHOULD INCLUDE KEPCO PART NUMBER AND DESCRIPTION.
PLEASE NOTE: THE MANUFACTURER'S NAME AND PART NUMBER LISTED FOR EACH ITEM ON REPLACEMENT PARTS LISTS REPRESENTS
AT LEAST ONE SOURCE FOR THAT ITEM AND IS LISTED SOLELY FOR THE CONVENIENCE OF KEPCO EQUIPMENT OWNERS IN OBTAINING
REPLACEMENT PARTS LOCALLY. WE RESERVE THE RIGHT TO USE EQUIVALENT ITEMS FROM ALTERNATE SOURCES. KEPCO, INC.
KEPCO REPLACEMENT PARTS LIST

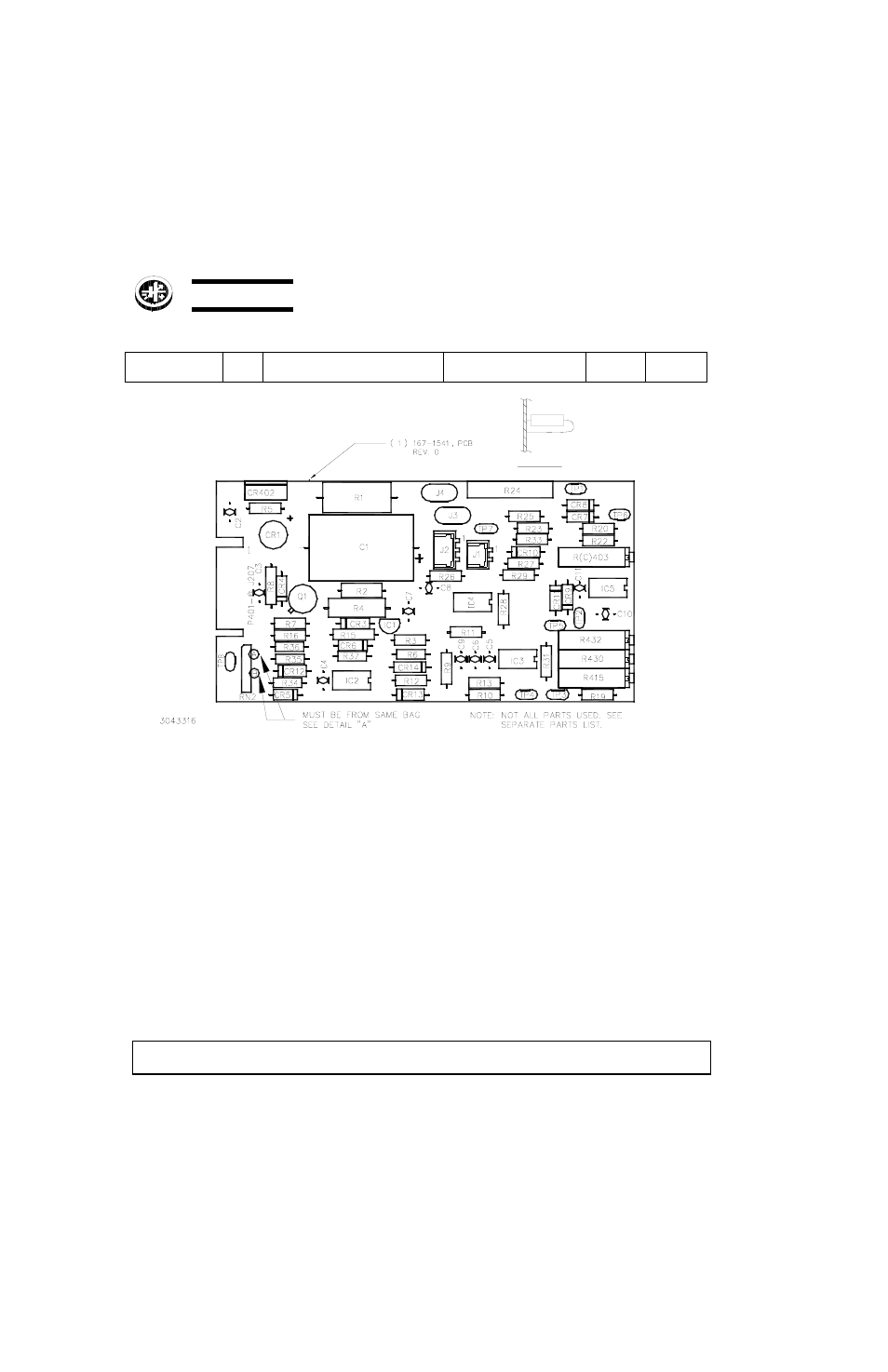

FIGURE 7-6. JQE 150-1.5-26956 A4 ASSEMBLY, COMPONENT LOCATIONS
CR1 1 RECT., ENCAPSULATED BRIDGE,
200V 1A FAIRCHILD
W02G 124-0346 1
CR3 1 DIODE, ZENER,
15V, 5% AMERICAN POWER
1N4744A 121-0057 1
CR4, CR6 2 DIODE, ZENER,
4.7V, 5% PHILIPS SEMICON
1N4732A 121-0091 1
CR10 1 DIODE, ZENER,
6.5V, 5% AMERICAN POWER
1N763-1 121-0028 1
CR9, CR11, CR12,
CR13 4 RECT., SI RECTIFIER,
SCHOTTKY, AX. LDS. 40V, 1A ON SEMICONDUCTOR
1N5819RLG 124-0578 1
CR14 1 DIODE, CURRENT REGULATOR,
1N5297, 100 V, 0.6A CENTRAL SEMICON
CCL0750 121-0083 1
CR402 1 RECT., THYRISTOR (SCR),
200V, 8A CENTRAL SEMICON
CS220-8B 124-0350 1
DETAIL "A"
