2-2
JQE SPECIAL SVC 081111
b) Rear Panel: Refer to Figure 2-2 and Table 2-3.

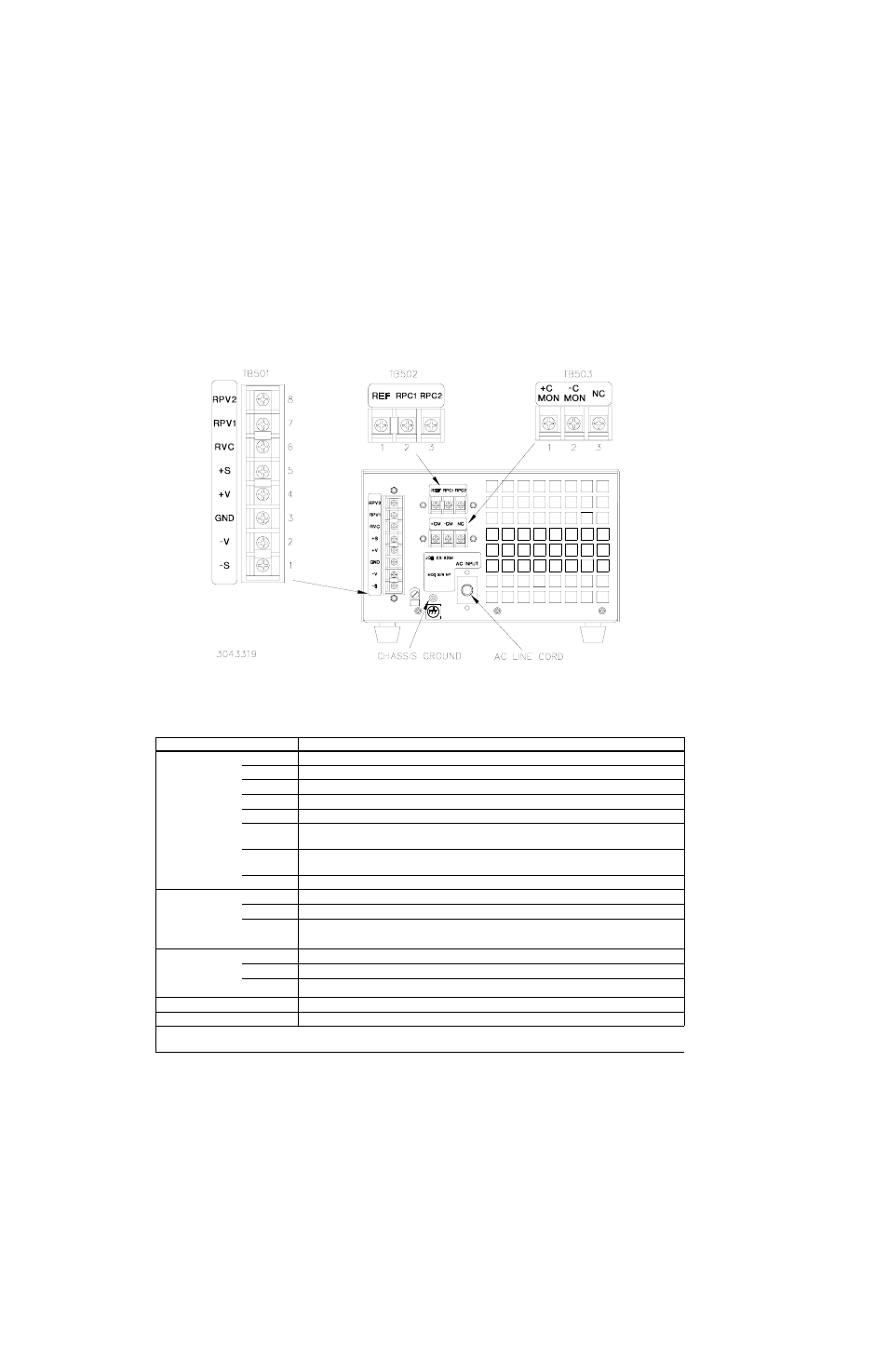

FIGURE 2-2. REAR PANEL TERMINATIONS, JQE SPECIAL MODELS
TABLE 2-2. REAR PANEL TERMINATION FUNCTIONS
TERMINATION FUNCTION
TB501 8-terminal
terminal block
(Output, Sense
and Remote
Voltage Control
connections)
(1) –S Output Sense (–)
(2) –V Power Output (–)
(3) GND Chassis Ground
(4) +V Power Output (+)
(5) +S Output Sense (+)
(6) RVC Resistive Voltage Control: Connected to one end of front panel VOLTAGE control
potentiometer
(7) RPV1 Remote Programming Voltage Control (1) is the null (summing junction) for the voltage loop:
Used for external (remote) resistive control.
(8) RPV2 Remote Programming Voltage Control (2): Used for external (remote) resistive control.
TB 502 3-terminal
terminal block
(Remote Current
Programming
connections)
(1) REF Reference: Summing junction for current limit control "B."
(2) RPC1 Remote Programming Current 1: Internal and external (remote) resistive control 1.
(3) RPC2 Remote Programming Current 2: Internal and external (remote) resistive control 2.
TB 503 3-terminal
terminal block
(Current Monitor
connections)
(1) +CM Current Monitor (+) Positive terminal for current monitor (voltage) signal.
(2) –CM Current Monitor (–) Negative terminal for current monitor (voltage) signal.
(3) NC Not Connected.
Chassis Ground EARTH - GND must be connected to this stud to ensure safe operation of the unit.
AC Line Cord Three-wire, single phase safety line cord.
NOTE: JQE Specials are shipped with links in place connecting the following pairs of terminals:
RPV1 and RVC, +S and +V, –S and –V on TB501 and REF and RPC1 on TB502.
