JQE 150-1.5MVPY-26956 ASSEMBLY A3A2 (Figure 7-5) CODE: 2361762
REFERENCE
DESIGNATOR
QTY. DESCRIPTION
MFRS. NAME & PART NO.
(SEE BOTTOM NOTE)
KEPCO
PART NO.
REC. SPARE
PART QTY.
NOTE: REPLACEMENT PARTS MAY BE ORDERED FROM KEPCO, INC. ORDERS SHOULD INCLUDE KEPCO PART NUMBER AND DESCRIPTION.
PLEASE NOTE: THE MANUFACTURER'S NAME AND PART NUMBER LISTED FOR EACH ITEM ON REPLACEMENT PARTS LISTS REPRESENTS AT
LEAST ONE SOURCE FOR THAT ITEM AND IS LISTED SOLELY FOR THE CONVENIENCE OF KEPCO EQUIPMENT OWNERS IN OBTAINING
REPLACEMENT PARTS LOCALLY. WE RESERVE THE RIGHT TO USE EQUIVALENT ITEMS FROM ALTERNATE SOURCES. KEPCO, INC.
JQE 26956 SVC 08-1111 7-13
KEPCO REPLACEMENT PARTS LIST

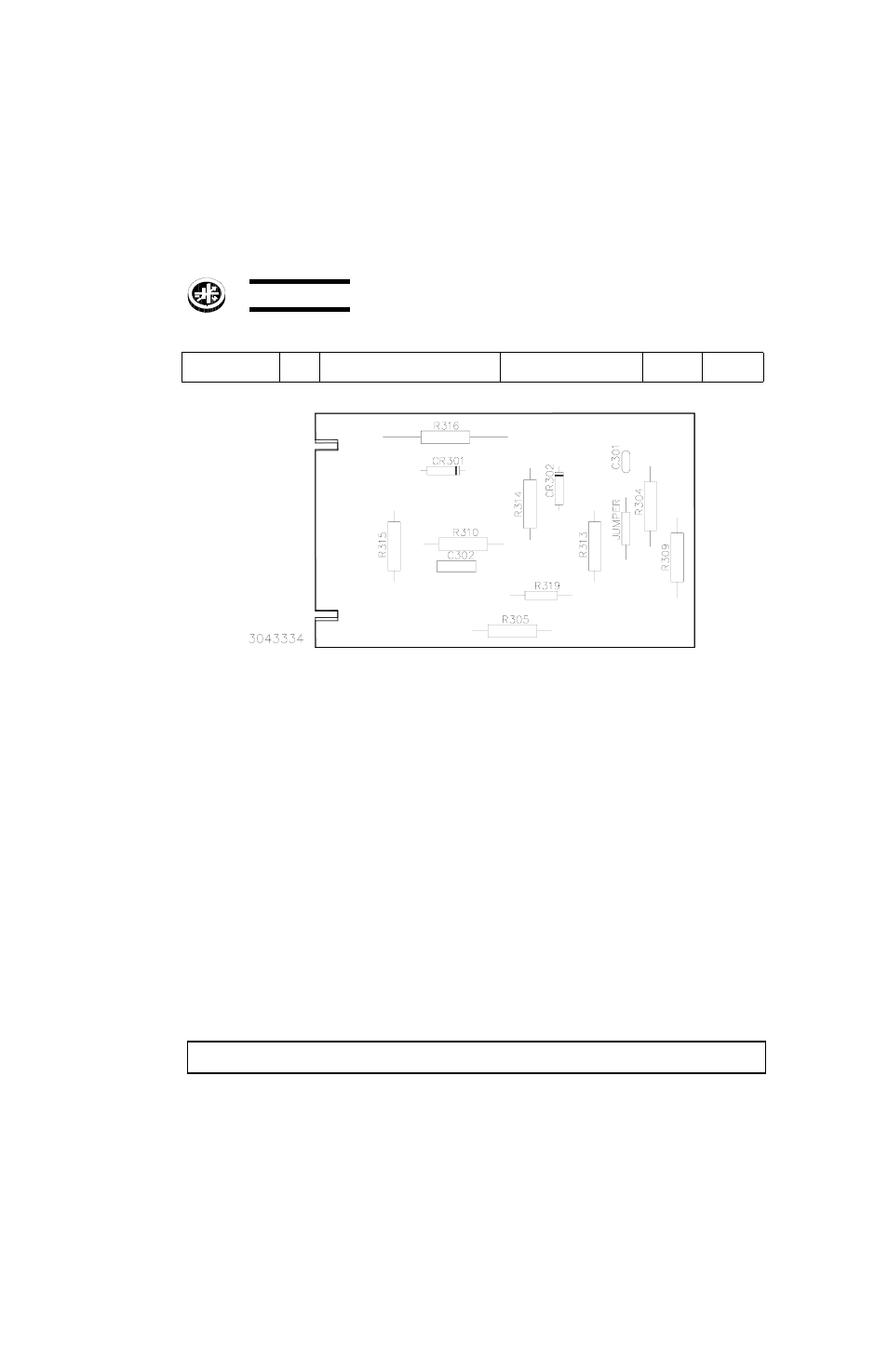

FIGURE 7-5. JQE 150-1.5MVPY-26956 A3A2 ASSEMBLY, COMPONENT LOCATIONS
CR301 1 DIODE, ZENER,
5.6V, 5% AMERICAN POWER DEV
1N752A 121-0066 1
CR302 1 RECT., SWITCHING DIODE,
75V 0.4A AMERICAN POWER
1N4148-AMMO 124-0437 1
C301 1 CAP., MYLAR FILM,
500PF, 10%, 200V CORNELL DUBILIE
WMC2D15K 117-0950 1
C302 1 CAP., MYLAR FILM,
6800PF, 10%, 200V AMERICAN SHIZUK
663 0.0068 +/-10% 200VDC 117-0552 1
R304, R305, R309,
R310 4 RES., FIX., POWER, AX. LEADS,
1 OHM , 3W, 5% VISHAY DALE
CW02B1R000JS70 115-0499 1
R313, R314 2 RES., FIX., POWER, AX. LEADS,
6.8 KOHM , 3W, 5% VISHAY DALE
CW-2B 6.8K 5% B12 115-1284 1
R315 1 RES., FIX., CARBON FILM,
330 OHM , 1/2W, 5% YAGEO
CFR-50JTJ52330R 115-0804 1
R316 1 RES., FIX., POWER, AX. LEADS,
8 KOHM , 3W, 3% VISHAY DALE
CW-2B-8000OHM-3% 115-1652 1
R319 1 RES., FIX., CARBON FILM, 330
OHM , 1/4W, 5% IRC, INC.
CF 1/4-331-J 115-2233 1
