JQE SPECIAL SVC 081111
2-1
SECTION 2 - INSTALLATION
2.1 UNPACKING AND INSPECTION
This instrument has been thoroughly inspected and tested prior to packing and is ready for
operation. After careful unpacking, inspect for shipping damage before attempting to operate.
Perform the preliminary operational check as outlined in PAR. 2.5. If any indication of damage is
found, file an immediate claim with the responsible transport service.
2.2 TERMINATIONS
a) Front Panel: Refer to Figure 2-1 and Table 2-1.

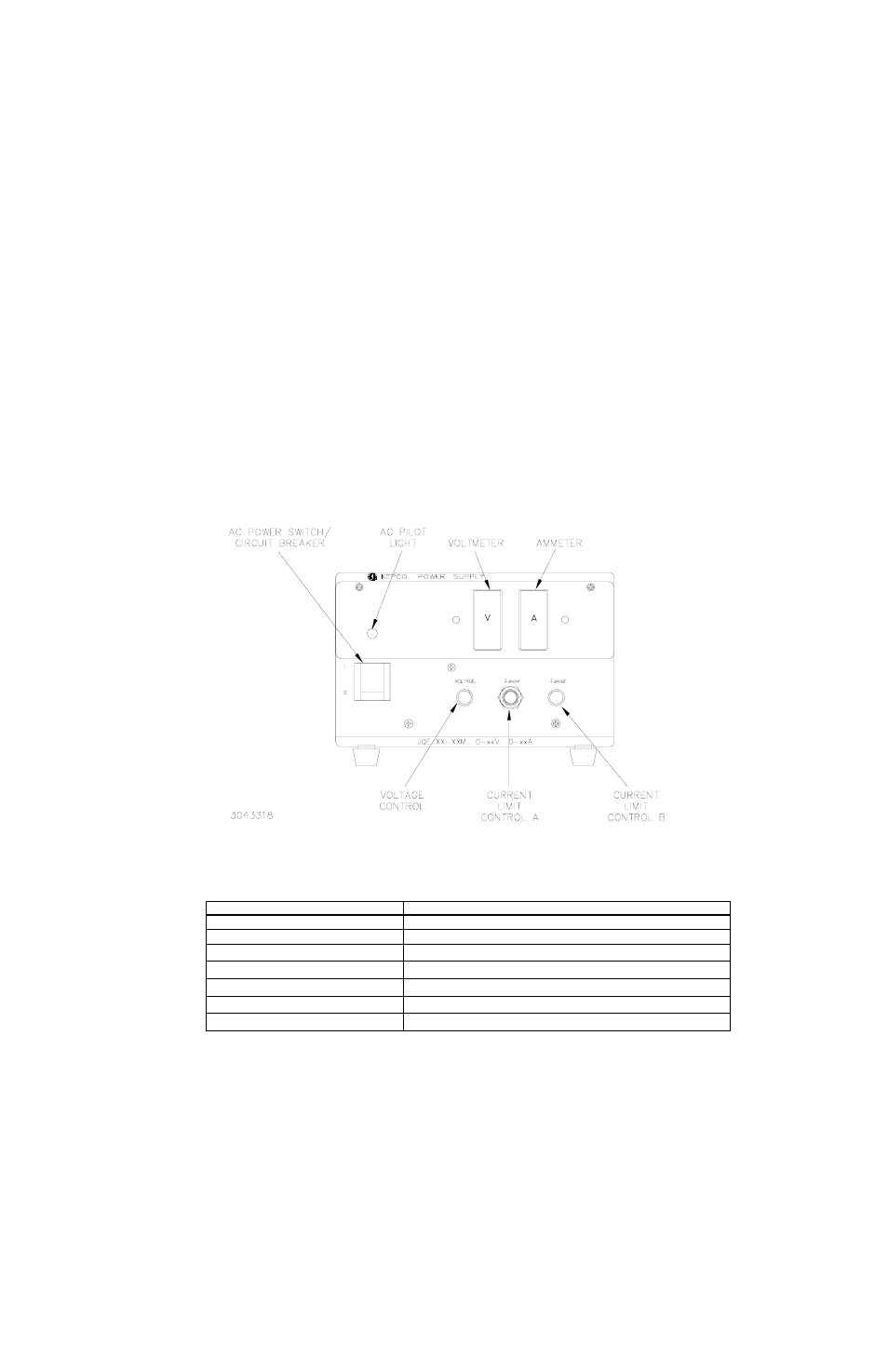

FIGURE 2-1. FRONT PANEL CONTROLS AND INDICATORS, JQE SPECIAL MODELS
TABLE 2-1. FRONT PANEL CONTROLS AND INDICATOR FUNCTIONS
CONTROL OR INDICATOR FUNCTION
AC POWER CIRCUIT BREAKER Turns a-c power to unit ON or OFF and protects power supply input circuitry.
AC PILOT LIGHT Energizes when unit is turned ON and a-c power is applied to the unit.
VOLTMETER Monitors output voltage 0 to EO max.
AMMETER Monitors output current 0 to IO max. "A"
VOLTAGE CONTROL Adjusts output voltage from 0 to EO max.
CURRENT LIMIT CONTROL "A" Adjusts current limit A from 10% to 100% of IO max. "A"
CURRENT LIMIT CONTROL "B" Adjusts current limit B from 1.0% to 105% of IO max. "B"
